Kubota L3901-2WD
The Kubota L3901-2WD is a utility tractor built for everyday farm tasks. It has a 2WD drive system and power steering, making it easy to handle. The tractor uses a manual transmission with 8 forward and 8 reverse gears, giving drivers good control over speed and power. Under the hood, this Kubota has a 3-cylinder diesel engine that makes 37.5 hp. The engine is water-cooled and has average displacement for its class. It's designed to run at high speeds, with a very high rated RPM of 2700. The tractor is compact, measuring 110.7 inches long, 55.2 inches wide, and 92.4 inches tall. It weighs 2590.5 lb, which is lighter than many other tractors in its category. The L3901-2WD has a three-point hitch at the back, able to lift up to 1433.1 lb. This lifting power is about average for similar tractors. The tractor also has wet disc brakes for reliable stopping power.
ManufacturerKubotaPower37.5 hpEngine3-cylTransManual with synchronized shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 38hp
- Operating Weight
- 2,590.5 lb
- Transmission
- Manual with synchronized shuttle
At a glance
How the L3901-2WD compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
37.5 hp · 31st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L3901-2WD ranks at the 31st percentile for engine power among recorded utility tractors.
Overview
About the Kubota L3901-2WD
The Kubota L3901-2WD is a utility tractor built for everyday farm tasks. It has a 2WD drive system and power steering, making it easy to handle. The tractor uses a manual transmission with 8 forward and 8 reverse gears, giving drivers good control over speed and power. Under the hood, this Kubota has a 3-cylinder diesel engine that makes 37.5 hp. The engine is water-cooled and has average displacement for its class. It's designed to run at high speeds, with a very high rated RPM of 2700. The tractor is compact, measuring 110.7 inches long, 55.2 inches wide, and 92.4 inches tall. It weighs 2590.5 lb, which is lighter than many other tractors in its category. The L3901-2WD has a three-point hitch at the back, able to lift up to 1433.1 lb. This lifting power is about average for similar tractors. The tractor also has wet disc brakes for reliable stopping power.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | L3901-2WD |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 2,590.5lb |
Engine
| Make | Kubota |
|---|---|
| Model | D1803-CR-E4 |
| Power | 37.5hp |
| Cylinders | 3 |
| Displacement | 111.4ci |
| Bore | 3.5in |
| Stroke | 4.1in |
Transmission
| Type | Manual with synchronized shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Brakes | Mechanical wet disc |
Dimensions
| Length | 110.7in |
|---|---|
| Width | 55.2in |
| Height | 92.4in |
| Operating weight | 2,590.5lb |
Capacities
| Cooling system | 1.6gal |
|---|
Head to head
L3901-2WD vs. Utility median
How the Kubota L3901-2WD compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 37.5 hp | 55 hp | -32% | 31st |
| Engine Displacement | 111 ci | 183 ci | -39% | 26th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 2,591 lb | 5,303 lb | -51% | 18th |
| Length | 111 in | 137 in | -19% | 17th |
| Width | 55.2 in | 66 in | -16% | 28th |
| Height | 92.4 in | 94.1 in | -2% | 46th |
| 3-Point Hitch Capacity | 1,433 lb | 3,197 lb | -55% | 14th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota L3901 | 37.5 hp | 2,778 lb | 2014+ | Compare → |
| Kubota L3901-4WD | 37.5 hp | 2,766.9 lb | — | Compare → |
| Kubota L3901-HST | 37.5 hp | 2,777.9 lb | — | Compare → |
| Kubota L3902 | 37.5 hp | 2,767 lb | — | Compare → |
| Kubota KL380 Hi-Speed | 37.4 hp | 3,351 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D15 | 37.44 hp | 4,036 lb | — | Compare → |
| Avery 20-35 | 37.33 hp | 7,550 lb | 1923+ | Compare → |
| Allis Chalmers D14 | 37 hp | 3,500 lb | 1957–1960 | Compare → |
| Antonio Carraro Tigre 4000F | 38 hp | 2,756 lb | — | Compare → |
| Antonio Carraro TTR 4400 | 38 hp | 2,811 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

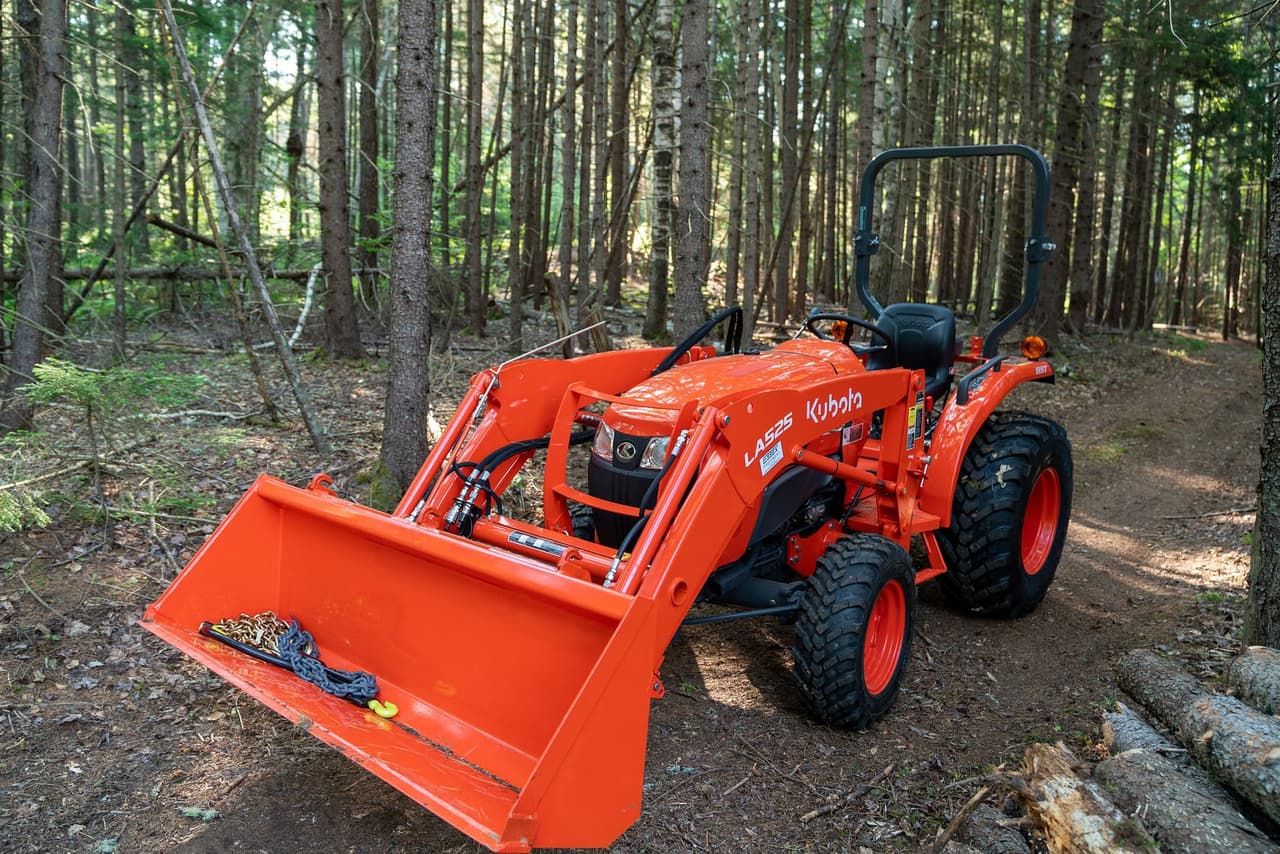

Kubota L3901-2WD photos
FAQ
Common questions
How powerful is the Kubota L3901-2WD?
The Kubota L3901-2WD has an engine power output of 37.5 hp. It is powered by a 3-cylinder engine displacing 111.4 ci.
What three-point hitch category does the Kubota L3901-2WD use?
The Kubota L3901-2WD has a Category I three-point hitch rated to lift 1,433.1 lb.
What is the working weight of the Kubota L3901-2WD?
The operating weight of the Kubota L3901-2WD is approximately 2,590.5 lb.
What type of transmission does the Kubota L3901-2WD have?
The Kubota L3901-2WD uses a Manual with synchronized shuttle transmission offering 8 forward gears.
What routine service does the Kubota L3901-2WD need?
Regular maintenance for the Kubota L3901-2WD includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
