Kubota L405
The Kubota L405 is a utility tractor built for farmers who need a reliable machine. It has a 2WD chassis and power steering, making it easy to drive. The tractor comes with a 16-forward and 4-reverse gear transmission, giving drivers lots of options for different tasks. Under the hood, the L405 has a Kubota V1902 diesel engine. This engine has 4 cylinders and produces 40 hp at 2600 rpm, which is average power for its class. It's cooled by liquid and doesn't use a turbocharger. The tractor weighs 3219 lb and can lift up to 2645 lb with its Category I hitch, which is above average for its size. It has a live PTO that spins at 540 rpm, useful for running various attachments. The L405 has an open operator station with a roll-over protection system for safety. Its compact size, measuring 142.5 inches long and 60.6 inches wide, makes it good for working in tight spaces.
ManufacturerKubotaPower40 hpEngine4-cylTransPartially synchronized
Quick specs
- Category
- Utility
- Engine Power Output
- 40hp
- Operating Weight
- 3,219 lb
- Transmission
- Partially synchronized
At a glance
How the L405 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
40 hp · 33rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L405 ranks at the 33rd percentile for engine power among recorded utility tractors.
Overview
About the Kubota L405
The Kubota L405 is a utility tractor built for farmers who need a reliable machine. It has a 2WD chassis and power steering, making it easy to drive. The tractor comes with a 16-forward and 4-reverse gear transmission, giving drivers lots of options for different tasks. Under the hood, the L405 has a Kubota V1902 diesel engine. This engine has 4 cylinders and produces 40 hp at 2600 rpm, which is average power for its class. It's cooled by liquid and doesn't use a turbocharger. The tractor weighs 3219 lb and can lift up to 2645 lb with its Category I hitch, which is above average for its size. It has a live PTO that spins at 540 rpm, useful for running various attachments. The L405 has an open operator station with a roll-over protection system for safety. Its compact size, measuring 142.5 inches long and 60.6 inches wide, makes it good for working in tight spaces.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | L405 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 3,219lb |
Engine
| Make | Kubota |
|---|---|
| Model | V1902 |
| Power | 40hp |
| Cylinders | 4 |
| Displacement | 113.6ci |
| Bore | 3.35in |
| Stroke | 3.23in |
Transmission
| Type | Partially synchronized |
|---|---|
| Forward gears | 16 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Integral type power steering |
| Brakes | Wet disc type |
| Cab | Open operator station with two-post ROPS |
Power take-off
| Rear PTO | Live |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 142.5in |
|---|---|
| Width | 60.6in |
| Height | 77.2in |
| Operating weight | 3,219lb |
Capacities
| Cooling system | 2.03gal |
|---|
Head to head
L405 vs. Utility median
How the Kubota L405 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 55 hp | -27% | 33rd |
| Engine Displacement | 114 ci | 183 ci | -38% | 27th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 3,219 lb | 5,303 lb | -39% | 26th |
| Length | 143 in | 137 in | +4% | 58th |
| Width | 60.6 in | 66 in | -8% | 38th |
| Height | 77.2 in | 94.1 in | -18% | 23rd |
| 3-Point Hitch Capacity | 2,645 lb | 3,197 lb | -17% | 34th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota GL-40 | 40 hp | 3,527 lb | 1991–1995 | Compare → |
| Kubota GL-400 | 40 hp | 3,990 lb | 1995–1998 | Compare → |
| Kubota L3250 | 40 hp | 2,750 lb | 1989–1990 | Compare → |
| Kubota L3602 | 40 hp | — | 1978–1985 | Compare → |
| Kubota L4060 | 40 hp | 3,737 lb | 2013+ | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models

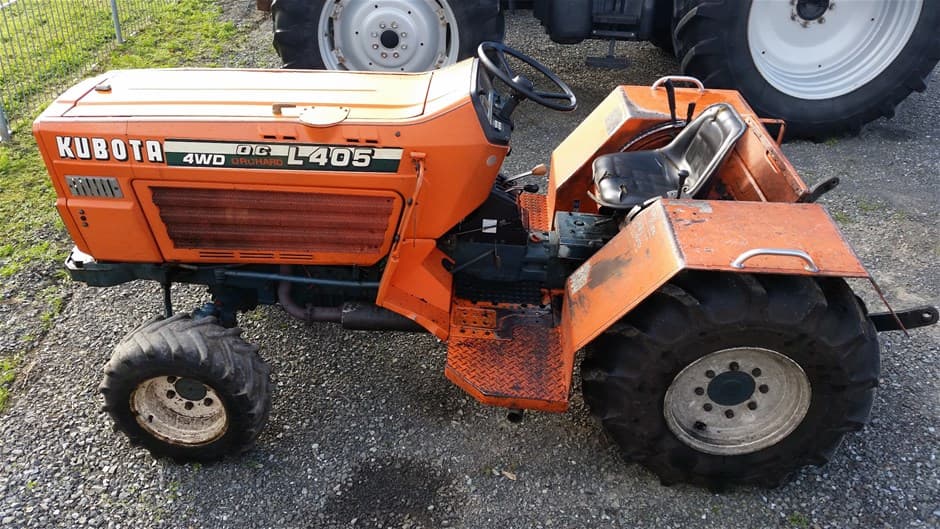

Gallery
Kubota L405 photos
FAQ
Common questions
How powerful is the Kubota L405?
The Kubota L405 has an engine power output of 40 hp. It is powered by a 4-cylinder engine displacing 113.6 ci.
What three-point hitch category does the Kubota L405 use?
The Kubota L405 has a Category I three-point hitch rated to lift 2,645 lb.
What is the working weight of the Kubota L405?
The operating weight of the Kubota L405 is approximately 3,219 lb.
What type of transmission does the Kubota L405 have?
The Kubota L405 uses a Partially synchronized transmission offering 16 forward gears.
What routine service does the Kubota L405 need?
Regular maintenance for the Kubota L405 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
