UtilityPerformance profile
Kubota L5740HST
The Kubota L5740HST is a utility tractor that packs a punch in a compact package. It features a turbocharged 4-cylinder Kubota E-TVCS engine with 59 hp, providing above-average power for its class. The tractor's HST plus 3 range transmission offers smooth operation with 3 forward and 3 reverse gears. This tractor is built for versatility and efficiency. It has a three-point hitch with category I & II compatibility and a very high hitch capacity of 2,976.3 lb. The L5740HST measures 126.6 inches long, 68.4 inches wide, and 102 inches tall, making it easy to maneuver in tight spaces. With a fuel capacity of 14.3 gallons and a max speed of 16.1 mph, this Kubota tractor is ready for long workdays. Its additional features, like a pump flow capacity of 14.7 gal/min and a tight turning radius of 9.2 ft, make it a reliable choice for various farming and utility tasks.
ManufacturerKubotaPower59 hpEngine4-cylTransHST plus 3 range
Quick specs
- Category
- Utility
- Engine Power Output
- 59hp
- Operating Weight
- 3,902.2 lb
- Transmission
- HST plus 3 range
At a glance
How the L5740HST compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
59 hp · 53rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L5740HST ranks at the 53rd percentile for engine power among recorded utility tractors.
Overview
About the Kubota L5740HST
The Kubota L5740HST is a utility tractor that packs a punch in a compact package. It features a turbocharged 4-cylinder Kubota E-TVCS engine with 59 hp, providing above-average power for its class. The tractor's HST plus 3 range transmission offers smooth operation with 3 forward and 3 reverse gears. This tractor is built for versatility and efficiency. It has a three-point hitch with category I & II compatibility and a very high hitch capacity of 2,976.3 lb. The L5740HST measures 126.6 inches long, 68.4 inches wide, and 102 inches tall, making it easy to maneuver in tight spaces. With a fuel capacity of 14.3 gallons and a max speed of 16.1 mph, this Kubota tractor is ready for long workdays. Its additional features, like a pump flow capacity of 14.7 gal/min and a tight turning radius of 9.2 ft, make it a reliable choice for various farming and utility tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | L5740HST |
| Category | Utility tractor |
| Operating weight | 3,902.2lb |
Engine
| Make | Kubota |
|---|---|
| Model | E-TVCS |
| Power | 59hp |
| Cylinders | 4 |
| Displacement | 148.5ci |
Transmission
| Type | HST plus 3 range |
|---|---|
| Forward gears | 3 |
| Reverse gears | 3 |
Dimensions
| Length | 126.6in |
|---|---|
| Width | 68.4in |
| Height | 102in |
| Operating weight | 3,902.2lb |
Head to head
L5740HST vs. Utility median
How the Kubota L5740HST compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 59 hp | 55 hp | +7% | 53rd |
| Engine Displacement | 149 ci | 183 ci | -19% | 37th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 3 | 12 | -75% | 3rd |
| Operating Weight | 3,902 lb | 5,303 lb | -26% | 36th |
| Length | 127 in | 137 in | -7% | 37th |
| Width | 68.4 in | 66 in | +4% | 56th |
| Height | 102 in | 94.1 in | +8% | 70th |
| 3-Point Hitch Capacity | 2,976 lb | 3,197 lb | -7% | 46th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota MZ60 | 59.2 hp | 5,313 lb | 2006–2009 | Compare → |
| Kubota MZ605 | 59.2 hp | 5,313 lb | 2010–2014 | Compare → |
| Kubota L5450 | 59.5 hp | 4,410 lb | — | Compare → |
| Kubota M5970 | 59.5 hp | 5,049 lb | — | Compare → |
| Kubota MX6000 | 59.5 hp | 3,734 lb | 2020+ | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT55A | 58.89 hp | 6,400 lb | — | Compare → |
| Allis Chalmers 6070 | 58.35 hp | 7,460 lb | — | Compare → |
| Barreiros R-500 B | 60 hp | — | — | Compare → |
| Belarus 406 | 58 hp | 7,056 lb | — | Compare → |
| Belarus 400A | 57 hp | 6,600 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

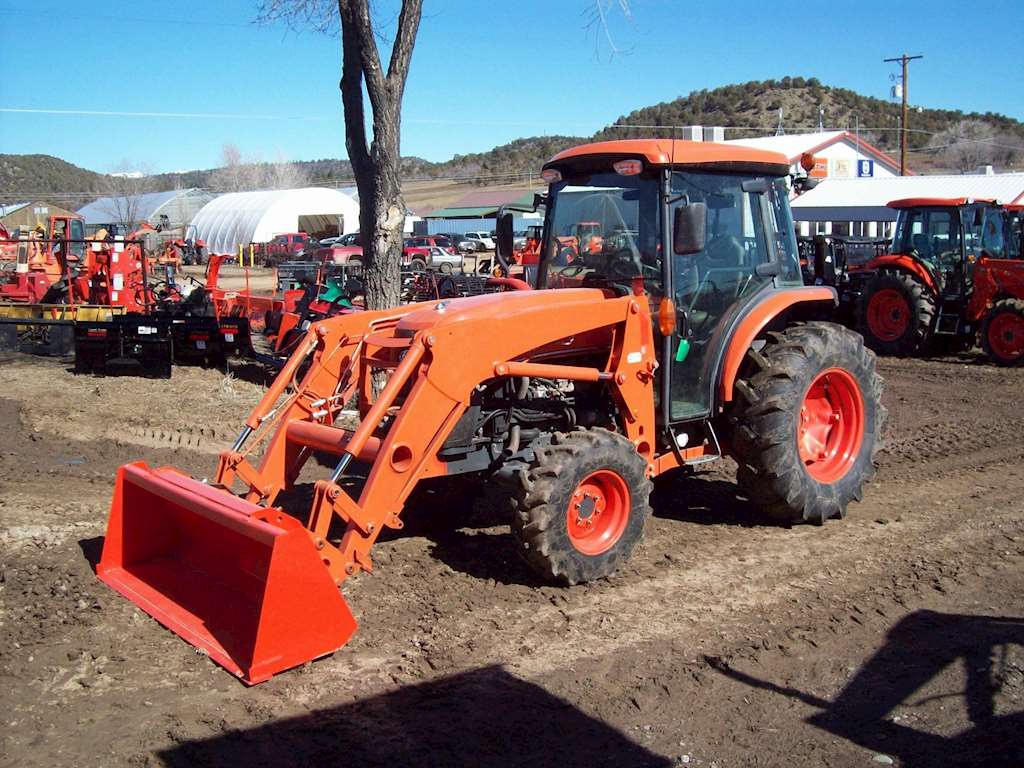

Kubota L5740HST photos
FAQ
Common questions
How much horsepower does the Kubota L5740HST have?
The Kubota L5740HST produces 59 hp from its 4-cylinder engine. Engine displacement is 148.5 ci.
How much does the Kubota L5740HST weigh?
The Kubota L5740HST weighs about 3,902.2 lb in operating condition.
What transmission is in the Kubota L5740HST?
Transmission on the Kubota L5740HST is HST plus 3 range, with 3 forward speeds.
What three-point hitch category does the Kubota L5740HST use?
The Kubota L5740HST has a Category I & II three-point hitch rated to lift 2,976.3 lb.
What maintenance does the Kubota L5740HST require?
Like any tractor, the Kubota L5740HST needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
