Kubota L6060
The Kubota L6060 is a utility tractor that packs a punch in a compact package. It's powered by a Kubota V2403-CR-TE4 diesel engine with 4 cylinders and 60 horsepower. This engine is turbocharged and liquid-cooled, giving it good power for its size. The tractor has a 4-wheel drive system and hydrostatic power steering, making it easy to handle in various conditions. One of the L6060's standout features is its hydrostatic transmission with infinite forward and reverse speeds in 3 ranges. This allows for smooth operation and precise speed control. The tractor has a three-point hitch with a very high lifting capacity of 3,859 pounds, making it versatile for many farm tasks. It also comes with a 540 rpm rear PTO and an optional 2000 rpm middle PTO. The L6060 has an open operator station with a foldable roll-over protection structure (ROPS) for safety. At 126.4 inches long, 67.3 inches wide, and 98 inches tall, it's compact enough to work in tight spaces while still being capable of handling tough jobs.
ManufacturerKubotaPower60 hp(44.7 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionHydrostatic
Key specifications
- Category
- Utility
- Engine power
- 60hp
- Operating weight
- 3,990 lb
- Transmission
- Hydrostatic
Category comparison
L6060 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
60 hp · 54th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The L6060 ranks at the 54th percentile for engine power among recorded utility tractors.
Overview
About the Kubota L6060
The Kubota L6060 is a utility tractor that packs a punch in a compact package. It's powered by a Kubota V2403-CR-TE4 diesel engine with 4 cylinders and 60 horsepower. This engine is turbocharged and liquid-cooled, giving it good power for its size. The tractor has a 4-wheel drive system and hydrostatic power steering, making it easy to handle in various conditions. One of the L6060's standout features is its hydrostatic transmission with infinite forward and reverse speeds in 3 ranges. This allows for smooth operation and precise speed control. The tractor has a three-point hitch with a very high lifting capacity of 3,859 pounds, making it versatile for many farm tasks. It also comes with a 540 rpm rear PTO and an optional 2000 rpm middle PTO. The L6060 has an open operator station with a foldable roll-over protection structure (ROPS) for safety. At 126.4 inches long, 67.3 inches wide, and 98 inches tall, it's compact enough to work in tight spaces while still being capable of handling tough jobs.
Full specifications
Recorded specifications
General
| Manufacturer | Kubota |
|---|---|
| Model | L6060 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2013+ |
| Operating weight | 3,990lb(1,810 kg) |
Engine
| Make | Kubota |
|---|---|
| Model | V2403-CR-TE4 |
| Power | 60hp(44.74 kW) |
| Cylinders | 4 |
| Displacement | 148.5ci(2.43 L) |
| Bore | 3.43in(87.12 mm) |
| Stroke | 4.03in(102.4 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Brakes | Wet disc |
| Cab | Open operator station with two-post foldable ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 126.4in(3,211 mm) |
|---|---|
| Width | 67.3in(1,709 mm) |
| Height | 98in(2,489 mm) |
| Operating weight | 3,990lb(1,810 kg) |
Capacities
| Cooling system | 2.17gal(8.21 L) |
|---|
Closest alternatives
L6060 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the L6060 are the Kubota GL-600 and the Massey Ferguson 1660. The Kubota GL-600 matches it on rated power and weighs 350 lb more, so it carries more weight per horsepower, which helps traction in draft work. It entered production in 1995, 18 years before the L6060. The Massey Ferguson 1660 matches it on rated power and weighs 90 lb more. Of the 3 models, the L6060 has the lowest weight per horsepower at 67 lb per hp.
| Spec | Kubota L6060 | Kubota GL-600 | Massey Ferguson 1660 |
|---|---|---|---|
| Engine power | 60 hp44.7 kW | 60 hp44.7 kW | 60 hp44.7 kW |
| Operating weight | 3,990 lb1,810 kg | 4,343 lb1,970 kg | 4,079 lb1,850 kg |
| Weight per hp | 67 lb/hp40 kg/kW | 72 lb/hp44 kg/kW | 68 lb/hp41 kg/kW |
| Displacement | 148.5 ci2.43 L | 167.6 ci2.75 L | 180.4 ci2.96 L |
| Cylinders | 4 | 5 | 4 |
| Transmission | Hydrostatic | Manual | PowerShuttle, DynaQPS |
| Drive | 4WD | 4WD | 4WD |
| Years built | 2013+ | 1995-1998 | 2009-2013 |
Calculators
Calculators for the L6060
PTO power
About 50 to 54 PTO hp
Estimated from the 60 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 60 hp tractor can run
Maximum size is about a 7 ft rotary cutter or a 6 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
77 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
60 hp is 44.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
L6060 vs. Utility median
Kubota L6060 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 60 hp | 55 hp | +9% | 54th |
| Engine Displacement | 149 ci | 183 ci | -19% | 37th |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 3,990 lb | 5,303 lb | -25% | 36th |
| Length | 126 in | 137 in | -7% | 37th |
| Width | 67.3 in | 66 in | +2% | 54th |
| Height | 98 in | 94.1 in | +4% | 61st |
| 3-Point Hitch Capacity | 3,859 lb | 3,197 lb | +21% | 63rd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other Kubota models
Other manufacturers
Models with similar horsepower
Gallery

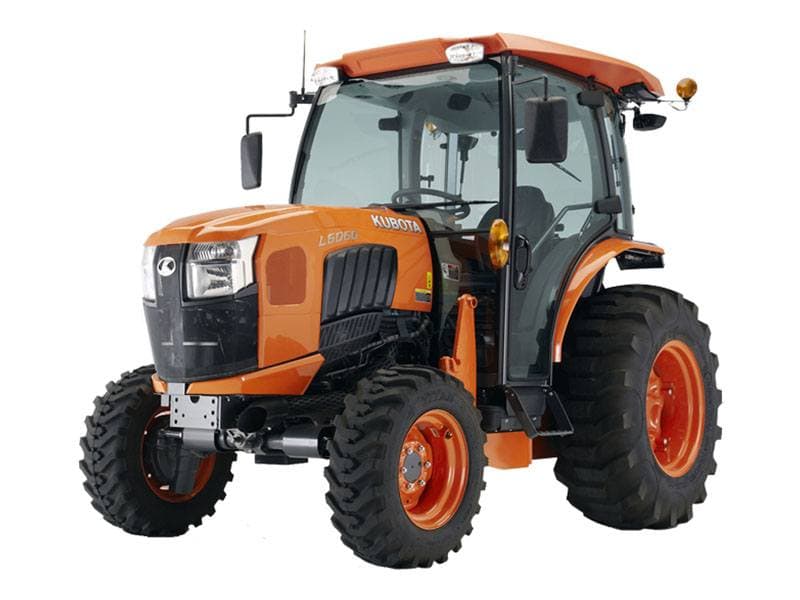

Kubota L6060 photos
FAQ
Frequently asked questions
What years was the Kubota L6060 manufactured?
Production of the Kubota L6060 began in 2013.
How powerful is the Kubota L6060?
The Kubota L6060 has an engine power output of 60 hp. It is powered by a 4-cylinder engine displacing 148.5 ci.
What is the working weight of the Kubota L6060?
The operating weight of the Kubota L6060 is approximately 3,990 lb.
What type of transmission does the Kubota L6060 have?
The Kubota L6060 uses a Hydrostatic transmission.
What type of hydraulic system does the Kubota L6060 use?
Hydraulics on the Kubota L6060 are Open center.
What hitch category is the Kubota L6060?
The Kubota L6060 uses a Category II/I hitch with a lift capacity of 3,859 lb.
What routine service does the Kubota L6060 need?
Regular maintenance for the Kubota L6060 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
