Kubota M9540
The Kubota M9540 is a strong utility tractor made from 2006 to 2013. It has a powerful 95 hp diesel engine with four cylinders. This engine is turbocharged and has above average displacement for its class. The tractor runs at a very high 2600 rpm, giving it plenty of power for tough jobs. This tractor is built for versatility. It has four-wheel drive and hydrostatic power steering, making it easy to control. The transmission has 8 forward and 8 reverse gears, allowing for smooth operation. The M9540 has a three-point hitch at the back that can lift up to 5500 lb, which is very high capacity. It also has two PTO speeds: 540 rpm and 540E rpm. The tractor's open center hydraulic system and wet disc brakes add to its reliability. With its foldable ROPS and compact size (148 inches long, 78 inches wide, and 97.6 inches tall), this Kubota is both safe and easy to maneuver.
ManufacturerKubotaPower95 hpEngine4-cylTransPartially synchronized (Synchro-Shuttle), Power shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 95hp
- Operating Weight
- 5,093 lb
- Transmission
- Partially synchronized (Synchro-Shuttle), Power shuttle
At a glance
How the M9540 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
95 hp · 81st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The M9540 ranks at the 81st percentile for engine power among recorded utility tractors.
Overview
About the Kubota M9540
The Kubota M9540 is a strong utility tractor made from 2006 to 2013. It has a powerful 95 hp diesel engine with four cylinders. This engine is turbocharged and has above average displacement for its class. The tractor runs at a very high 2600 rpm, giving it plenty of power for tough jobs. This tractor is built for versatility. It has four-wheel drive and hydrostatic power steering, making it easy to control. The transmission has 8 forward and 8 reverse gears, allowing for smooth operation. The M9540 has a three-point hitch at the back that can lift up to 5500 lb, which is very high capacity. It also has two PTO speeds: 540 rpm and 540E rpm. The tractor's open center hydraulic system and wet disc brakes add to its reliability. With its foldable ROPS and compact size (148 inches long, 78 inches wide, and 97.6 inches tall), this Kubota is both safe and easy to maneuver.
Full specifications
Every recorded spec
General
| Manufacturer | Kubota |
|---|---|
| Model | M9540 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2006–2013 |
| Operating weight | 5,093lb |
Engine
| Make | Kubota |
|---|---|
| Model | V3800-DI-T |
| Power | 95hp |
| Cylinders | 4 |
| Displacement | 230ci |
| Bore | 3.94in |
| Stroke | 4.72in |
Transmission
| Type | Partially synchronized (Synchro-Shuttle), Power shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD 4WD |
| Steering | Hydrostatic power |
| Brakes | Hydraulic wet disc |
| Cab | Two-post foldable ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 148in |
|---|---|
| Width | 78in |
| Height | 97.6in |
| Operating weight | 5,093lb |
Capacities
| Cooling system | 2.38gal |
|---|
Head to head
M9540 vs. Utility median
How the Kubota M9540 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 95 hp | 55 hp | +73% | 81st |
| Engine Displacement | 230 ci | 183 ci | +26% | 62nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 5,093 lb | 5,303 lb | -4% | 49th |
| Length | 148 in | 137 in | +8% | 64th |
| Width | 78 in | 66 in | +18% | 78th |
| Height | 97.6 in | 94.1 in | +4% | 60th |
| 3-Point Hitch Capacity | 5,500 lb | 3,197 lb | +72% | 78th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared Kubota tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Kubota M5N-091HDC12PK | 95 hp | 5,621.8 lb | — | Compare → |
| Kubota M5N-091HDCC12 | 95 hp | 5,621.8 lb | — | Compare → |
| Kubota M5N-091HDCC24 | 95 hp | 5,621.8 lb | — | Compare → |
| Kubota M5N-091HDRC12 | 95 hp | 5,621.8 lb | — | Compare → |
| Kubota M5N-091HDRC24 | 95 hp | 5,621.8 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro SRX 10400 | 95 hp | 4,718 lb | — | Compare → |
| Antonio Carraro TGF 10400 | 95 hp | 5,247 lb | — | Compare → |
| Antonio Carraro TRG 10400 | 95 hp | 5,247 lb | — | Compare → |
| Antonio Carraro TRX 10400 | 95 hp | 4,828 lb | — | Compare → |
| Antonio Carraro TTR 10400 | 95 hp | 4,806 lb | — | Compare → |
Explore
Kubota siblings
Explore
Similar-spec models
Gallery

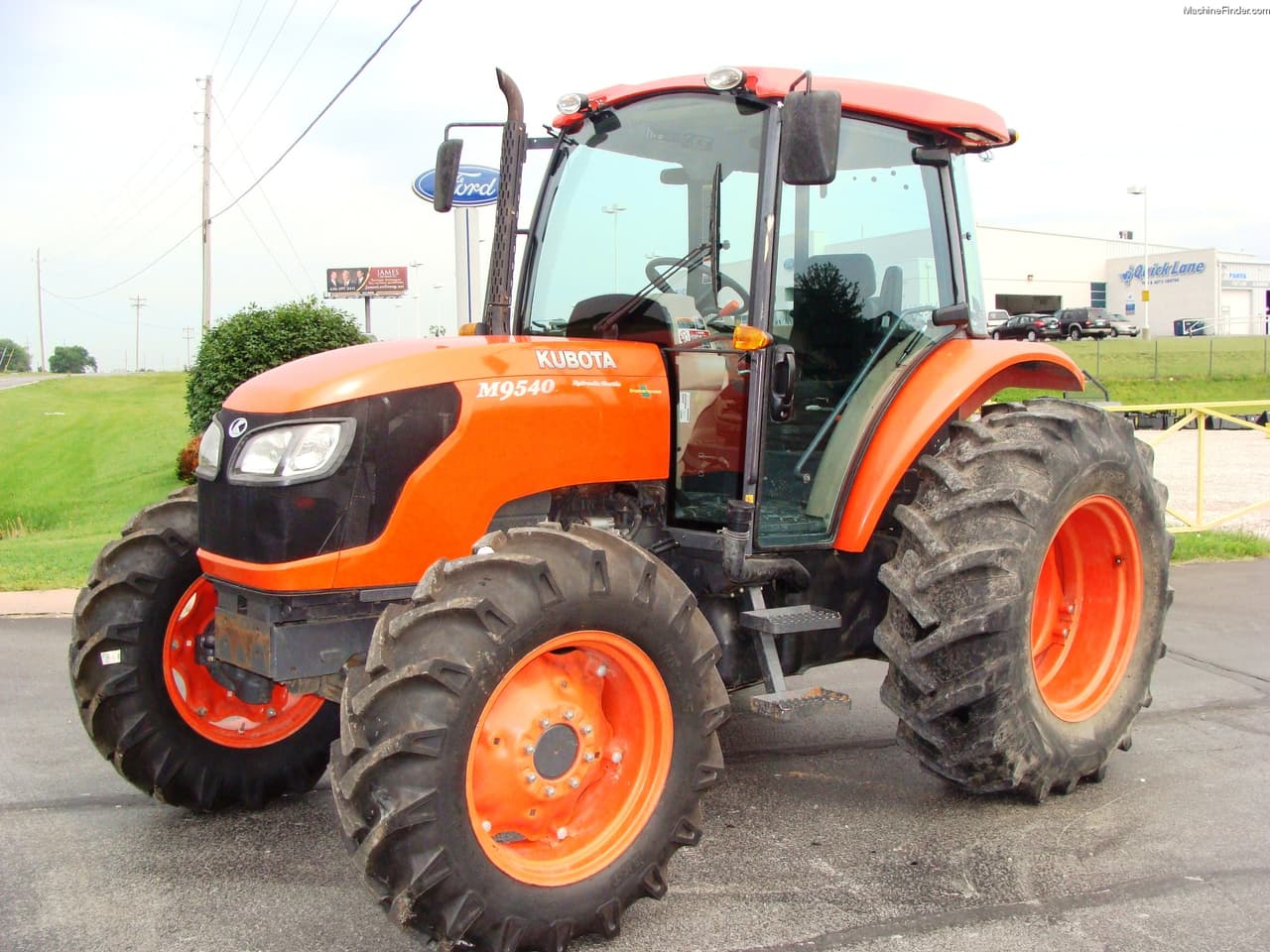

Kubota M9540 photos
FAQ
Common questions
When was the Kubota M9540 made?
The Kubota M9540 was manufactured from 2006 to 2013.
What hydraulics does the Kubota M9540 have?
The Kubota M9540 uses an Open center hydraulic system.
What three-point hitch category does the Kubota M9540 use?
The Kubota M9540 has a Category II three-point hitch rated to lift 5,500 lb.
What is the engine power output of the Kubota M9540?
Rated engine output for the Kubota M9540 is 95 hp, delivered by a 4-cylinder engine. The engine displaces 230 ci.
What is the operating weight of the Kubota M9540?
In working trim, the Kubota M9540 comes in at roughly 5,093 lb.
Which transmission does the Kubota M9540 use?
The Kubota M9540 is equipped with a Partially synchronized (Synchro-Shuttle), Power shuttle transmission with 8 forward gears.
How do I maintain a Kubota M9540?
Routine service for the Kubota M9540 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
