Utility tractorsSpec sheet
Landini 4-070
The Landini 4-070 is a versatile utility tractor built for various farming tasks. It features a powerful 4-cylinder Deutz diesel engine that produces 68 horsepower, which is above average for its class. The engine has a displacement of 177 cubic inches, making it about average in size compared to similar tractors. This tractor meets Interim Tier IV emissions standards, using a cooled EGR system with DOC to keep exhaust clean. The 4-070 comes with a 4-wheel drive system and power steering, making it easy to handle in tough conditions. It has a partially synchronized transmission with 12 forward and 12 reverse gears, giving the operator plenty of options for different jobs. The tractor can be equipped with either a ROPS (roll-over protection structure) or a cab, depending on the farmer's needs. It also features a three-point hitch at the rear, which is useful for attaching various implements. With its compact size of 165 inches long and 68.9 inches wide, this Landini tractor is well-suited for work in tight spaces or smaller fields.
ManufacturerLandiniPower68 hp(50.7 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionPartially synchronized with power shuttle
Key specifications
- Category
- Utility
- Engine power
- 68hp
- Transmission
- Partially synchronized with power shuttle
Category comparison
4-070 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
68 hp · 61st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 4-070 ranks at the 61st percentile for engine power among recorded utility tractors.
Overview
About the Landini 4-070
The Landini 4-070 is a versatile utility tractor built for various farming tasks. It features a powerful 4-cylinder Deutz diesel engine that produces 68 horsepower, which is above average for its class. The engine has a displacement of 177 cubic inches, making it about average in size compared to similar tractors. This tractor meets Interim Tier IV emissions standards, using a cooled EGR system with DOC to keep exhaust clean. The 4-070 comes with a 4-wheel drive system and power steering, making it easy to handle in tough conditions. It has a partially synchronized transmission with 12 forward and 12 reverse gears, giving the operator plenty of options for different jobs. The tractor can be equipped with either a ROPS (roll-over protection structure) or a cab, depending on the farmer's needs. It also features a three-point hitch at the rear, which is useful for attaching various implements. With its compact size of 165 inches long and 68.9 inches wide, this Landini tractor is well-suited for work in tight spaces or smaller fields.
Full specifications
Recorded specifications
General
| Manufacturer | Landini |
|---|---|
| Model | 4-070 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
Engine
| Make | Deutz |
|---|---|
| Model | C4DT50 |
| Power | 68hp(50.71 kW) |
| Cylinders | 4 |
| Displacement | 177ci(2.9 L) |
| Bore | 3.62in(91.95 mm) |
| Stroke | 4.33in(110 mm) |
Transmission
| Type | Partially synchronized with power shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Cab | Optional ROPS or Cab |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 165in(4,191 mm) |
|---|---|
| Width | 68.9in(1,750 mm) |
Closest alternatives
4-070 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 4-070 are the Landini Globus 65 and the Kubota M7040. The Landini Globus 65 matches it on rated power. The Kubota M7040 matches it on rated power.
| Spec | Landini 4-070 | Landini Globus 65 | Kubota M7040 |
|---|---|---|---|
| Engine power | 68 hp50.7 kW | 68 hp50.7 kW | 68 hp50.7 kW |
| Displacement | 177 ci2.9 L | 243.5 ci3.99 L | 203 ci3.33 L |
| Cylinders | 4 | 4 | 4 |
Calculators
Calculators for the 4-070
PTO power
About 56 to 61 PTO hp
Estimated from the 68 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 68 hp tractor can run
Maximum size is about a 8 ft rotary cutter or a 7 ft tiller. The calculator also sizes discs, plows and balers.
Units
68 hp is 50.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
4-070 vs. Utility median
Landini 4-070 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 68 hp | 55 hp | +24% | 61st |
| Engine Displacement | 177 ci | 183 ci | -3% | 47th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Length | 165 in | 137 in | +21% | 83rd |
| Width | 68.9 in | 66 in | +4% | 57th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Landini models
Other manufacturers
Models with similar horsepower
Gallery

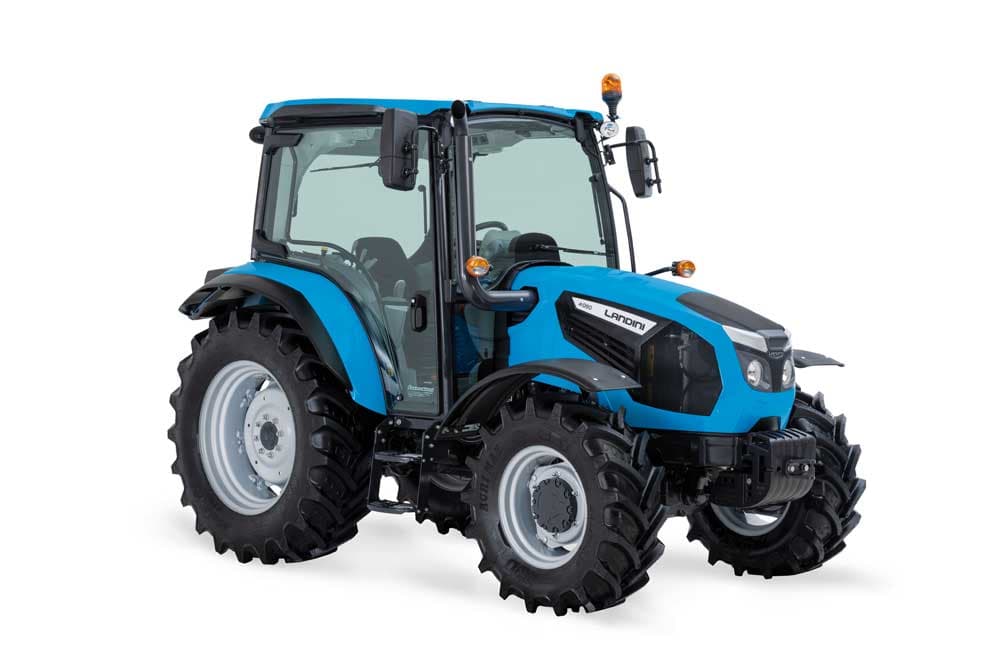

Landini 4-070 photos
FAQ
Frequently asked questions
How much horsepower does the Landini 4-070 have?
The Landini 4-070 produces 68 hp from its 4-cylinder engine. Engine displacement is 177 ci.
What transmission is in the Landini 4-070?
Transmission on the Landini 4-070 is Partially synchronized with power shuttle, with 12 forward speeds.
What hydraulics does the Landini 4-070 have?
The Landini 4-070 uses an Open center hydraulic system.
What three-point hitch category does the Landini 4-070 use?
The Landini 4-070 has a Category II three-point hitch.
What maintenance does the Landini 4-070 require?
The Landini 4-070 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
