Utility tractorsSpec sheet
Landini Atlantis 70
The Landini Atlantis 70 is a utility tractor built for farm work. It has a 2WD drive system and power steering, making it easy to handle. The tractor uses a shuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different tasks. Under the hood, the Atlantis 70 has a Perkins 1004-40 diesel engine. This engine has 4 cylinders and is liquid-cooled. It can produce 67 horsepower, which is above average for tractors in its class. The engine size is also above average, measuring 243.5 cubic inches. This tractor weighs 7,055 pounds, which is on the heavier side for similar models. It has a Category II hitch at the back for attaching tools and equipment. The Atlantis 70 is designed to be compact yet powerful. It measures 164.2 inches long, 72 inches wide, and 100.4 inches tall. This size makes it suitable for various farm jobs, from field work to moving things around the farm. The tractor comes with agricultural tires on both the front and rear, perfect for use in fields and on rough ground.
Key specifications
- Category
- Utility
- Engine power
- 67hp
- Operating weight
- 7,055 lb
- Transmission
- Shuttle
Category comparison
Atlantis 70 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
67 hp · 61st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Atlantis 70 ranks at the 61st percentile for engine power among recorded utility tractors.
Overview
About the Landini Atlantis 70
The Landini Atlantis 70 is a utility tractor built for farm work. It has a 2WD drive system and power steering, making it easy to handle. The tractor uses a shuttle transmission with 12 forward and 12 reverse gears, giving the driver lots of options for different tasks. Under the hood, the Atlantis 70 has a Perkins 1004-40 diesel engine. This engine has 4 cylinders and is liquid-cooled. It can produce 67 horsepower, which is above average for tractors in its class. The engine size is also above average, measuring 243.5 cubic inches. This tractor weighs 7,055 pounds, which is on the heavier side for similar models. It has a Category II hitch at the back for attaching tools and equipment. The Atlantis 70 is designed to be compact yet powerful. It measures 164.2 inches long, 72 inches wide, and 100.4 inches tall. This size makes it suitable for various farm jobs, from field work to moving things around the farm. The tractor comes with agricultural tires on both the front and rear, perfect for use in fields and on rough ground.
Full specifications
Recorded specifications
General
| Manufacturer | Landini |
|---|---|
| Model | Atlantis 70 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 7,055lb(3,200 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | 1004-40 |
| Power | 67hp(49.96 kW) |
| Cylinders | 4 |
| Displacement | 243.5ci(3.99 L) |
| Bore | 3.94in(100 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 164.2in(4,171 mm) |
|---|---|
| Width | 72in(1,829 mm) |
| Height | 100.4in(2,550 mm) |
| Operating weight | 7,055lb(3,200 kg) |
Closest alternatives
Atlantis 70 compared with the nearest models by horsepower
The closest utility models to the Landini Atlantis 70 by rated horsepower are the Landini Atlas 70 and the Landini Powerfarm 75. The Landini Atlas 70 matches it on rated power at almost the same operating weight. The Landini Powerfarm 75 matches it on rated power and weighs 270 lb more. Of the 3 models, the Atlantis 70 has the lowest weight per horsepower at 105 lb per hp.
| Spec | Landini Atlantis 70 | Landini Atlas 70 | Landini Powerfarm 75 |
|---|---|---|---|
| Engine power | 67 hp50 kW | 67 hp50 kW | 67 hp50 kW |
| Operating weight | 7,055 lb3,200 kg | 7,055 lb3,200 kg | 7,326 lb3,323 kg |
| Weight per hp | 105 lb/hp64 kg/kW | 105 lb/hp64 kg/kW | 109 lb/hp67 kg/kW |
| Displacement | 243.5 ci3.99 L | 243.5 ci3.99 L | 268 ci4.39 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Shuttle | Shuttle | - |
| Drive | 2WD | 2WD | 4WD |
Calculators
Calculators for the Atlantis 70
PTO power
About 56 to 60 PTO hp
Estimated from the 67 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 67 hp tractor can run
Maximum size is about a 8 ft rotary cutter or a 7 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
122 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
67 hp is 50.0 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Atlantis 70 vs. Utility median
Landini Atlantis 70 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 67 hp | 55 hp | +22% | 61st |
| Engine Displacement | 244 ci | 183 ci | +33% | 68th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 7,055 lb | 5,303 lb | +33% | 68th |
| Length | 164 in | 137 in | +20% | 82nd |
| Width | 72 in | 66 in | +9% | 65th |
| Height | 100 in | 94.1 in | +7% | 66th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Landini models
Other manufacturers
Models with similar horsepower
Gallery

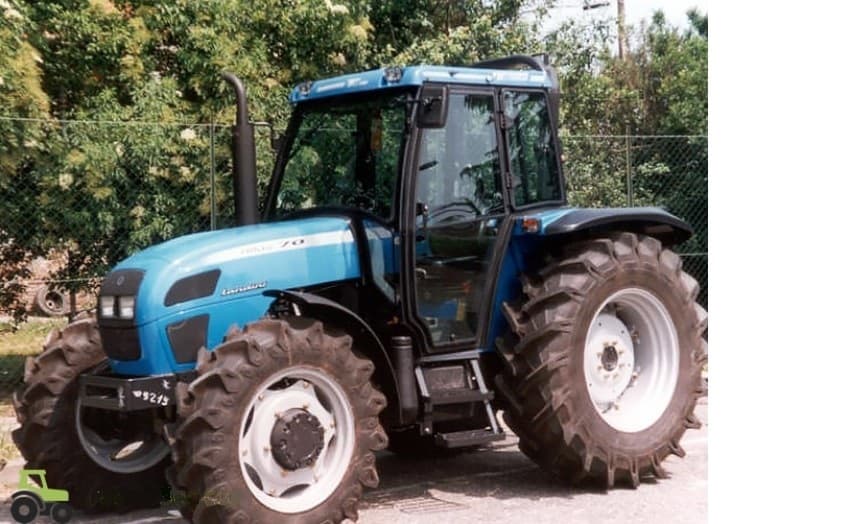

Landini Atlantis 70 photos
FAQ
Frequently asked questions
How powerful is the Landini Atlantis 70?
The Landini Atlantis 70 has an engine power output of 67 hp. It is powered by a 4-cylinder engine displacing 243.5 ci.
What is the working weight of the Landini Atlantis 70?
The operating weight of the Landini Atlantis 70 is approximately 7,055 lb.
What type of transmission does the Landini Atlantis 70 have?
The Landini Atlantis 70 uses a Shuttle transmission offering 12 forward gears.
What routine service does the Landini Atlantis 70 need?
Regular maintenance for the Landini Atlantis 70 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
