Utility tractorsSpec sheet
Landini 5-080H
The Landini 5-080H is a powerful 4WD tractor designed for various farming tasks. It features a 4x4 MFWD chassis, making it suitable for tough terrain and heavy-duty work. The tractor is equipped with a Perkins 1104D-44 engine, which is liquid-cooled and runs on diesel fuel. This engine has 4 cylinders and produces 74 horsepower, giving the tractor plenty of strength for most farm jobs. One of the standout features of the Landini 5-080H is its transmission. It has a partial power shift with shuttle, offering 12 forward and 12 reverse gears for a total of 24 gears. This wide range of gears allows farmers to choose the perfect speed for any task. The tractor's size is also worth noting, measuring 163.8 inches long, 83 inches wide, and 101 inches tall. It weighs 8030 pounds, making it a sturdy machine. With 18.5 inches of ground clearance, the 5-080H can easily navigate rough fields and uneven terrain.
ManufacturerLandiniPower74 hp(55.2 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionPartial power shift with shuttle
Key specifications
- Category
- Utility
- Engine power
- 74hp
- Operating weight
- 8,030 lb
- Transmission
- Partial power shift with shuttle
Category comparison
5-080H compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
74 hp · 66th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5-080H ranks at the 66th percentile for engine power among recorded utility tractors.
Overview
About the Landini 5-080H
The Landini 5-080H is a powerful 4WD tractor designed for various farming tasks. It features a 4x4 MFWD chassis, making it suitable for tough terrain and heavy-duty work. The tractor is equipped with a Perkins 1104D-44 engine, which is liquid-cooled and runs on diesel fuel. This engine has 4 cylinders and produces 74 horsepower, giving the tractor plenty of strength for most farm jobs. One of the standout features of the Landini 5-080H is its transmission. It has a partial power shift with shuttle, offering 12 forward and 12 reverse gears for a total of 24 gears. This wide range of gears allows farmers to choose the perfect speed for any task. The tractor's size is also worth noting, measuring 163.8 inches long, 83 inches wide, and 101 inches tall. It weighs 8030 pounds, making it a sturdy machine. With 18.5 inches of ground clearance, the 5-080H can easily navigate rough fields and uneven terrain.
Full specifications
Recorded specifications
General
| Manufacturer | Landini |
|---|---|
| Model | 5-080H |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 8,030lb(3,642 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | 1104D-44 |
| Power | 74hp(55.18 kW) |
| Cylinders | 4 |
| Displacement | 268.5ci(4.4 L) |
| Bore | 4.13in(104.9 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Partial power shift with shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
Dimensions
| Length | 163.8in(4,161 mm) |
|---|---|
| Width | 83in(2,108 mm) |
| Height | 101in(2,565 mm) |
| Operating weight | 8,030lb(3,642 kg) |
Closest alternatives
5-080H compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 5-080H are the Landini 4-075 and the Landini Globus 75. The Landini 4-075 matches it on rated power. The Landini Globus 75 matches it on rated power and weighs 1,310 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft.
| Spec | Landini 5-080H | Landini 4-075 | Landini Globus 75 |
|---|---|---|---|
| Engine power | 74 hp55.2 kW | 74 hp55.2 kW | 74 hp55.2 kW |
| Operating weight | 8,030 lb3,642 kg | - | 6,724 lb3,050 kg |
| Weight per hp | 109 lb/hp66 kg/kW | - | 91 lb/hp55 kg/kW |
| Displacement | 268.5 ci4.4 L | 268.5 ci4.4 L | 258 ci4.23 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Partial power shift with shuttle | Partially synchronized / Power shuttle | - |
| Drive | 4WD | 4WD | 2WD |
Calculators
Calculators for the 5-080H
PTO power
About 61 to 67 PTO hp
Estimated from the 74 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 74 hp tractor can run
Maximum size is about a 9 ft rotary cutter or a 7.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
126 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
74 hp is 55.2 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
5-080H vs. Utility median
Landini 5-080H compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 74 hp | 55 hp | +35% | 66th |
| Engine Displacement | 269 ci | 183 ci | +47% | 77th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 8,030 lb | 5,303 lb | +51% | 76th |
| Length | 164 in | 137 in | +20% | 82nd |
| Width | 83 in | 66 in | +26% | 86th |
| Height | 101 in | 94.1 in | +7% | 68th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Landini models
Other manufacturers
Models with similar horsepower
Gallery

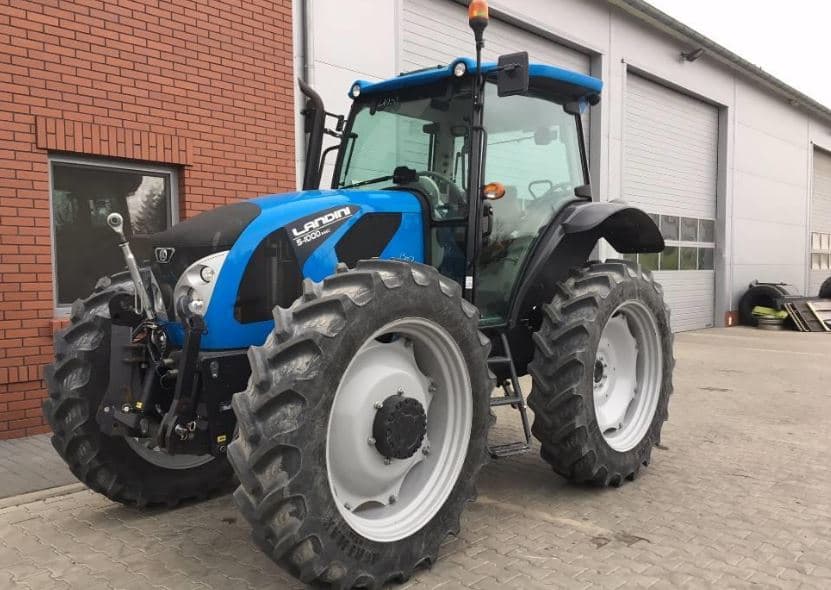

Landini 5-080H photos
FAQ
Frequently asked questions
What is the engine power output of the Landini 5-080H?
Rated engine output for the Landini 5-080H is 74 hp, delivered by a 4-cylinder engine. The engine displaces 268.5 ci.
What is the operating weight of the Landini 5-080H?
The Landini 5-080H has an operating weight of about 8,030 lb.
Which transmission does the Landini 5-080H use?
The Landini 5-080H is equipped with a Partial power shift with shuttle transmission with 12 forward gears.
How do I maintain a Landini 5-080H?
Routine service for the Landini 5-080H covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
