UtilityPerformance profile
Landini Atlas 90
The Landini Atlas 90 is a powerful utility tractor designed for various farm tasks. It features a 2WD chassis with power steering, making it easy to handle in the field. The tractor is equipped with a Perkins 1004-40T engine, which is a 4-cylinder, turbocharged diesel engine. This engine provides 88 hp of power, which is above average for tractors in its class. The Atlas 90 also has a good amount of torque, delivering 264 lb-ft at 1400 rpm. One of the standout features of the Atlas 90 is its transmission. It has a shuttle-type transmission with 24 forward gears and 12 reverse gears, giving the operator plenty of options for different tasks and speeds. The tractor comes with agricultural tires and a three-point hitch at the rear, which is category II. This allows for easy attachment of various implements. The Atlas 90 is a mid-sized tractor, measuring 164.2 inches long, 75.9 inches wide, and 102.4 inches high with the ROPS (Roll-Over Protective Structure). It has an operating weight of 7385 lb, which is above average for its category, providing good stability during operation.
ManufacturerLandiniPower88 hpEngine4-cylTransShuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 88hp
- Operating Weight
- 7,385 lb
- Transmission
- Shuttle
At a glance
How the Atlas 90 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
88 hp · 76th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Atlas 90 ranks at the 76th percentile for engine power among recorded utility tractors.
Overview
About the Landini Atlas 90
The Landini Atlas 90 is a powerful utility tractor designed for various farm tasks. It features a 2WD chassis with power steering, making it easy to handle in the field. The tractor is equipped with a Perkins 1004-40T engine, which is a 4-cylinder, turbocharged diesel engine. This engine provides 88 hp of power, which is above average for tractors in its class. The Atlas 90 also has a good amount of torque, delivering 264 lb-ft at 1400 rpm. One of the standout features of the Atlas 90 is its transmission. It has a shuttle-type transmission with 24 forward gears and 12 reverse gears, giving the operator plenty of options for different tasks and speeds. The tractor comes with agricultural tires and a three-point hitch at the rear, which is category II. This allows for easy attachment of various implements. The Atlas 90 is a mid-sized tractor, measuring 164.2 inches long, 75.9 inches wide, and 102.4 inches high with the ROPS (Roll-Over Protective Structure). It has an operating weight of 7385 lb, which is above average for its category, providing good stability during operation.
Full specifications
Every recorded spec
General
| Manufacturer | Landini |
|---|---|
| Model | Atlas 90 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 7,385lb |
Engine
| Make | Perkins |
|---|---|
| Model | 1004-40T |
| Power | 88hp |
| Cylinders | 4 |
| Displacement | 243.5ci |
| Bore | 3.94in |
| Stroke | 5in |
Transmission
| Type | Shuttle |
|---|---|
| Forward gears | 24 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 164.2in |
|---|---|
| Width | 75.9in |
| Height | 102.4in |
| Operating weight | 7,385lb |
Head to head
Atlas 90 vs. Utility median
How the Landini Atlas 90 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 88 hp | 55 hp | +60% | 76th |
| Engine Displacement | 244 ci | 183 ci | +33% | 68th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 7,385 lb | 5,303 lb | +39% | 70th |
| Length | 164 in | 137 in | +20% | 82nd |
| Width | 75.9 in | 66 in | +15% | 73rd |
| Height | 102 in | 94.1 in | +9% | 72nd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Landini tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Landini Atlantis 90 | 88 hp | 7,385 lb | — | Compare → |
| Landini Ghibli 90 | 88 hp | 8,598 lb | — | Compare → |
| Landini 4-090 | 85 hp | 7,775 lb | — | Compare → |
| Landini 95 Blizzard | 85 hp | 7,497 lb | — | Compare → |
| Landini Powerfarm 95 | 91 hp | 7,326 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Mach 2 | 87 hp | 6,504 lb | — | Compare → |
| Antonio Carraro Mach 4 | 87 hp | 6,725 lb | — | Compare → |
| Antonio Carraro SRH 9800 Infinity | 87 hp | — | — | Compare → |
| Antonio Carraro SRX 9800 | 87 hp | 4,850 lb | — | Compare → |
| Antonio Carraro SX 9400S | 87 hp | 4,707 lb | — | Compare → |
Explore
Landini siblings
Explore
Similar-spec models

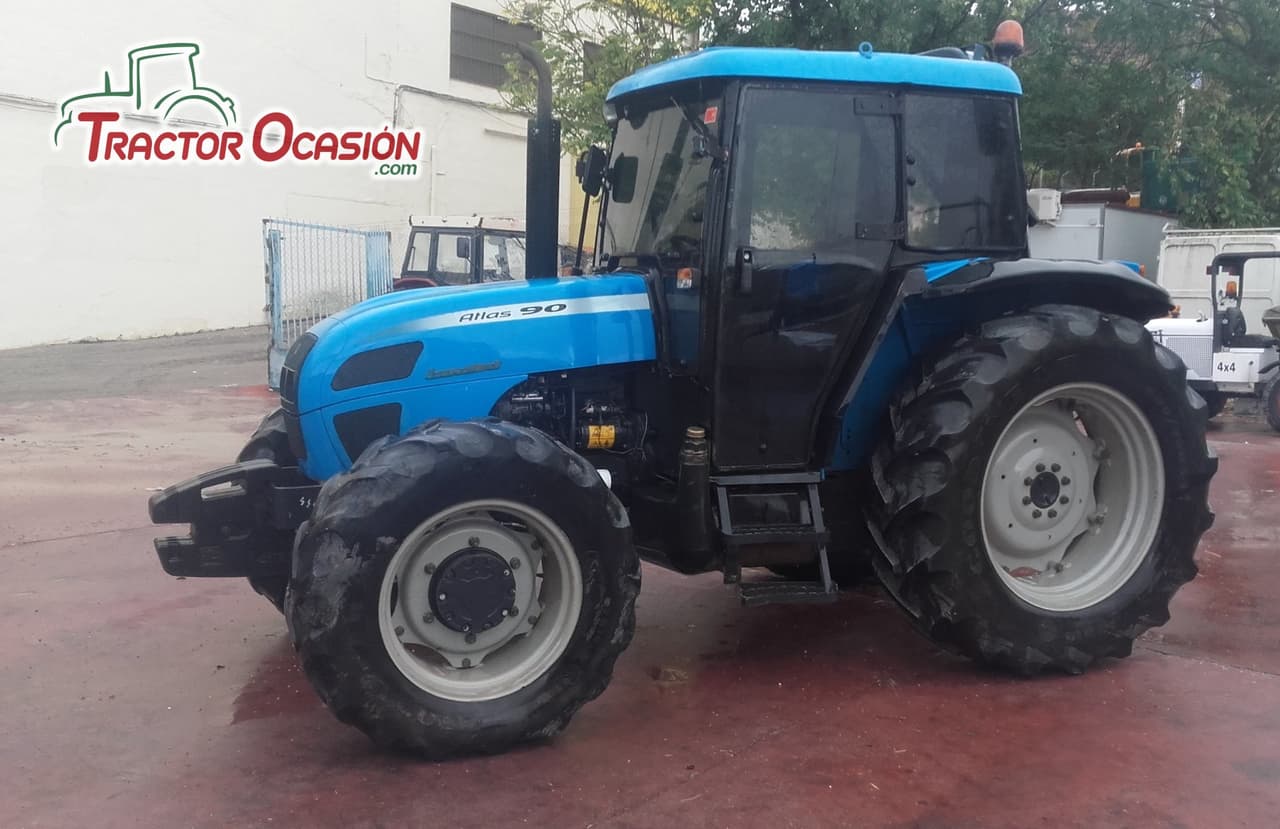

Gallery
Landini Atlas 90 photos
FAQ
Common questions
How powerful is the Landini Atlas 90?
The Landini Atlas 90 has an engine power output of 88 hp. It is powered by a 4-cylinder engine displacing 243.5 ci.
What hitch category is the Landini Atlas 90?
The Landini Atlas 90 uses a Category II hitch.
What is the working weight of the Landini Atlas 90?
The operating weight of the Landini Atlas 90 is approximately 7,385 lb.
What type of transmission does the Landini Atlas 90 have?
The Landini Atlas 90 uses a Shuttle transmission offering 24 forward gears.
What routine service does the Landini Atlas 90 need?
Regular maintenance for the Landini Atlas 90 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
