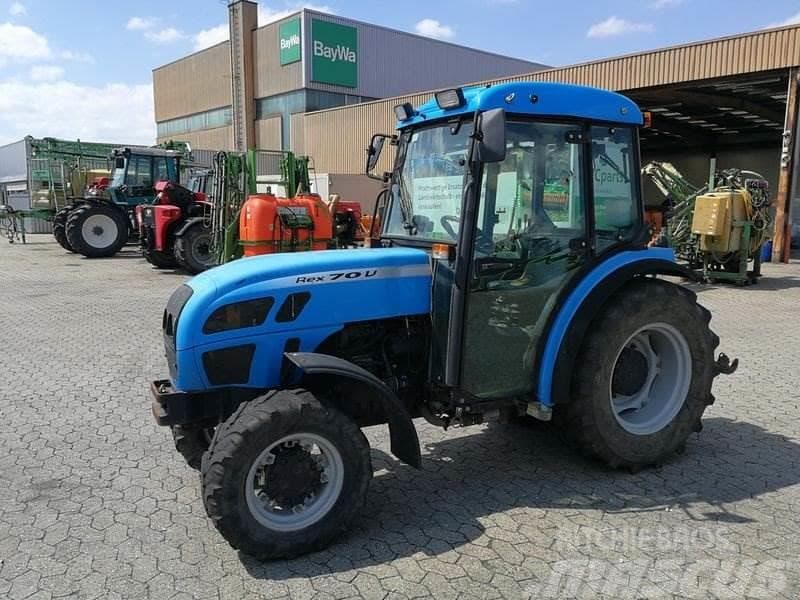

Landini Rex 70
The Landini Rex 70 is a specialized tractor designed for orchards and vineyards. It's also great for general farm work. This tractor has a 2-wheel drive system and power steering, making it easy to handle in tight spaces. The Rex 70 is powered by a Perkins 1004-40 diesel engine. This engine has 4 cylinders and produces 68 horsepower. It's liquid-cooled and has above-average displacement for its class. The tractor has a 40-forward and 12-reverse gear transmission, giving drivers lots of options for different tasks. It's a compact machine, measuring 146.1 inches long, 48.6 inches wide, and 88.6 inches tall. Despite its small size, it has a very high operating weight of 6,173 pounds, which helps with stability and traction. This Landini tractor comes with a three-point hitch at the rear, which is great for attaching various tools. It has good ground clearance at 9.8 inches, helpful for working in rough terrain. The Rex 70 starts easily with its 12-volt electric starter. Overall, it's a versatile and powerful tractor that's perfect for specialized farm work in tight spaces.
ManufacturerLandiniPower68 hp(50.7 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionShuttle, Creeper, Deltashift
Key specifications
- Category
- Agricultural
- Engine power
- 68hp
- Operating weight
- 6,173 lb
- Transmission
- Shuttle, Creeper, Deltashift
Category comparison
Rex 70 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
68 hp · 18th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The Rex 70 ranks at the 18th percentile for engine power among recorded agricultural tractors.
Overview
About the Landini Rex 70
The Landini Rex 70 is a specialized tractor designed for orchards and vineyards. It's also great for general farm work. This tractor has a 2-wheel drive system and power steering, making it easy to handle in tight spaces. The Rex 70 is powered by a Perkins 1004-40 diesel engine. This engine has 4 cylinders and produces 68 horsepower. It's liquid-cooled and has above-average displacement for its class. The tractor has a 40-forward and 12-reverse gear transmission, giving drivers lots of options for different tasks. It's a compact machine, measuring 146.1 inches long, 48.6 inches wide, and 88.6 inches tall. Despite its small size, it has a very high operating weight of 6,173 pounds, which helps with stability and traction. This Landini tractor comes with a three-point hitch at the rear, which is great for attaching various tools. It has good ground clearance at 9.8 inches, helpful for working in rough terrain. The Rex 70 starts easily with its 12-volt electric starter. Overall, it's a versatile and powerful tractor that's perfect for specialized farm work in tight spaces.
Full specifications
Recorded specifications
General
| Manufacturer | Landini |
|---|---|
| Model | Rex 70 |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Operating weight | 6,173lb(2,800 kg) |
Engine
| Make | Perkins |
|---|---|
| Model | 1004-40 |
| Power | 68hp(50.71 kW) |
| Cylinders | 4 |
| Displacement | 243.5ci(3.99 L) |
| Bore | 3.94in(100 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Shuttle, Creeper, Deltashift |
|---|---|
| Forward gears | 40 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 146.1in(3,711 mm) |
|---|---|
| Width | 48.6in(1,234 mm) |
| Height | 88.6in(2,250 mm) |
| Operating weight | 6,173lb(2,800 kg) |
Closest alternatives
Rex 70 compared with the nearest models by horsepower
By engine horsepower, the nearest agricultural models to the Rex 70 are the Goldini 70R and the John Deere 70A. The Goldini 70R matches it on rated power. The John Deere 70A matches it on rated power.
| Spec | Landini Rex 70 | Goldini 70R | John Deere 70A |
|---|---|---|---|
| Engine power | 68 hp50.7 kW | 68 hp50.7 kW | 68 hp50.7 kW |
| Displacement | 243.5 ci3.99 L | 127.1 ci2.08 L | 127.1 ci2.08 L |
| Cylinders | 4 | 3 | 3 |
| Transmission | Shuttle, Creeper, Deltashift | Manual | - |
| Drive | 2WD | 4WD | 4WD |
Calculators
Calculators for the Rex 70
PTO power
About 56 to 61 PTO hp
Estimated from the 68 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 68 hp tractor can run
Maximum size is about a 8 ft rotary cutter or a 7 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
106 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
68 hp is 50.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Rex 70 vs. Agricultural median
Landini Rex 70 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 68 hp | 110 hp | -38% | 18th |
| Engine Displacement | 244 ci | 336 ci | -27% | 25th |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Forward Gears | 40 | 16 | +150% | 96th |
| Operating Weight | 6,173 lb | 10,914 lb | -43% | 21st |
| Length | 146 in | 173 in | -15% | 24th |
| Width | 48.6 in | 79.5 in | -39% | 9th |
| Height | 88.6 in | 111 in | -20% | 18th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 497–1,130 models).
Same manufacturer
Other Landini models
Other manufacturers
Models with similar horsepower
Gallery
Landini Rex 70 photos
FAQ
Frequently asked questions
How much horsepower does the Landini Rex 70 have?
The Landini Rex 70 produces 68 hp from its 4-cylinder engine. Engine displacement is 243.5 ci.
How much does the Landini Rex 70 weigh?
The Landini Rex 70 weighs about 6,173 lb in operating condition.
What transmission is in the Landini Rex 70?
Transmission on the Landini Rex 70 is Shuttle, Creeper, Deltashift, with 40 forward speeds.
What hitch category is the Landini Rex 70?
The Landini Rex 70 uses a Category II hitch.
What maintenance does the Landini Rex 70 require?
The Landini Rex 70 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
