UtilityPerformance profile

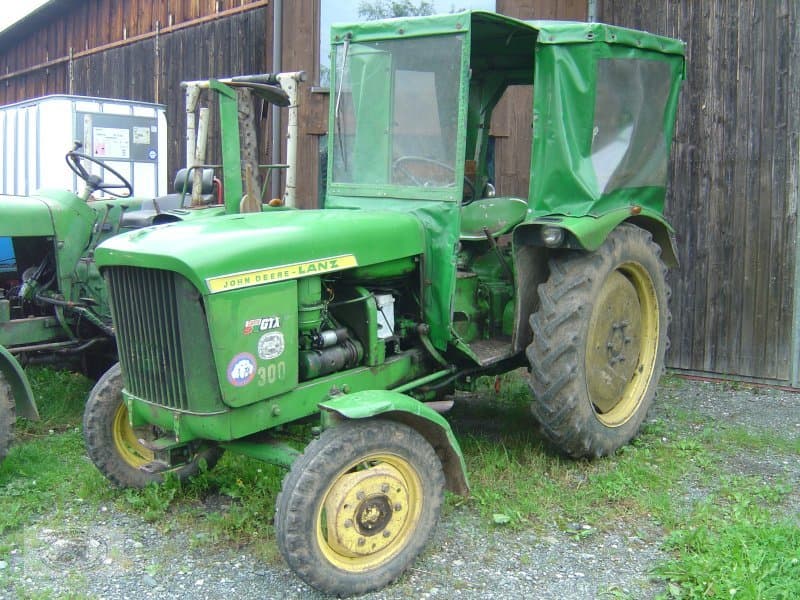

Lanz 300
The Lanz 300 is a versatile tractor designed for various farming tasks. It features a manual steering system and a gear transmission with 10 forward and 3 reverse gears, giving farmers good control over their work. Under the hood, the Lanz 300 has a John Deere engine. This 4-cylinder, diesel engine is liquid-cooled and naturally aspirated. It has a displacement of 144.5 ci and produces 27.6 hp at 2000 rpm. The tractor runs on agricultural tires both in front and rear, making it suitable for field work. It measures 133.5 inches long and 60.2 inches high, with an operating weight of 4040 lb. The Lanz 300 comes equipped with useful features for farm work. It has a three-point hitch at the rear, compatible with category II/I implements. The tractor also has a versatile PTO system, offering both 540 and 1000 rpm speeds. For hydraulic needs, it uses an open center system. The operator station is open, providing easy access and good visibility. Additional features include a wheelbase of 76.8 inches and a ground clearance of 15.4 inches, making it suitable for various terrain conditions.
ManufacturerLanzPower27.6 hpEngine4-cylTransGear
Quick specs
- Category
- Utility
- Engine Power Output
- 28hp
- Operating Weight
- 4,040 lb
- Transmission
- Gear
At a glance
How the 300 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
27.6 hp · 19th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 300 ranks at the 19th percentile for engine power among recorded utility tractors.
Overview
About the Lanz 300
The Lanz 300 is a versatile tractor designed for various farming tasks. It features a manual steering system and a gear transmission with 10 forward and 3 reverse gears, giving farmers good control over their work. Under the hood, the Lanz 300 has a John Deere engine. This 4-cylinder, diesel engine is liquid-cooled and naturally aspirated. It has a displacement of 144.5 ci and produces 27.6 hp at 2000 rpm. The tractor runs on agricultural tires both in front and rear, making it suitable for field work. It measures 133.5 inches long and 60.2 inches high, with an operating weight of 4040 lb. The Lanz 300 comes equipped with useful features for farm work. It has a three-point hitch at the rear, compatible with category II/I implements. The tractor also has a versatile PTO system, offering both 540 and 1000 rpm speeds. For hydraulic needs, it uses an open center system. The operator station is open, providing easy access and good visibility. Additional features include a wheelbase of 76.8 inches and a ground clearance of 15.4 inches, making it suitable for various terrain conditions.
Full specifications
Every recorded spec
General
| Manufacturer | Lanz |
|---|---|
| Model | 300 |
| Category | Utility tractor |
| Operating weight | 4,040lb |
Engine
| Make | John Deere |
|---|---|
| Power | 27.6hp |
| Cylinders | 4 |
| Displacement | 144.5ci |
| Bore | 3.62in |
| Stroke | 3.5in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 10 |
| Reverse gears | 3 |
Chassis & drive
| Steering | Manual |
|---|---|
| Cab | Open |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | 540/1000 |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 133.5in |
|---|---|
| Height | 60.2in |
| Operating weight | 4,040lb |
Head to head
300 vs. Utility median
How the Lanz 300 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 27.6 hp | 55 hp | -50% | 19th |
| Engine Displacement | 145 ci | 183 ci | -21% | 37th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 10 | 12 | -17% | 39th |
| Operating Weight | 4,040 lb | 5,303 lb | -24% | 37th |
| Length | 134 in | 137 in | -2% | 45th |
| Height | 60.2 in | 94.1 in | -36% | 10th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared Lanz tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Lanz Bulldog D7500 | 24.5 hp | 4,850 lb | — | Compare → |
| Lanz Bulldog D2416 | 24 hp | — | — | Compare → |
| Lanz Bulldog D8506 | 34.3 hp | — | — | Compare → |
| Lanz Bulldog D3500 | 19.6 hp | — | — | Compare → |
| Lanz Bulldog D1706 | 17 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D272 | 27.5 hp | 2,060 lb | — | Compare → |
| Ascot Universal 300 | 27.5 hp | 3,800 lb | — | Compare → |
| Bobcat CT225 | 27 hp | 3,021 lb | 2008–2013 | Compare → |
| AGCO ST28A | 28.4 hp | 2,400 lb | — | Compare → |
| AGCO ST30x | 28.4 hp | 1,984 lb | — | Compare → |
Explore
Lanz siblings
Explore
Similar-spec models
Gallery
Lanz 300 photos
FAQ
Common questions
How much horsepower does the Lanz 300 have?
The Lanz 300 produces 27.6 hp from its 4-cylinder engine. Engine displacement is 144.5 ci.
What transmission is in the Lanz 300?
Transmission on the Lanz 300 is Gear, with 10 forward speeds.
What type of hydraulic system does the Lanz 300 use?
Hydraulics on the Lanz 300 are Open center.
What hitch category is the Lanz 300?
The Lanz 300 uses a Category II/I hitch.
How much does the Lanz 300 weigh?
The Lanz 300 weighs about 4,040 lb in operating condition.
What maintenance does the Lanz 300 require?
Like any tractor, the Lanz 300 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
