UtilityPerformance profile

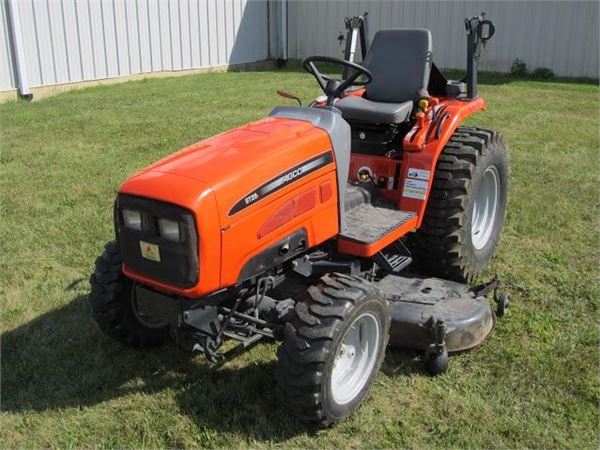

AGCO ST28A

The AGCO ST28A is a utility tractor designed for various farm tasks. It's powered by a 3-cylinder Iseki diesel engine that produces 28.4 horsepower. This liquid-cooled engine has a displacement of 89.3 cubic inches and runs at 2500 rpm. The tractor's compact size, measuring 114.6 inches long, 49.6 inches wide, and 79 inches tall, makes it easy to maneuver in tight spaces. One of the ST28A's standout features is its hydrostatic transmission, which offers infinite forward and reverse gears for smooth operation. The tractor is equipped with hydrostatic power steering for easy control. It has a Category 1 hitch at the rear and an independent PTO with two speed options: 540 rpm at the rear and 2000 rpm in the middle. With an operating weight of 2400 pounds, this AGCO tractor is sturdy enough for most utility tasks while remaining lightweight and versatile.

ManufacturerAGCOPower28.4 hpEngine3-cylTransHydrostatic
Jump to specs ↓Compare →
AGCO ST28A
Jump to Full Specifications List

Quick specs

Category
Utility
Engine Power Output
28hp
Operating Weight
2,400 lb
Transmission
Hydrostatic
Compare this model

At a glance

How the ST28A compares

vs. Utility median

Distribution

Engine Power (hp)

Across all Utility tractors

28.4 hp · 20th

This model

9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383

The ST28A ranks at the 20th percentile for engine power among recorded utility tractors.

Overview

About the AGCO ST28A

The AGCO ST28A is a utility tractor designed for various farm tasks. It's powered by a 3-cylinder Iseki diesel engine that produces 28.4 horsepower. This liquid-cooled engine has a displacement of 89.3 cubic inches and runs at 2500 rpm. The tractor's compact size, measuring 114.6 inches long, 49.6 inches wide, and 79 inches tall, makes it easy to maneuver in tight spaces. One of the ST28A's standout features is its hydrostatic transmission, which offers infinite forward and reverse gears for smooth operation. The tractor is equipped with hydrostatic power steering for easy control. It has a Category 1 hitch at the rear and an independent PTO with two speed options: 540 rpm at the rear and 2000 rpm in the middle. With an operating weight of 2400 pounds, this AGCO tractor is sturdy enough for most utility tasks while remaining lightweight and versatile.

Full specifications

Every recorded spec

General

ManufacturerAGCO
ModelST28A
CategoryUtility tractor
Operating weight2,400lb

Engine

MakeIseki
Power28.4hp
Cylinders3
Displacement89.3ci
Bore3.39in
Stroke3.3in

Transmission

TypeHydrostatic

Chassis & drive

SteeringHydrostatic Power

Power take-off

Rear PTOIndependent
PTO speed540rpm

Dimensions

Length114.6in
Width49.6in
Height79in
Operating weight2,400lb

Head to head

ST28A vs. Utility median

How the AGCO ST28A compares to other Utility tractors

SpecThis modelUtility medianDifferencePercentile
Engine Power28.4 hp55 hp-48%20th
Engine Displacement89.3 ci183 ci-51%15th
Cylinders34-25%23rd
Operating Weight2,400 lb5,303 lb-55%15th
Length115 in137 in-16%20th
Width49.6 in66 in-25%17th
Height79 in94.1 in-16%27th

Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).

Explore

AGCO siblings

All AGCO models →

Explore

Similar-spec models

FAQ

Common questions

What is the engine power output of the AGCO ST28A?

Rated engine output for the AGCO ST28A is 28.4 hp, delivered by a 3-cylinder engine. The engine displaces 89.3 ci.

Which transmission does the AGCO ST28A use?

The AGCO ST28A is equipped with a Hydrostatic transmission.

What is the operating weight of the AGCO ST28A?

In working trim, the AGCO ST28A comes in at roughly 2,400 lb.

How do I maintain a AGCO ST28A?

Routine service for the AGCO ST28A covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
