Agricultural tractorsSpec sheet
Lanz 500
The Lanz 500 is a versatile tractor designed for various farming tasks. It features a manual steering system and a constant mesh transmission with 10 forward gears and 3 reverse gears, giving farmers plenty of options for different jobs. Under the hood, the Lanz 500 boasts a John Deere engine. This liquid-cooled diesel engine has 4 cylinders and a displacement of 144.5 cubic inches. It can produce 42 horsepower at 2500 rpm, making it suitable for medium-sized farm operations. Interestingly, this engine is the same one used in the Deere 1010 tractor. The tractor weighs 4550 pounds and comes with a Category II/I hitch at the rear. It has a powerful PTO system with both rear and mid options, offering speeds of 540 and 1000 rpm. This feature allows farmers to use a wide range of attachments and implements, making the Lanz 500 a flexible choice for various agricultural needs.
ManufacturerLanzPower42 hp(31.3 kW)Class40–60 HP tractors →Engine4-cylinderTransmissionConstant mesh
Key specifications
- Category
- Agricultural
- Engine power
- 42hp
- Operating weight
- 4,550 lb
- Transmission
- Constant mesh
Category comparison
500 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
42 hp · 6th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 500 ranks at the 6th percentile for engine power among recorded agricultural tractors.
Overview
About the Lanz 500
The Lanz 500 is a versatile tractor designed for various farming tasks. It features a manual steering system and a constant mesh transmission with 10 forward gears and 3 reverse gears, giving farmers plenty of options for different jobs. Under the hood, the Lanz 500 boasts a John Deere engine. This liquid-cooled diesel engine has 4 cylinders and a displacement of 144.5 cubic inches. It can produce 42 horsepower at 2500 rpm, making it suitable for medium-sized farm operations. Interestingly, this engine is the same one used in the Deere 1010 tractor. The tractor weighs 4550 pounds and comes with a Category II/I hitch at the rear. It has a powerful PTO system with both rear and mid options, offering speeds of 540 and 1000 rpm. This feature allows farmers to use a wide range of attachments and implements, making the Lanz 500 a flexible choice for various agricultural needs.
Full specifications
Recorded specifications
General
| Manufacturer | Lanz |
|---|---|
| Model | 500 |
| Category | Agricultural tractor |
| Operating weight | 4,550lb(2,064 kg) |
Engine
| Make | John Deere |
|---|---|
| Power | 42hp(31.32 kW) |
| Cylinders | 4 |
| Displacement | 144.5ci(2.37 L) |
| Bore | 3.63in(92.07 mm) |
| Stroke | 3.5in(88.9 mm) |
Transmission
| Type | Constant mesh |
|---|---|
| Forward gears | 10 |
| Reverse gears | 3 |
Chassis & drive
| Steering | Manual |
|---|
Power take-off
| Rear PTO | Rear: 540/1000, Mid: 1000 |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Operating weight | 4,550lb(2,064 kg) |
|---|
Closest alternatives
500 compared with the nearest models by horsepower
The closest agricultural models to the Lanz 500 by rated horsepower are the McCormick-Deering T-35 and the John Deere 1445F. The McCormick-Deering T-35 matches it on rated power and weighs 6,050 lb more, so it carries more weight per horsepower, which helps traction in draft work. The John Deere 1445F is rated 0.6 hp lower and weighs 490 lb less, carrying 98 lb per horsepower against 108 lb.
| Spec | Lanz 500 | McCormick-Deering T-35 | John Deere 1445F |
|---|---|---|---|
| Engine power | 42 hp31.3 kW | 42.2 hp31.4 kW | 41.4 hp30.9 kW |
| Operating weight | 4,550 lb2,064 kg | 10,600 lb4,808 kg | 4,057 lb1,840 kg |
| Weight per hp | 108 lb/hp66 kg/kW | 251 lb/hp153 kg/kW | 98 lb/hp60 kg/kW |
| Displacement | 144.5 ci2.37 L | 278.7 ci4.57 L | 179.4 ci2.94 L |
| Cylinders | 4 | 6 | 3 |
| Transmission | Constant mesh | Gear | Synchronized |
| Drive | - | Track | 2WD |
Calculators
Calculators for the 500
PTO power
About 35 to 38 PTO hp
Estimated from the 42 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 42 hp tractor can run
Maximum size is about a 5 ft rotary cutter or a 4.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
126 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
42 hp is 31.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
500 vs. Agricultural median
Lanz 500 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 42 hp | 110 hp | -62% | 6th |
| Engine Displacement | 145 ci | 336 ci | -57% | 5th |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Forward Gears | 10 | 16 | -37% | 23rd |
| Operating Weight | 4,550 lb | 10,914 lb | -58% | 9th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 971–1,130 models).
Same manufacturer
Other Lanz models
Other manufacturers
Models with similar horsepower
Gallery

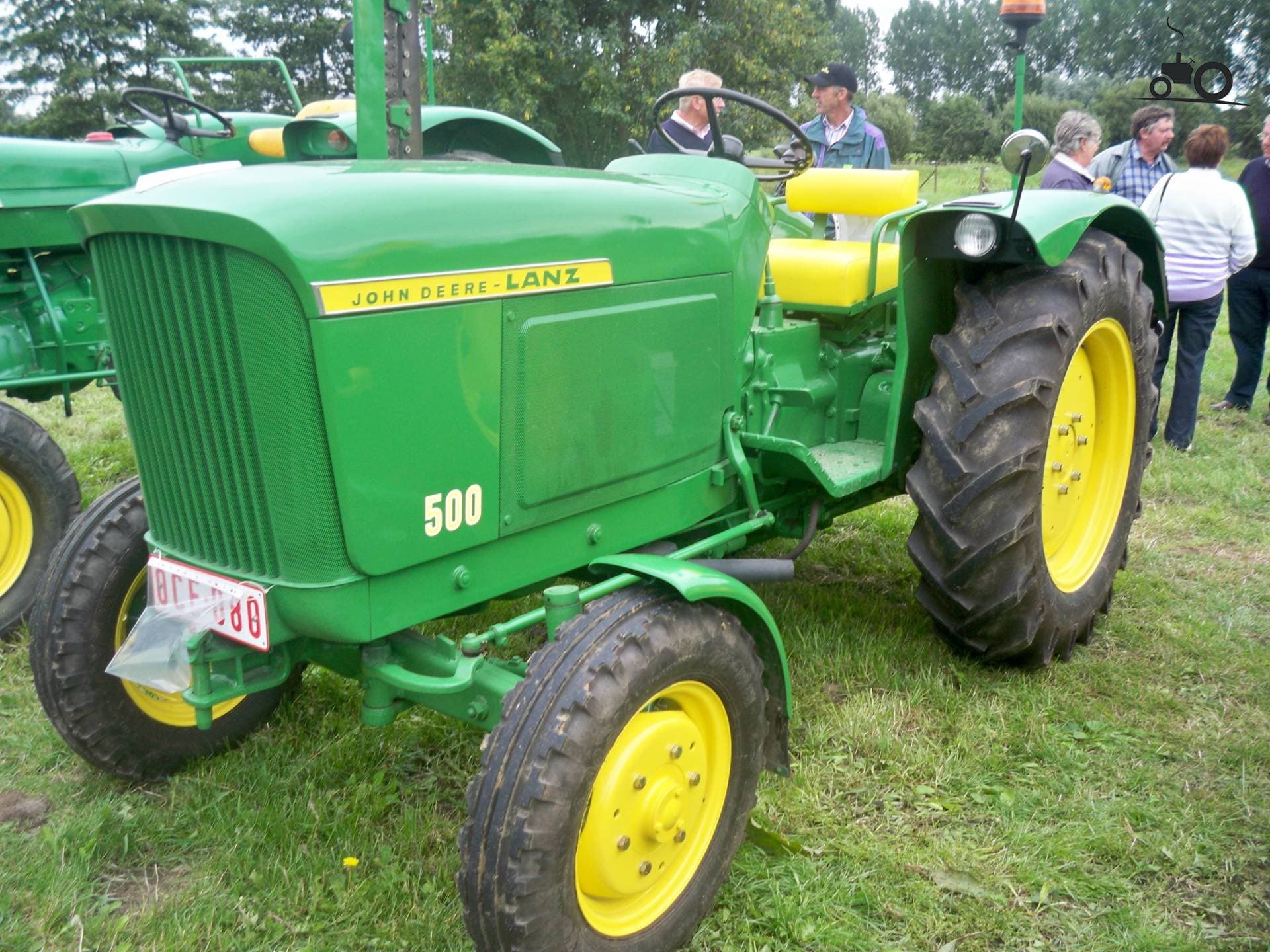

Lanz 500 photos
FAQ
Frequently asked questions
What is the engine power output of the Lanz 500?
Rated engine output for the Lanz 500 is 42 hp, delivered by a 4-cylinder engine. The engine displaces 144.5 ci.
Which transmission does the Lanz 500 use?
The Lanz 500 is equipped with a Constant mesh transmission with 10 forward gears.
What hitch category is the Lanz 500?
The Lanz 500 uses a Category 3 hitch.
What is the operating weight of the Lanz 500?
The Lanz 500 has an operating weight of about 4,550 lb.
How do I maintain a Lanz 500?
Routine service for the Lanz 500 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
