John Deere 1420
The John Deere 1420 is a compact tractor designed for orchards and vineyards. It's a 2WD model with a manual steering system and a 5-speed manual transmission. This tractor is small and nimble, perfect for working in tight spaces between rows of trees or vines. Under the hood, the John Deere 1420 has a 3-cylinder diesel engine made by John Deere itself. The engine is liquid-cooled and naturally aspirated, with a displacement of 164.5 ci, which is below average for tractors. It produces 43 hp at 2200 rpm, which is on the lower end of the power range for tractors. The tractor is quite light, weighing only 2350 lb, making it easy to maneuver without damaging delicate crops. It has a Category I hitch and an open center hydraulic system, allowing it to work with various attachments common in orchard and vineyard operations.
ManufacturerJohn DeerePower43 hpEngine3-cylTransManual
Quick specs
- Category
- Agricultural
- Engine Power Output
- 43hp
- Operating Weight
- 2,350 lb
- Transmission
- Manual
At a glance
How the 1420 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
43 hp · 7th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 1420 ranks at the 7th percentile for engine power among recorded agricultural tractors.
Overview
About the John Deere 1420
The John Deere 1420 is a compact tractor designed for orchards and vineyards. It's a 2WD model with a manual steering system and a 5-speed manual transmission. This tractor is small and nimble, perfect for working in tight spaces between rows of trees or vines. Under the hood, the John Deere 1420 has a 3-cylinder diesel engine made by John Deere itself. The engine is liquid-cooled and naturally aspirated, with a displacement of 164.5 ci, which is below average for tractors. It produces 43 hp at 2200 rpm, which is on the lower end of the power range for tractors. The tractor is quite light, weighing only 2350 lb, making it easy to maneuver without damaging delicate crops. It has a Category I hitch and an open center hydraulic system, allowing it to work with various attachments common in orchard and vineyard operations.
Full specifications
Every recorded spec
General
| Manufacturer | John Deere |
|---|---|
| Model | 1420 |
| Category | Agricultural tractor |
| Type | 4x2 |
| Operating weight | 2,350lb |
Engine
| Make | John Deere |
|---|---|
| Power | 43hp |
| Cylinders | 3 |
| Displacement | 164.5ci |
| Bore | 4.02in |
| Stroke | 4.33in |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 5 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
| Steering | Manual |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 133.5in |
|---|---|
| Width | 50in |
| Height | 52in |
| Operating weight | 2,350lb |
Capacities
| Cooling system | 2.65gal |
|---|
Head to head
1420 vs. Agricultural median
How the John Deere 1420 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 43 hp | 110 hp | -61% | 7th |
| Engine Displacement | 165 ci | 336 ci | -51% | 8th |
| Cylinders | 3 | 5.5 | -45% | 8th |
| Forward Gears | 5 | 16 | -69% | 7th |
| Operating Weight | 2,350 lb | 10,914 lb | -78% | 2nd |
| Length | 134 in | 173 in | -23% | 15th |
| Width | 50 in | 79.5 in | -37% | 12th |
| Height | 52 in | 111 in | -53% | 4th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 497–1,130 models).
Compare to tractors with similar specs
Commonly compared John Deere tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| John Deere 1020 VU | 44 hp | 3,770 lb | — | Compare → |
| John Deere 1445F | 41.4 hp | 4,057 lb | — | Compare → |
| John Deere 1546F | 45 hp | 4,905 lb | — | Compare → |
| John Deere 1030VU | 45.6 hp | — | — | Compare → |
| John Deere 930VU | 40.2 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5045 | 44 hp | 3,850 lb | 1981–1983 | Compare → |
| AGCO ST45 | 44.2 hp | 4,448 lb | — | Compare → |
| Ag King AK4540 | 45 hp | 4,650 lb | — | Compare → |
| Allis Chalmers ED40 | 41 hp | 3,527 lb | — | Compare → |
| Apollo 454 | 45 hp | 4,365 lb | — | Compare → |
Explore
John Deere siblings
Explore
Similar-spec models
Gallery

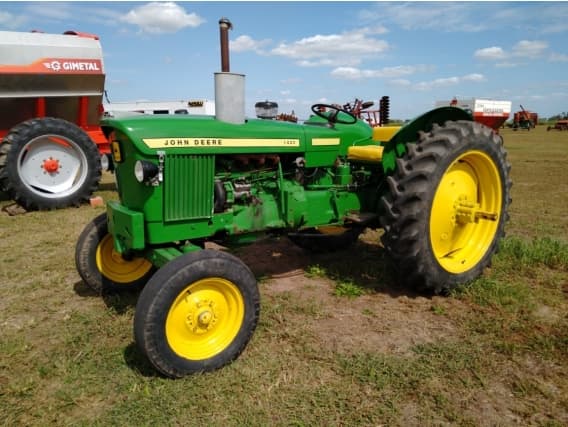

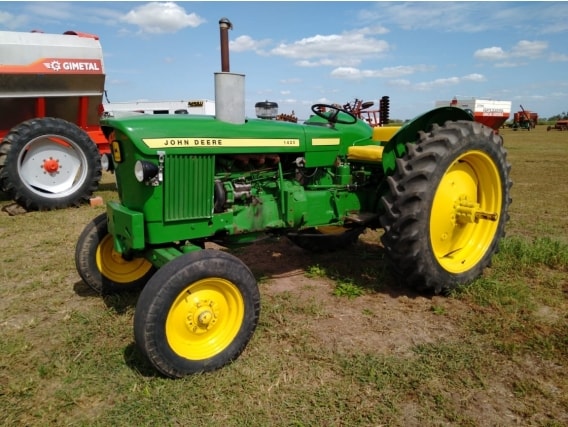

John Deere 1420 photos
FAQ
Common questions
How powerful is the John Deere 1420?
The John Deere 1420 has an engine power output of 43 hp. It is powered by a 3-cylinder engine displacing 164.5 ci.
What hitch category is the John Deere 1420?
The John Deere 1420 uses a Category I hitch.
What is the working weight of the John Deere 1420?
The operating weight of the John Deere 1420 is approximately 2,350 lb.
What type of transmission does the John Deere 1420 have?
The John Deere 1420 uses a Manual transmission offering 5 forward gears.
What type of hydraulic system does the John Deere 1420 use?
Hydraulics on the John Deere 1420 are Open Center.
What routine service does the John Deere 1420 need?
Regular maintenance for the John Deere 1420 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
