Sub-Compact tractorsSpec sheet
Lanz Alldog A1806
The Lanz Alldog A1806 is a compact 2WD tractor designed for small-scale farming and light agricultural work. It features a 4x2 chassis and a manual transmission with 6 forward gears and 1 reverse gear, offering good control for various tasks. Under the hood, the Alldog A1806 is powered by a MWM diesel engine. This liquid-cooled engine has 2 cylinders and a displacement of 76.28 cubic inches. It runs at 2000 rpm and produces 16 horsepower, making it suitable for lighter farm duties. The engine's bore measures 3.346 inches, while its stroke is 4.331 inches. With an operating weight of 3351 pounds, this tractor is relatively light and easy to maneuver in tight spaces. Overall, the Lanz Alldog A1806 is a basic, no-frills tractor that focuses on simplicity and functionality. It's well-suited for small farms, orchards, or as a secondary tractor for larger operations where a compact, lightweight machine is needed.
Key specifications
- Category
- Sub-Compact
- Engine power
- 16hp
- Operating weight
- 3,351 lb
- Transmission
- Manual
Category comparison
Alldog A1806 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
16 hp · 12th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The Alldog A1806 ranks at the 12th percentile for engine power among recorded sub-compact tractors.
Overview
About the Lanz Alldog A1806
The Lanz Alldog A1806 is a compact 2WD tractor designed for small-scale farming and light agricultural work. It features a 4x2 chassis and a manual transmission with 6 forward gears and 1 reverse gear, offering good control for various tasks. Under the hood, the Alldog A1806 is powered by a MWM diesel engine. This liquid-cooled engine has 2 cylinders and a displacement of 76.28 cubic inches. It runs at 2000 rpm and produces 16 horsepower, making it suitable for lighter farm duties. The engine's bore measures 3.346 inches, while its stroke is 4.331 inches. With an operating weight of 3351 pounds, this tractor is relatively light and easy to maneuver in tight spaces. Overall, the Lanz Alldog A1806 is a basic, no-frills tractor that focuses on simplicity and functionality. It's well-suited for small farms, orchards, or as a secondary tractor for larger operations where a compact, lightweight machine is needed.
Full specifications
Recorded specifications
General
| Manufacturer | Lanz |
|---|---|
| Model | Alldog A1806 |
| Category | Sub-Compact tractor |
| Type | 4x2 2WD |
| Operating weight | 3,351lb(1,520 kg) |
Engine
| Make | MWM |
|---|---|
| Power | 16hp(11.93 kW) |
| Cylinders | 2 |
| Displacement | 76.28ci(1.25 L) |
| Bore | 3.35in(84.99 mm) |
| Stroke | 4.33in(110 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 6 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Operating weight | 3,351lb(1,520 kg) |
|---|
Closest alternatives
Alldog A1806 compared with the nearest models by horsepower
The closest sub-compact models to the Lanz Alldog A1806 by rated horsepower are the Yanmar AF116 and the Kubota B1-15. The Yanmar AF116 matches it on rated power and weighs 1,900 lb less, carrying 91 lb per horsepower against 209 lb. The Kubota B1-15 matches it on rated power and weighs 2,120 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the Alldog A1806 has the highest weight per horsepower at 209 lb per hp.
| Spec | Lanz Alldog A1806 | Yanmar AF116 | Kubota B1-15 |
|---|---|---|---|
| Engine power | 16 hp11.9 kW | 16 hp11.9 kW | 16 hp11.9 kW |
| Operating weight | 3,351 lb1,520 kg | 1,455 lb660 kg | 1,235 lb560 kg |
| Weight per hp | 209 lb/hp127 kg/kW | 91 lb/hp55 kg/kW | 77 lb/hp47 kg/kW |
| Displacement | 76.3 ci1.25 L | 58.1 ci0.95 L | 52.2 ci0.86 L |
| Cylinders | 2 | 3 | 3 |
| Transmission | Manual | - | Unsynchronized gear |
| Drive | 2WD | 4WD | 2WD |
| Years built | - | 2002-2005 | 1985-1988 |
Calculators
Calculators for the Alldog A1806
PTO power
About 13 to 14 PTO hp
Estimated from the 16 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 16 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
244 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
16 hp is 11.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Alldog A1806 vs. Sub-Compact median
Lanz Alldog A1806 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 16 hp | 26.9 hp | -40% | 12th |
| Engine Displacement | 76.3 ci | 91.4 ci | -17% | 36th |
| Cylinders | 2 | 3 | -33% | 11th |
| Forward Gears | 6 | 9 | -33% | 18th |
| Operating Weight | 3,351 lb | 2,700 lb | +24% | 63rd |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 616–816 models).
Same manufacturer
Other Lanz models
Other manufacturers
Models with similar horsepower
Gallery

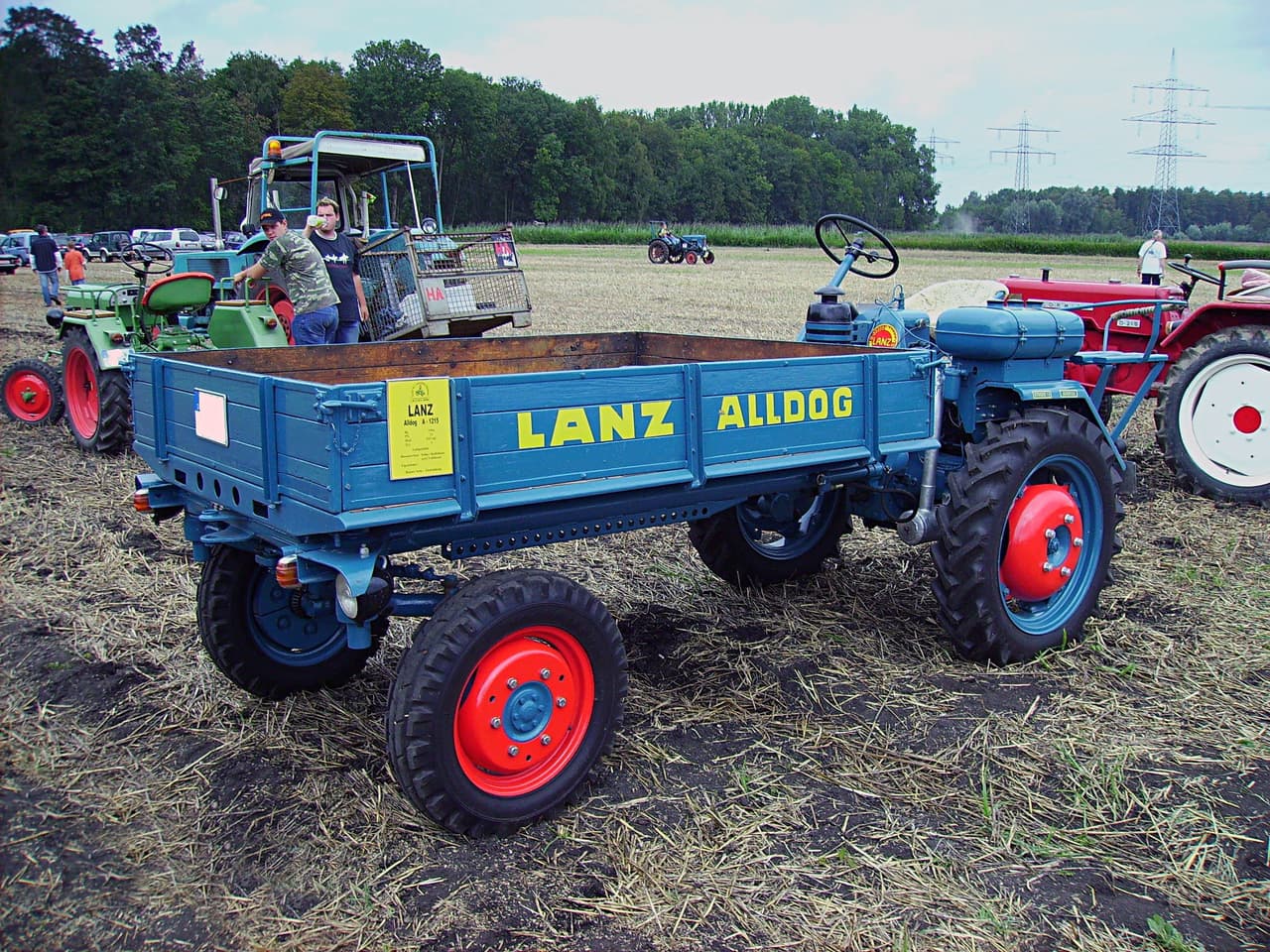

Lanz Alldog A1806 photos
FAQ
Frequently asked questions
How powerful is the Lanz Alldog A1806?
The Lanz Alldog A1806 has an engine power output of 16 hp. It is powered by a 2-cylinder engine displacing 76.28 ci.
What is the working weight of the Lanz Alldog A1806?
The operating weight of the Lanz Alldog A1806 is approximately 3,351 lb.
What type of transmission does the Lanz Alldog A1806 have?
The Lanz Alldog A1806 uses a Manual transmission offering 6 forward gears.
What routine service does the Lanz Alldog A1806 need?
Regular maintenance for the Lanz Alldog A1806 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
