Sub-CompactPerformance profile
Lanz 200
The Lanz 200 is a compact and versatile tractor made by Lanz, which is now part of John Deere. It's powered by a John Deere diesel engine with two cylinders and 25 horsepower. The engine is liquid-cooled and has a displacement of 82.4 cubic inches. This tractor is built for efficiency, with a rated engine speed of 2500 rpm. The Lanz 200 features a gear transmission with 6 forward gears and 2 reverse gears, giving farmers good control over their work. It has a 540/1000 PTO, which means it can run at either 540 or 1000 rpm to power various attachments. The tractor is compact, measuring 122.8 inches long, 60 inches wide, and 56.5 inches high. Despite its small size, it's quite sturdy, weighing 3255 pounds. It runs on agricultural tires and has an electric starter for easy operation. With these features, the Lanz 200 is well-suited for a range of farming tasks.
ManufacturerLanzPower25 hpEngine2-cylTransGear
Quick specs
- Category
- Sub-Compact
- Engine Power Output
- 25hp
- Operating Weight
- 3,255 lb
- Transmission
- Gear
At a glance
How the 200 compares
vs. Sub-Compact medianDistribution
Engine Power (hp)
Across all Sub-Compact tractors
25 hp · 46th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The 200 ranks at the 46th percentile for engine power among recorded sub-compact tractors.
Overview
About the Lanz 200
The Lanz 200 is a compact and versatile tractor made by Lanz, which is now part of John Deere. It's powered by a John Deere diesel engine with two cylinders and 25 horsepower. The engine is liquid-cooled and has a displacement of 82.4 cubic inches. This tractor is built for efficiency, with a rated engine speed of 2500 rpm. The Lanz 200 features a gear transmission with 6 forward gears and 2 reverse gears, giving farmers good control over their work. It has a 540/1000 PTO, which means it can run at either 540 or 1000 rpm to power various attachments. The tractor is compact, measuring 122.8 inches long, 60 inches wide, and 56.5 inches high. Despite its small size, it's quite sturdy, weighing 3255 pounds. It runs on agricultural tires and has an electric starter for easy operation. With these features, the Lanz 200 is well-suited for a range of farming tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Lanz |
|---|---|
| Model | 200 |
| Category | Sub-Compact tractor |
| Operating weight | 3,255lb |
Engine
| Make | John Deere |
|---|---|
| Power | 25hp |
| Cylinders | 2 |
| Displacement | 82.4ci |
| Bore | 3.88in |
| Stroke | 3.5in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 6 |
| Reverse gears | 2 |
Power take-off
| Rear PTO | 540/1000 |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 122.8in |
|---|---|
| Width | 60in |
| Height | 56.5in |
| Operating weight | 3,255lb |
Capacities
| Cooling system | 1.65gal |
|---|
Head to head
200 vs. Sub-Compact median
How the Lanz 200 compares to other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 25 hp | 26.9 hp | -7% | 46th |
| Engine Displacement | 82.4 ci | 91.4 ci | -10% | 43rd |
| Cylinders | 2 | 3 | -33% | 11th |
| Forward Gears | 6 | 9 | -33% | 18th |
| Operating Weight | 3,255 lb | 2,700 lb | +21% | 61st |
| Length | 123 in | 113 in | +8% | 65th |
| Width | 60 in | 50.7 in | +18% | 74th |
| Height | 56.5 in | 78.4 in | -28% | 18th |
Medians and percentiles are computed from the sub-compact tractors in our database with a recorded value for each spec (sample sizes 584–816 models).
Compare to tractors with similar specs
Commonly compared Lanz tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Lanz Bulldog D2402 | 24 hp | — | — | Compare → |
| Lanz Bulldog D2803 | 28 hp | — | — | Compare → |
| Lanz 100 | 18 hp | 2,750 lb | — | Compare → |
| Lanz Alldog A1806 | 16 hp | 3,351 lb | — | Compare → |
| Lanz Bulldog D5506 | 15 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers 5020 | 25 hp | 2,060 lb | 1977–1985 | Compare → |
| Allis Chalmers FD3 | 25 hp | 3,150 lb | — | Compare → |
| Apollo 254 | 25 hp | — | — | Compare → |
| Belarus 254 | 25 hp | — | — | Compare → |
| Bobcat CT1025 | 24.5 hp | 1,488 lb | — | Compare → |
Explore
Lanz siblings
Explore
Similar-spec models
Gallery

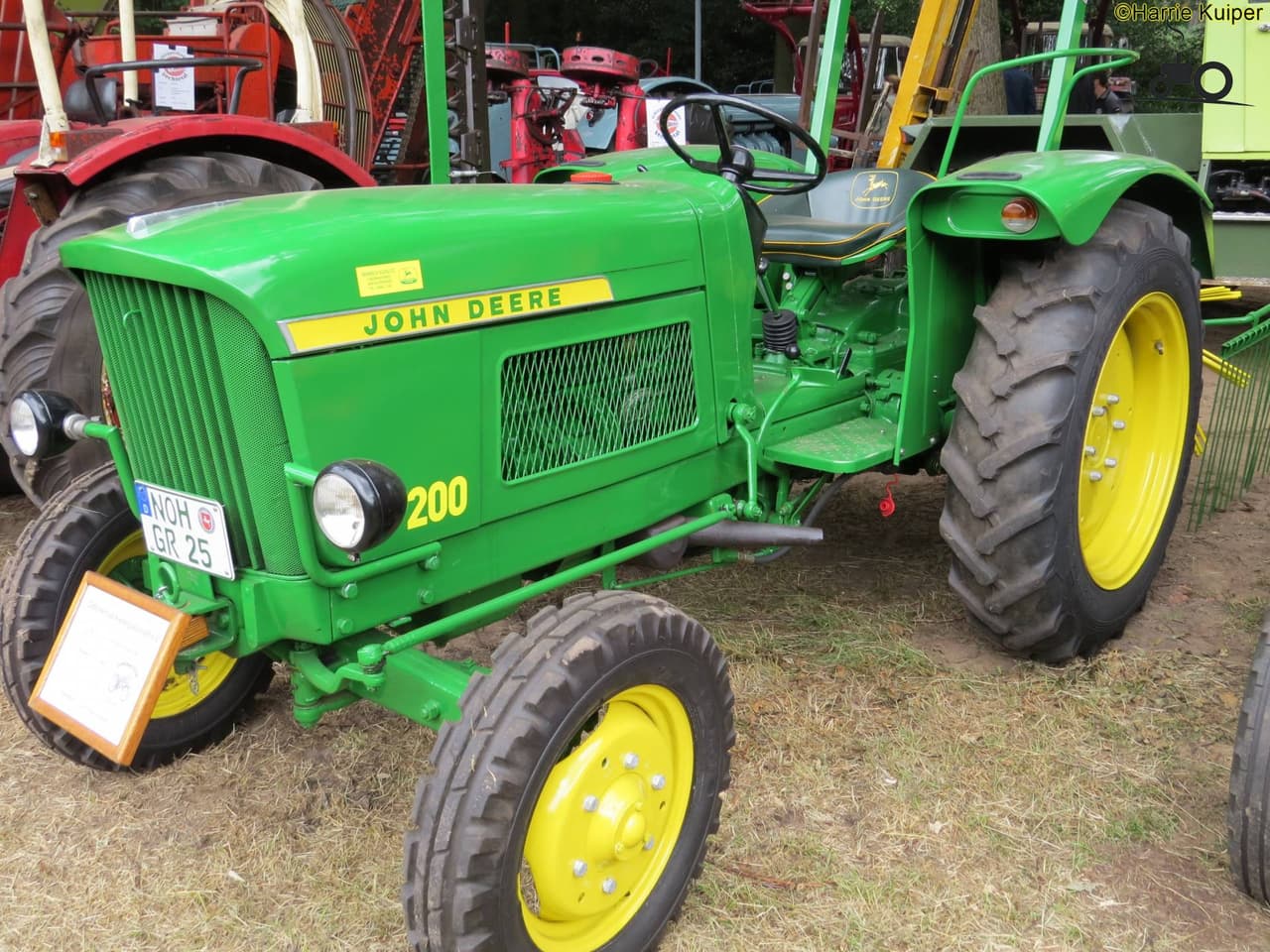

Lanz 200 photos
FAQ
Common questions
What is the engine power output of the Lanz 200?
Rated engine output for the Lanz 200 is 25 hp, delivered by a 2-cylinder engine. The engine displaces 82.4 ci.
What is the operating weight of the Lanz 200?
In working trim, the Lanz 200 comes in at roughly 3,255 lb.
Which transmission does the Lanz 200 use?
The Lanz 200 is equipped with a Gear transmission with 6 forward gears.
How do I maintain a Lanz 200?
Routine service for the Lanz 200 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
