LS P7010

LS P7010

Complete specifications and technical data for the LS P7010. Compare with similar tractors from LS and other manufacturers.

Quick Specs

Category

Utility

Engine Power Output

72hp

Operating Weight

6,675 lb

Transmission

Synchro Shuttle

The LS P7010 is a utility tractor built for tough farm work. It has a strong 4x4 drive system and power steering, making it easy to handle in fields. The tractor comes with a 20-speed transmission tha...

Photo Gallery

Image Gallery

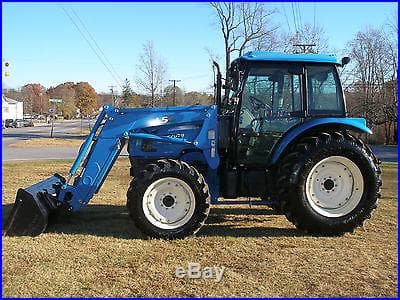

LS P7010 Tractor

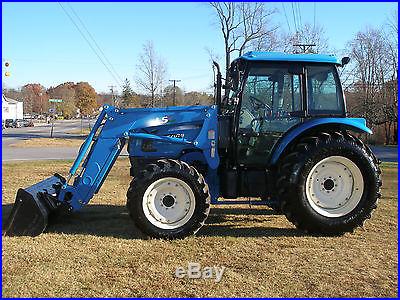

LS P7010 Tractor
LS P7010 Tractor

Specifications

Manufacturer
LS
Model
P7010
Category
Utility
Manufacturer
Iveco
Model
FPT F5C
Power Output
72hp
Rated RPM
2,300RPM
Cylinders
4
Displacement
195.3ci
Bore
3.9in
Stroke
4.09in

Engine Power Output Comparison of LS P7010 vs. Other Utility Tractors

Loading Chart...

Type
Synchro Shuttle
Length
157.1in
Width
77.8in
Height
102.3in
Operating Weight
6,675lb

Operating Weight Comparison of LS P7010 vs. Other Utility Tractors

Loading Chart...

Front Tire Size
11.2-24
Rear
16.9-30
Hitch Type
Cat. II
Chassis Type
4x4 MFWD 4WD
Drive Type
MFWD
Steering Type
Power Steering
Type
Cab

Compare to Other Tractors

Frequently Asked Questions

What is the engine power output of the LS P7010?

The LS P7010 has an engine power output of 72 hp.

How many cylinders does the LS P7010 have?

The LS P7010 is equipped with a 4-cylinder engine.

What is the operating weight of the LS P7010?

The operating weight of the LS P7010 is approximately 6,675 lb.

What type of transmission does the LS P7010 have?

The LS P7010 is equipped with a Synchro Shuttle transmission.

What size tires does the LS P7010 use?

The LS P7010 comes with 11.2-24 front tires and 16.9-30 rear tires.

What maintenance does the LS P7010 require?

Regular maintenance for the LS P7010 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
