Same brandUtility tractorsSpec sheet
LS PS70
The LS PS70 is a versatile utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by FPT. This engine is turbocharged and intercooled, giving it extra power. With 71 horsepower, it's above average in its class. The engine size is also above average at 195 cubic inches. This tractor is very flexible, with 40 forward and 40 reverse gears. It has four-wheel drive and hydrostatic power steering, making it easy to control. The PS70 is quite heavy for its size, weighing 6,363 pounds. This weight helps it handle big jobs. It can come with either a roll-over protection structure (ROPS) or a cab, so farmers can choose what suits them best. The three-point hitch is category II, good for attaching many types of farm tools. With its mix of power and features, the LS PS70 is a solid choice for farmers who need a reliable, mid-sized tractor.
Key specifications
- Category
- Utility
- Engine power
- 71hp
- Operating weight
- 6,363 lb
Category comparison
PS70 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
71 hp · 64th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The PS70 ranks at the 64th percentile for engine power among recorded utility tractors.
Overview
About the LS PS70
The LS PS70 is a versatile utility tractor built for tough farm work. It has a strong 4-cylinder diesel engine made by FPT. This engine is turbocharged and intercooled, giving it extra power. With 71 horsepower, it's above average in its class. The engine size is also above average at 195 cubic inches. This tractor is very flexible, with 40 forward and 40 reverse gears. It has four-wheel drive and hydrostatic power steering, making it easy to control. The PS70 is quite heavy for its size, weighing 6,363 pounds. This weight helps it handle big jobs. It can come with either a roll-over protection structure (ROPS) or a cab, so farmers can choose what suits them best. The three-point hitch is category II, good for attaching many types of farm tools. With its mix of power and features, the LS PS70 is a solid choice for farmers who need a reliable, mid-sized tractor.
Full specifications
Recorded specifications
General
| Manufacturer | LS |
|---|---|
| Model | PS70 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 6,363lb(2,886 kg) |
Engine
| Make | FPT |
|---|---|
| Model | F5C |
| Power | 71hp(52.94 kW) |
| Cylinders | 4 |
| Displacement | 195ci(3.2 L) |
| Bore | 3.9in(99.01 mm) |
| Stroke | 4.09in(104 mm) |
Transmission
| Forward gears | 40 |
|---|---|
| Reverse gears | 40 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD |
| Steering | Hydrostatic power |
| Cab | ROPS or Cab |
Dimensions
| Length | 157.1in(3,990 mm) |
|---|---|
| Width | 77.8in(1,976 mm) |
| Operating weight | 6,363lb(2,886 kg) |
Closest alternatives
PS70 compared with the nearest models by horsepower
The closest utility models to the LS PS70 by rated horsepower are the Kubota M7060HDRC12 and the Kubota M7060. The Kubota M7060HDRC12 matches it on rated power and weighs 1,340 lb less, carrying 71 lb per horsepower against 90 lb. The Kubota M7060 matches it on rated power.
| Spec | LS PS70 | Kubota M7060HDRC12 | Kubota M7060 |
|---|---|---|---|
| Engine power | 71 hp52.9 kW | 71 hp52.9 kW | 71 hp52.9 kW |
| Operating weight | 6,363 lb2,886 kg | 5,027 lb2,280 kg | - |
| Weight per hp | 90 lb/hp55 kg/kW | 71 lb/hp43 kg/kW | - |
| Displacement | 195 ci3.2 L | 203 ci3.33 L | 203.3 ci3.33 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | - | HD12 | Power Shuttle with Wet Disc Clutch |
| Drive | MFWD | - | 4WD |
| Years built | - | 2015+ | 2013+ |
Calculators
Calculators for the PS70
PTO power
About 59 to 64 PTO hp
Estimated from the 71 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 71 hp tractor can run
Maximum size is about a 8.5 ft rotary cutter or a 7 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
104 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
71 hp is 52.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
PS70 vs. Utility median
LS PS70 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 71 hp | 55 hp | +29% | 64th |
| Engine Displacement | 195 ci | 183 ci | +6% | 52nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 40 | 12 | +233% | 99th |
| Operating Weight | 6,363 lb | 5,303 lb | +20% | 60th |
| Length | 157 in | 137 in | +15% | 74th |
| Width | 77.8 in | 66 in | +18% | 77th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other LS models
Other manufacturers
Models with similar horsepower
Gallery

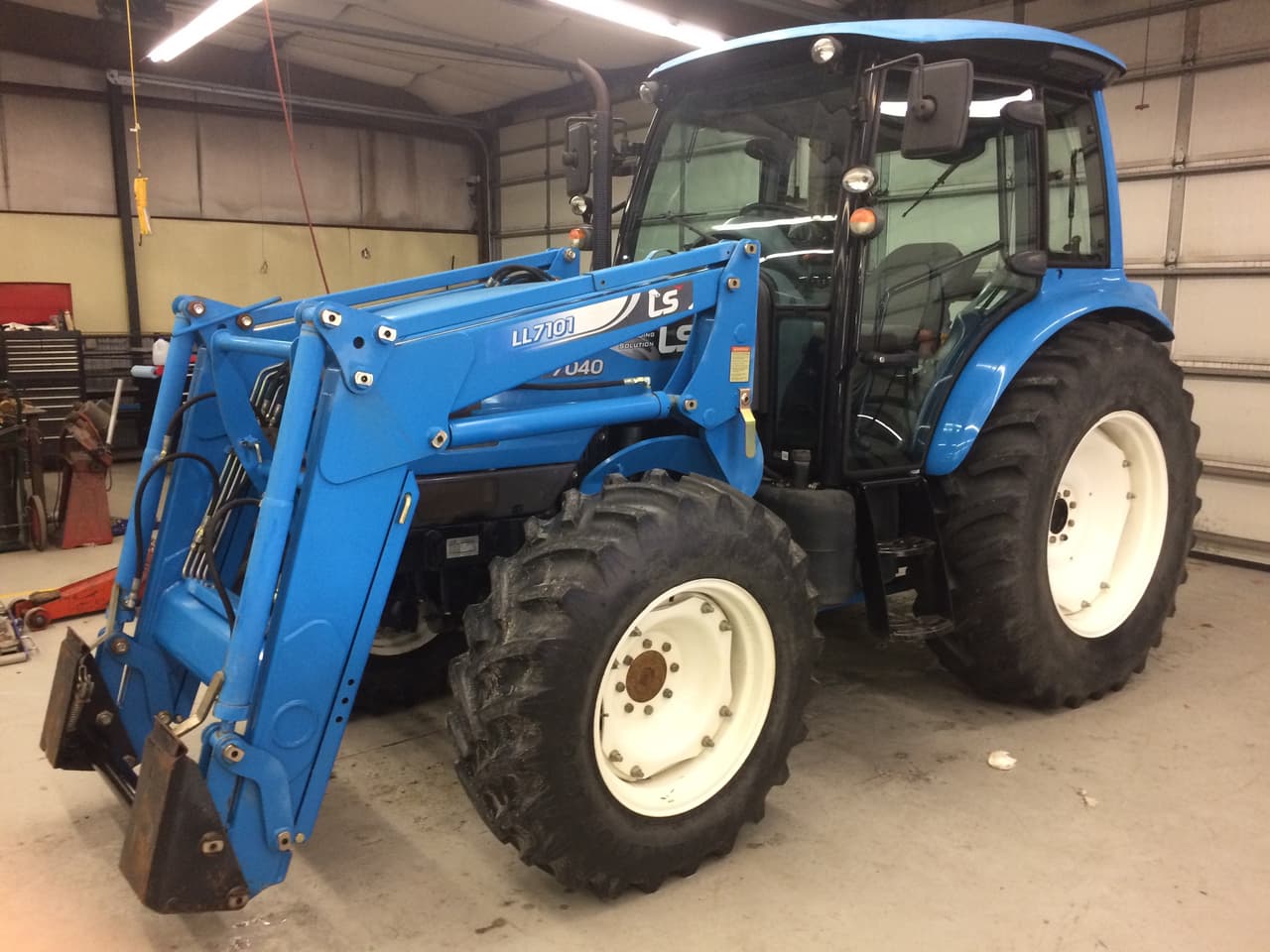

LS PS70 photos
FAQ
Frequently asked questions
How powerful is the LS PS70?
The LS PS70 has an engine power output of 71 hp. It is powered by a 4-cylinder engine displacing 195 ci.
What is the working weight of the LS PS70?
The operating weight of the LS PS70 is approximately 6,363 lb.
What three-point hitch category does the LS PS70 use?
The LS PS70 has a Category II three-point hitch.
What routine service does the LS PS70 need?
Regular maintenance for the LS PS70 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
