UtilityPerformance profile
LS PS90

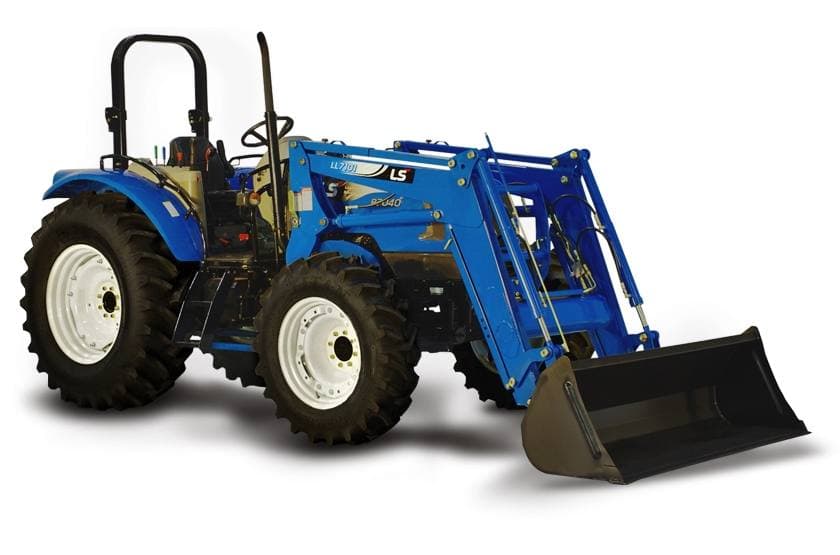

The LS PS90 is a powerful utility tractor built for tough farm work. It has a strong 87 hp engine made by FPT, which is above average for tractors in its class. The engine has 4 cylinders and uses diesel fuel. It's turbocharged and intercooled, which helps it work hard without overheating. This tractor is designed for versatility with its 4-wheel drive system and hydrostatic power steering. It has a synchronized shuttle transmission with 20 forward and 20 reverse gears, giving the driver lots of options for different tasks. The PS90 is a good size for many farms, measuring 157.1 inches long, 79.5 inches wide, and 105.4 inches tall. It weighs 6,411 pounds, which is about average for similar tractors. The tractor has a rear hitch rated as Category II, making it compatible with many farm implements.
ManufacturerLSPower87 hpEngine4-cylTransSynchronized shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 87hp
- Operating Weight
- 6,411 lb
- Transmission
- Synchronized shuttle
At a glance
How the PS90 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
87 hp · 76th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The PS90 ranks at the 76th percentile for engine power among recorded utility tractors.
Overview
About the LS PS90
The LS PS90 is a powerful utility tractor built for tough farm work. It has a strong 87 hp engine made by FPT, which is above average for tractors in its class. The engine has 4 cylinders and uses diesel fuel. It's turbocharged and intercooled, which helps it work hard without overheating. This tractor is designed for versatility with its 4-wheel drive system and hydrostatic power steering. It has a synchronized shuttle transmission with 20 forward and 20 reverse gears, giving the driver lots of options for different tasks. The PS90 is a good size for many farms, measuring 157.1 inches long, 79.5 inches wide, and 105.4 inches tall. It weighs 6,411 pounds, which is about average for similar tractors. The tractor has a rear hitch rated as Category II, making it compatible with many farm implements.
Full specifications
Every recorded spec
General
| Manufacturer | LS |
|---|---|
| Model | PS90 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 6,411lb |
Engine
| Make | FPT |
|---|---|
| Model | F5C |
| Power | 87hp |
| Cylinders | 4 |
| Displacement | 195ci |
| Bore | 3.9in |
| Stroke | 4.09in |
Transmission
| Type | Synchronized shuttle |
|---|---|
| Forward gears | 20 |
| Reverse gears | 20 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD |
| Steering | Hydrostatic power |
| Cab | ROPS |
Dimensions
| Length | 157.1in |
|---|---|
| Width | 79.5in |
| Height | 105.4in |
| Operating weight | 6,411lb |
Head to head
PS90 vs. Utility median
How the LS PS90 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 87 hp | 55 hp | +58% | 76th |
| Engine Displacement | 195 ci | 183 ci | +6% | 52nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 20 | 12 | +67% | 86th |
| Operating Weight | 6,411 lb | 5,303 lb | +21% | 61st |
| Length | 157 in | 137 in | +15% | 74th |
| Width | 79.5 in | 66 in | +20% | 81st |
| Height | 105 in | 94.1 in | +12% | 78th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared LS tractors
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Mach 2 | 87 hp | 6,504 lb | — | Compare → |
| Antonio Carraro Mach 4 | 87 hp | 6,725 lb | — | Compare → |
| Antonio Carraro SRH 9800 Infinity | 87 hp | — | — | Compare → |
| Antonio Carraro SRX 9800 | 87 hp | 4,850 lb | — | Compare → |
| Antonio Carraro SX 9400S | 87 hp | 4,707 lb | — | Compare → |
Explore
LS siblings
Explore
Similar-spec models
Gallery
LS PS90 photos
FAQ
Common questions
What is the engine power output of the LS PS90?
Rated engine output for the LS PS90 is 87 hp, delivered by a 4-cylinder engine. The engine displaces 195 ci.
Which transmission does the LS PS90 use?
The LS PS90 is equipped with a Synchronized shuttle transmission with 20 forward gears.
What three-point hitch category does the LS PS90 use?
The LS PS90 has a Category II three-point hitch.
What is the operating weight of the LS PS90?
In working trim, the LS PS90 comes in at roughly 6,411 lb.
How do I maintain a LS PS90?
Routine service for the LS PS90 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
