Utility tractorsSpec sheet
LS XR4046H
The LS XR4046H is a utility tractor built for versatility and power. It features a 4x4 MFWD chassis and hydrostatic power steering, making it easy to handle in various conditions. The tractor is equipped with a hydrostatic transmission that offers infinite forward and reverse speeds in three ranges, giving operators precise control. Under the hood, the XR4046H boasts a Shibaura N844L-F engine. This 4-cylinder diesel engine is liquid-cooled and has an average displacement of 135.2 ci. It delivers 46 hp at 2600 rpm, which is about average for its class. The tractor's compact size, measuring 129.4 inches long and 62.4 inches wide, makes it suitable for working in tight spaces. Weighing 3870 lb, it's on the lighter side for utility tractors. The XR4046H comes with a Category I hitch and offers various tire options for agricultural, lawn/turf, and industrial use, adding to its versatility.
Key specifications
- Category
- Utility
- Engine power
- 46hp
- Operating weight
- 3,870 lb
- Transmission
- Hydrostatic
Category comparison
XR4046H compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
46 hp · 40th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The XR4046H ranks at the 40th percentile for engine power among recorded utility tractors.
Overview
About the LS XR4046H
The LS XR4046H is a utility tractor built for versatility and power. It features a 4x4 MFWD chassis and hydrostatic power steering, making it easy to handle in various conditions. The tractor is equipped with a hydrostatic transmission that offers infinite forward and reverse speeds in three ranges, giving operators precise control. Under the hood, the XR4046H boasts a Shibaura N844L-F engine. This 4-cylinder diesel engine is liquid-cooled and has an average displacement of 135.2 ci. It delivers 46 hp at 2600 rpm, which is about average for its class. The tractor's compact size, measuring 129.4 inches long and 62.4 inches wide, makes it suitable for working in tight spaces. Weighing 3870 lb, it's on the lighter side for utility tractors. The XR4046H comes with a Category I hitch and offers various tire options for agricultural, lawn/turf, and industrial use, adding to its versatility.
Full specifications
Recorded specifications
General
| Manufacturer | LS |
|---|---|
| Model | XR4046H |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,870lb(1,755 kg) |
Engine
| Make | Shibaura |
|---|---|
| Model | N844L-F |
| Power | 46hp(34.3 kW) |
| Cylinders | 4 |
| Displacement | 135.2ci(2.22 L) |
| Bore | 3.31in(84 mm) |
| Stroke | 3.94in(100 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
| Cab | ROPS |
Dimensions
| Length | 129.4in(3,287 mm) |
|---|---|
| Width | 62.4in(1,585 mm) |
| Operating weight | 3,870lb(1,755 kg) |
Closest alternatives
XR4046H compared with the nearest models by horsepower
Among utility tractors, the LS XR4046 and the John Deere 3046R are closest to the LS XR4046H in rated horsepower. The LS XR4046 matches it on rated power at almost the same operating weight. The John Deere 3046R matches it on rated power and weighs 970 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the XR4046H has the highest weight per horsepower at 84 lb per hp.
| Spec | LS XR4046H | LS XR4046 | John Deere 3046R |
|---|---|---|---|
| Engine power | 46 hp34.3 kW | 46 hp34.3 kW | 46 hp34.3 kW |
| Operating weight | 3,870 lb1,755 kg | 3,870 lb1,755 kg | 2,900 lb1,315 kg |
| Weight per hp | 84 lb/hp51 kg/kW | 84 lb/hp51 kg/kW | 63 lb/hp38 kg/kW |
| Displacement | 135.2 ci2.22 L | 135.2 ci2.22 L | 97.6 ci1.6 L |
| Cylinders | 4 | 4 | 3 |
| Transmission | Hydrostatic | Synchro shuttle | Hydrostatic |
| Drive | 4WD | 4WD | 4WD |
Calculators
Calculators for the XR4046H
PTO power
About 38 to 41 PTO hp
Estimated from the 46 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 46 hp tractor can run
Maximum size is about a 5.5 ft rotary cutter or a 4.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
98 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
46 hp is 34.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
XR4046H vs. Utility median
LS XR4046H compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 46 hp | 55 hp | -16% | 40th |
| Engine Displacement | 135 ci | 183 ci | -26% | 33rd |
| Cylinders | 4 | 4 | at median | 50th |
| Operating Weight | 3,870 lb | 5,303 lb | -27% | 35th |
| Length | 129 in | 137 in | -5% | 40th |
| Width | 62.4 in | 66 in | -5% | 42nd |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other LS models
Other manufacturers
Models with similar horsepower
Gallery

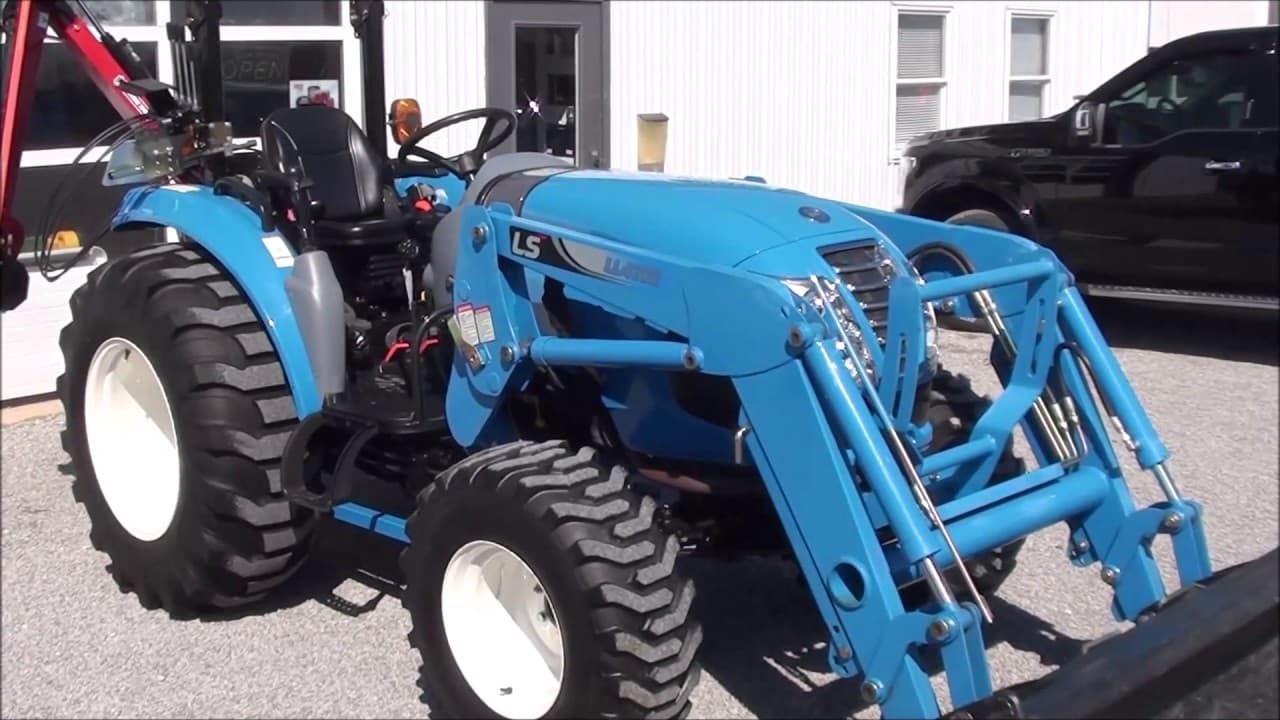

LS XR4046H photos
FAQ
Frequently asked questions
How powerful is the LS XR4046H?
The LS XR4046H has an engine power output of 46 hp. It is powered by a 4-cylinder engine displacing 135.2 ci.
What three-point hitch category does the LS XR4046H use?
The LS XR4046H has a Category I three-point hitch.
What is the working weight of the LS XR4046H?
The operating weight of the LS XR4046H is approximately 3,870 lb.
What type of transmission does the LS XR4046H have?
The LS XR4046H uses a Hydrostatic transmission.
What routine service does the LS XR4046H need?
Regular maintenance for the LS XR4046H includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
