Mahindra 5145
The Mahindra 5145 is a powerful and versatile tractor designed for various farming tasks. It features a 45 hp diesel engine with four cylinders and direct injection, providing strong performance for its size. The engine is liquid-cooled, which helps keep it running smoothly even during long work days. This tractor comes with a sync shuttle transmission, offering 12 forward and 12 reverse gears. This gives operators plenty of options for different jobs and speeds. The 5145 has power steering, making it easier to control and reducing driver fatigue. It's equipped with a three-point hitch at the rear, which is great for attaching various implements. The tractor's open center hydraulic system adds to its flexibility for different tasks. With a length of 136.6 inches, width of 74.8 inches, and height of 60.6 inches, it's a good size for many farms. The operating weight of 5390 lb gives it stability for tough jobs. The 15.2-inch ground clearance helps it navigate rough terrain easily.
ManufacturerMahindraPower45 hp(33.6 kW)Class40–60 HP tractors →Engine4-cylinderTransmissionSync shuttle
Key specifications
- Category
- Utility
- Engine power
- 45hp
- Operating weight
- 5,390 lb
- Transmission
- Sync shuttle
Category comparison
5145 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
45 hp · 39th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5145 ranks at the 39th percentile for engine power among recorded utility tractors.
Overview
About the Mahindra 5145
The Mahindra 5145 is a powerful and versatile tractor designed for various farming tasks. It features a 45 hp diesel engine with four cylinders and direct injection, providing strong performance for its size. The engine is liquid-cooled, which helps keep it running smoothly even during long work days. This tractor comes with a sync shuttle transmission, offering 12 forward and 12 reverse gears. This gives operators plenty of options for different jobs and speeds. The 5145 has power steering, making it easier to control and reducing driver fatigue. It's equipped with a three-point hitch at the rear, which is great for attaching various implements. The tractor's open center hydraulic system adds to its flexibility for different tasks. With a length of 136.6 inches, width of 74.8 inches, and height of 60.6 inches, it's a good size for many farms. The operating weight of 5390 lb gives it stability for tough jobs. The 15.2-inch ground clearance helps it navigate rough terrain easily.
Full specifications
Recorded specifications
General
| Manufacturer | Mahindra |
|---|---|
| Model | 5145 |
| Category | Utility tractor |
| Operating weight | 5,390lb(2,445 kg) |
Engine
| Make | Mahindra |
|---|---|
| Power | 45hp(33.56 kW) |
| Cylinders | 4 |
| Displacement | 166.7ci(2.73 L) |
| Bore | 3.5in(88.9 mm) |
| Stroke | 4.33in(110 mm) |
Transmission
| Type | Sync shuttle |
|---|---|
| Forward gears | 12 |
| Reverse gears | 12 |
Chassis & drive
| Steering | Power |
|---|
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 136.6in(3,470 mm) |
|---|---|
| Width | 74.8in(1,900 mm) |
| Height | 60.6in(1,539 mm) |
| Operating weight | 5,390lb(2,445 kg) |
Closest alternatives
5145 compared with the nearest models by horsepower
Among utility tractors, the Mahindra 450 and the Mahindra 4510 are closest to the Mahindra 5145 in rated horsepower. The Mahindra 450 matches it on rated power and weighs 1,530 lb less, carrying 86 lb per horsepower against 120 lb. The Mahindra 4510 matches it on rated power and weighs 650 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. Of the 3 models, the 5145 has the highest weight per horsepower at 120 lb per hp.
| Spec | Mahindra 5145 | Mahindra 450 | Mahindra 4510 |
|---|---|---|---|
| Engine power | 45 hp33.6 kW | 45 hp33.6 kW | 45 hp33.6 kW |
| Operating weight | 5,390 lb2,445 kg | 3,858 lb1,750 kg | 4,737 lb2,149 kg |
| Weight per hp | 120 lb/hp73 kg/kW | 86 lb/hp52 kg/kW | 105 lb/hp64 kg/kW |
| Displacement | 166.7 ci2.73 L | 154 ci2.52 L | 133.7 ci2.19 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Sync shuttle | - | Synchro shuttle |
| Drive | - | 2WD | 4WD |
Calculators
Calculators for the 5145
PTO power
About 37 to 41 PTO hp
Estimated from the 45 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 45 hp tractor can run
Maximum size is about a 5.5 ft rotary cutter or a 4.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
139 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
45 hp is 33.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
5145 vs. Utility median
Mahindra 5145 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 45 hp | 55 hp | -18% | 39th |
| Engine Displacement | 167 ci | 183 ci | -9% | 45th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 5,390 lb | 5,303 lb | +2% | 50th |
| Length | 137 in | 137 in | 0% | 50th |
| Width | 74.8 in | 66 in | +13% | 70th |
| Height | 60.6 in | 94.1 in | -36% | 10th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other Mahindra models
Other manufacturers
Models with similar horsepower
Gallery

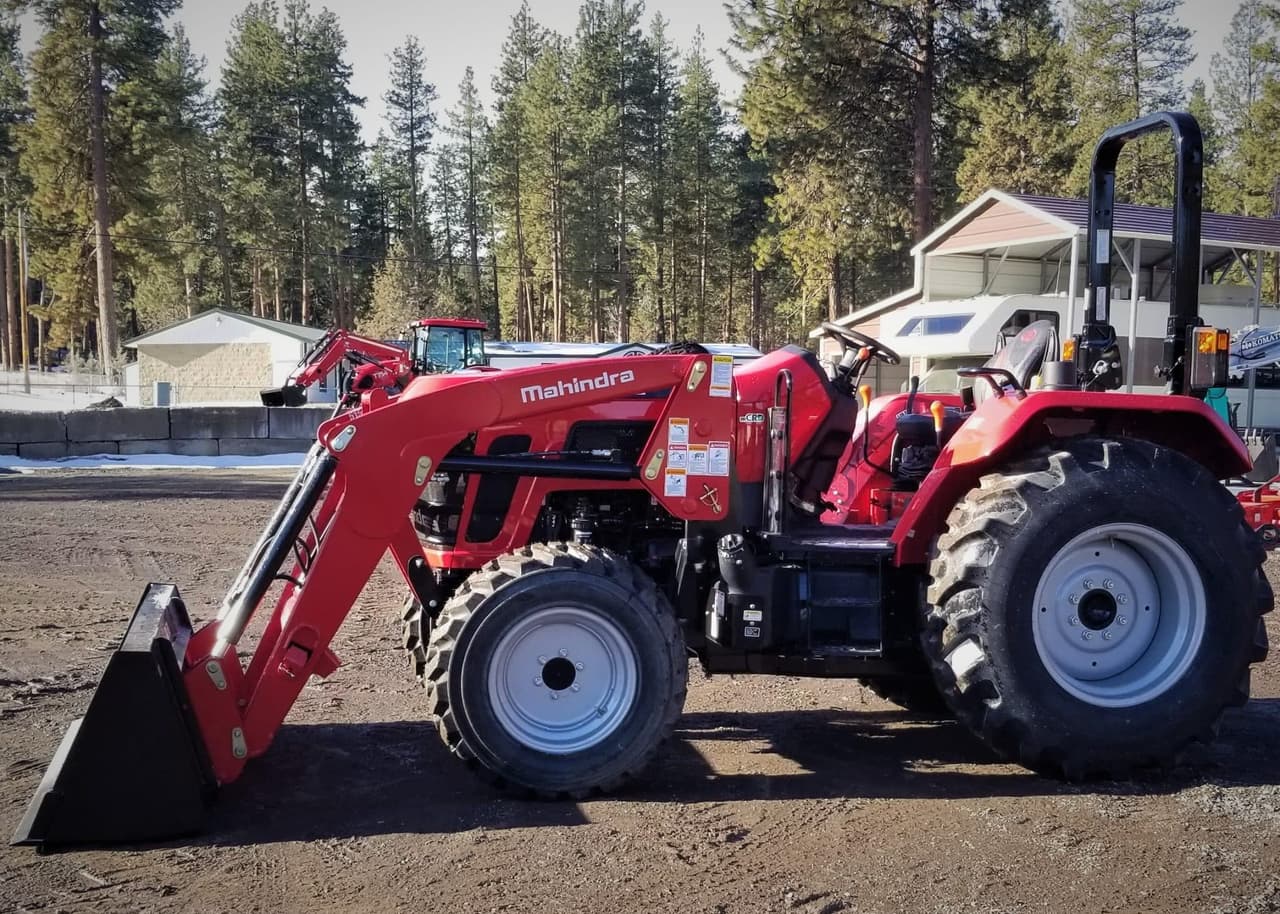

Mahindra 5145 photos
FAQ
Frequently asked questions
How much horsepower does the Mahindra 5145 have?
The Mahindra 5145 produces 45 hp from its 4-cylinder engine. Engine displacement is 166.7 ci.
How much does the Mahindra 5145 weigh?
The Mahindra 5145 weighs about 5,390 lb in operating condition.
What transmission is in the Mahindra 5145?
Transmission on the Mahindra 5145 is Sync shuttle, with 12 forward speeds.
What hydraulics does the Mahindra 5145 have?
The Mahindra 5145 uses an Open center hydraulic system.
What three-point hitch category does the Mahindra 5145 use?
The Mahindra 5145 has a Category Category 3 three-point hitch.
What maintenance does the Mahindra 5145 require?
The Mahindra 5145 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
