UtilityPerformance profile
Marshall 802
The Marshall 802 is a utility tractor built for tough farm work. It has a 2-wheel drive system and power steering, making it easy to handle. The tractor comes with a 9-speed forward and 3-speed reverse transmission, giving farmers 12 gears to choose from. Under the hood, the Marshall 802 packs a punch with its Leyland 4/98 TT engine. This diesel engine is turbocharged and has 4 cylinders. It produces 82 horsepower, which is above average for tractors in its class. The engine size is also above average at 230 cubic inches. Weighing 6,550 pounds, this tractor is sturdy enough for most farm tasks. It has a Category II hitch at the back for attaching various tools. The tractor runs on ag tires, with 7.50x16 in the front and larger 14.00x34 in the rear. It also features a 12-volt electrical system and an electric starter for easy operation.
ManufacturerMarshallPower82 hpEngine4-cylTransSynchromesh
Quick specs
- Category
- Utility
- Engine Power Output
- 82hp
- Operating Weight
- 6,550 lb
- Transmission
- Synchromesh
At a glance
How the 802 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
82 hp · 73rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 802 ranks at the 73rd percentile for engine power among recorded utility tractors.
Overview
About the Marshall 802
The Marshall 802 is a utility tractor built for tough farm work. It has a 2-wheel drive system and power steering, making it easy to handle. The tractor comes with a 9-speed forward and 3-speed reverse transmission, giving farmers 12 gears to choose from. Under the hood, the Marshall 802 packs a punch with its Leyland 4/98 TT engine. This diesel engine is turbocharged and has 4 cylinders. It produces 82 horsepower, which is above average for tractors in its class. The engine size is also above average at 230 cubic inches. Weighing 6,550 pounds, this tractor is sturdy enough for most farm tasks. It has a Category II hitch at the back for attaching various tools. The tractor runs on ag tires, with 7.50x16 in the front and larger 14.00x34 in the rear. It also features a 12-volt electrical system and an electric starter for easy operation.
Full specifications
Every recorded spec
General
| Manufacturer | Marshall |
|---|---|
| Model | 802 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 6,550lb |
Engine
| Make | Leyland |
|---|---|
| Model | 4/98 TT |
| Power | 82hp |
| Cylinders | 4 |
| Displacement | 230ci |
| Bore | 3.86in |
| Stroke | 4.92in |
Transmission
| Type | Synchromesh |
|---|---|
| Forward gears | 9 |
| Reverse gears | 3 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Operating weight | 6,550lb |
|---|
Head to head
802 vs. Utility median
How the Marshall 802 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 82 hp | 55 hp | +49% | 73rd |
| Engine Displacement | 230 ci | 183 ci | +26% | 62nd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 9 | 12 | -25% | 35th |
| Operating Weight | 6,550 lb | 5,303 lb | +24% | 62nd |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,941–5,720 models).
Compare to tractors with similar specs
Commonly compared Marshall tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Marshall 854 | 85 hp | — | — | Compare → |
| Marshall 752 | 74 hp | — | — | Compare → |
| Marshall 754 | 74 hp | — | — | Compare → |
| Marshall MP6 | 70 hp | — | — | Compare → |
| Marshall 954 | 94.5 hp | — | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO GT75 | 83 hp | 5,511 lb | 2004–2007 | Compare → |
| Agco GT75A | 83 hp | 6,040.7 lb | — | Compare → |
| Agrinar T-85 | 80.9 hp | 3,000 lb | — | Compare → |
| Agco LT90 | 85 hp | 8,980 lb | — | Compare → |
| Apollo 854 | 85 hp | 10,360 lb | — | Compare → |
Explore
Marshall siblings
Explore
Similar-spec models
Gallery

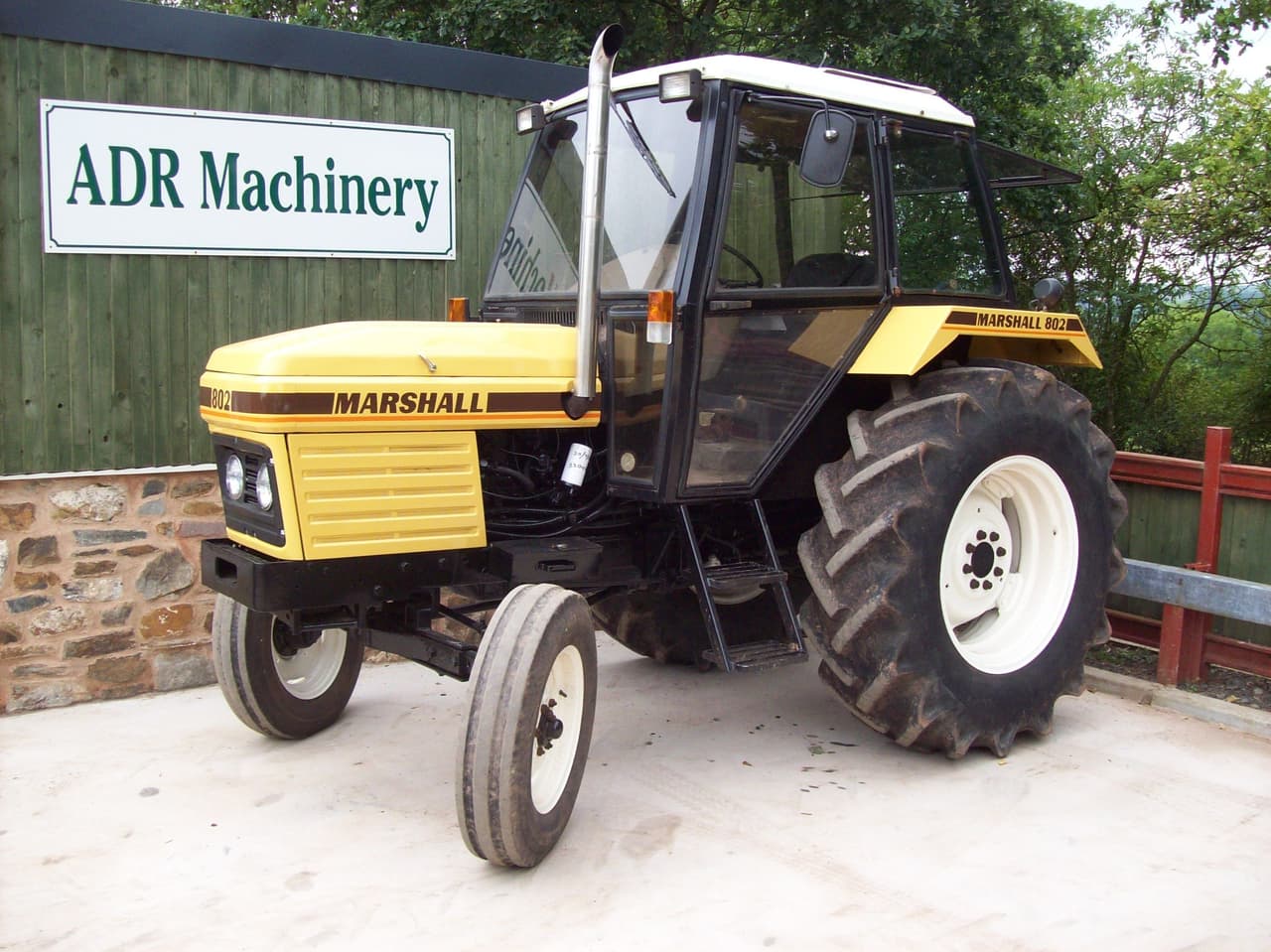

Marshall 802 photos
FAQ
Common questions
What is the engine power output of the Marshall 802?
Rated engine output for the Marshall 802 is 82 hp, delivered by a 4-cylinder engine. The engine displaces 230 ci.
Which transmission does the Marshall 802 use?
The Marshall 802 is equipped with a Synchromesh transmission with 9 forward gears.
What is the operating weight of the Marshall 802?
In working trim, the Marshall 802 comes in at roughly 6,550 lb.
How do I maintain a Marshall 802?
Routine service for the Marshall 802 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
