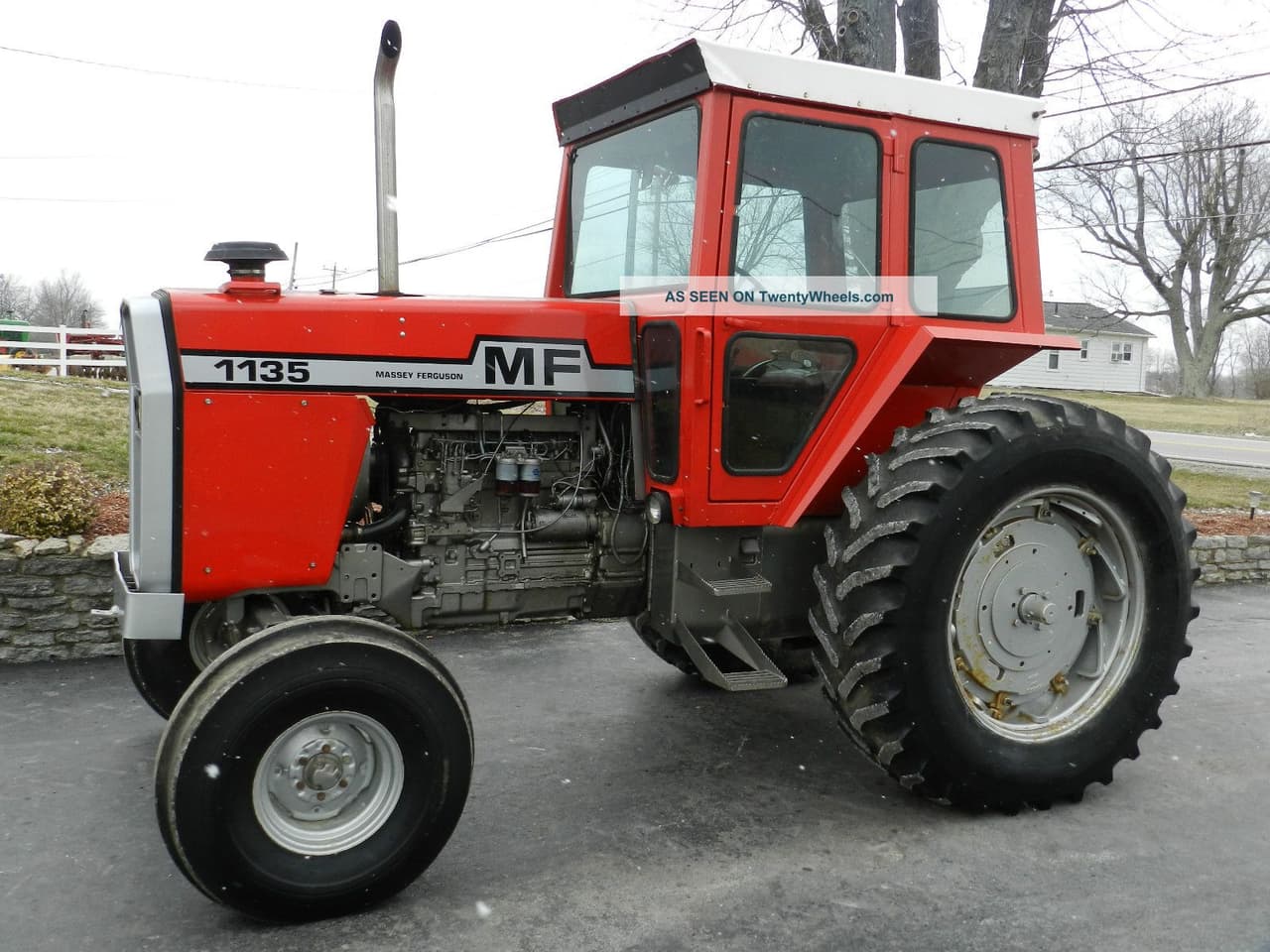

Massey Ferguson 1135
The Massey Ferguson 1135 is a powerful row crop tractor built from 1973 to 1978. It features a 2WD chassis with hydrostatic power steering, making it easy to maneuver in the fields. The tractor is equipped with a Perkins AT6.354 engine, which is a 6-cylinder, turbocharged diesel engine with liquid cooling. This engine produces 121 hp at 2200 rpm, offering above-average power for its class. The 1135 model comes with a two-speed power shift transmission, providing 12 forward and 4 reverse gears. This gives farmers plenty of options for different tasks. The tractor has a three-point hitch at the rear, compatible with category II and III implements. It also features an independent PTO with both 540 and 1000 rpm speeds. The hydraulic system is a closed center type, which is good for efficient operation. Farmers can choose between an open operator station or an optional cab for comfort. With a weight of 13,550 lb and a length of 179.9 inches, this tractor is well-suited for heavy-duty farm work.
ManufacturerMassey FergusonPower121 hpEngine6-cylTransTwo-speed power shift
Quick specs
- Category
- Row Crop
- Engine Power Output
- 121hp
- Operating Weight
- 13,550 lb
- Transmission
- Two-speed power shift
At a glance
How the 1135 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
121 hp · 40th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 1135 ranks at the 40th percentile for engine power among recorded row crop tractors.
Overview
About the Massey Ferguson 1135
The Massey Ferguson 1135 is a powerful row crop tractor built from 1973 to 1978. It features a 2WD chassis with hydrostatic power steering, making it easy to maneuver in the fields. The tractor is equipped with a Perkins AT6.354 engine, which is a 6-cylinder, turbocharged diesel engine with liquid cooling. This engine produces 121 hp at 2200 rpm, offering above-average power for its class. The 1135 model comes with a two-speed power shift transmission, providing 12 forward and 4 reverse gears. This gives farmers plenty of options for different tasks. The tractor has a three-point hitch at the rear, compatible with category II and III implements. It also features an independent PTO with both 540 and 1000 rpm speeds. The hydraulic system is a closed center type, which is good for efficient operation. Farmers can choose between an open operator station or an optional cab for comfort. With a weight of 13,550 lb and a length of 179.9 inches, this tractor is well-suited for heavy-duty farm work.
Full specifications
Every recorded spec
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 1135 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1973–1978 |
| Operating weight | 13,550lb |
Engine
| Make | Perkins |
|---|---|
| Model | AT6.354 |
| Power | 121hp |
| Cylinders | 6 |
| Displacement | 354ci |
| Bore | 3.86in |
| Stroke | 5in |
Transmission
| Type | Two-speed power shift |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Brakes | Hydraulic disc |
| Cab | Open operator station or Cab (optional) |
Hydraulics
| Type | Closed center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 179.9in |
|---|---|
| Height | 78.7in |
| Operating weight | 13,550lb |
Capacities
| Cooling system | 5.55gal |
|---|
Head to head
1135 vs. Row Crop median
How the Massey Ferguson 1135 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 121 hp | 138 hp | -12% | 40th |
| Engine Displacement | 354 ci | 391 ci | -9% | 39th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 12 | 16 | -25% | 27th |
| Operating Weight | 13,550 lb | 12,307 lb | +10% | 59th |
| Length | 180 in | 180 in | 0% | 50th |
| Height | 78.7 in | 114 in | -31% | 11th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 1,140–1,417 models).
Compare to tractors with similar specs
Commonly compared Massey Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Massey Ferguson 7715S | 121.2 hp | 15,200 lb | — | Compare → |
| Massey Ferguson 1130 | 120 hp | 13,560 lb | 1964–1972 | Compare → |
| Massey Ferguson 2705 | 120 hp | 12,595 lb | 1978–1983 | Compare → |
| Massey Ferguson 6180 | 119.4 hp | 10,220 lb | 1995–1998 | Compare → |
| Massey Ferguson 6470 | 125 hp | 10,163 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D21 Series II | 121 hp | 9,502 lb | 1965–1969 | Compare → |
| AGCO RT115 | 121.4 hp | 12,900 lb | — | Compare → |
| Agrinar T-120 | 119.3 hp | 4,580 lb | — | Compare → |
| Allis Chalmers 8010 | 119 hp | 12,630 lb | 1982–1985 | Compare → |
| Allis Chalmers 7020 | 123.79 hp | 11,770 lb | 1977–1981 | Compare → |
Explore
Massey Ferguson siblings
Explore
Similar-spec models
Gallery
Massey Ferguson 1135 photos
FAQ
Common questions
When was the Massey Ferguson 1135 made?
The Massey Ferguson 1135 was manufactured from 1973 to 1978.
What is the operating weight of the Massey Ferguson 1135?
In working trim, the Massey Ferguson 1135 comes in at roughly 13,550 lb.
Which transmission does the Massey Ferguson 1135 use?
The Massey Ferguson 1135 is equipped with a Two-speed power shift transmission with 12 forward gears.
What type of hydraulic system does the Massey Ferguson 1135 use?
Hydraulics on the Massey Ferguson 1135 are Closed center.
What hitch category is the Massey Ferguson 1135?
The Massey Ferguson 1135 uses a Category II/III hitch.
What is the engine power output of the Massey Ferguson 1135?
Rated engine output for the Massey Ferguson 1135 is 121 hp, delivered by a 6-cylinder engine. The engine displaces 354 ci.
How do I maintain a Massey Ferguson 1135?
Routine service for the Massey Ferguson 1135 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
