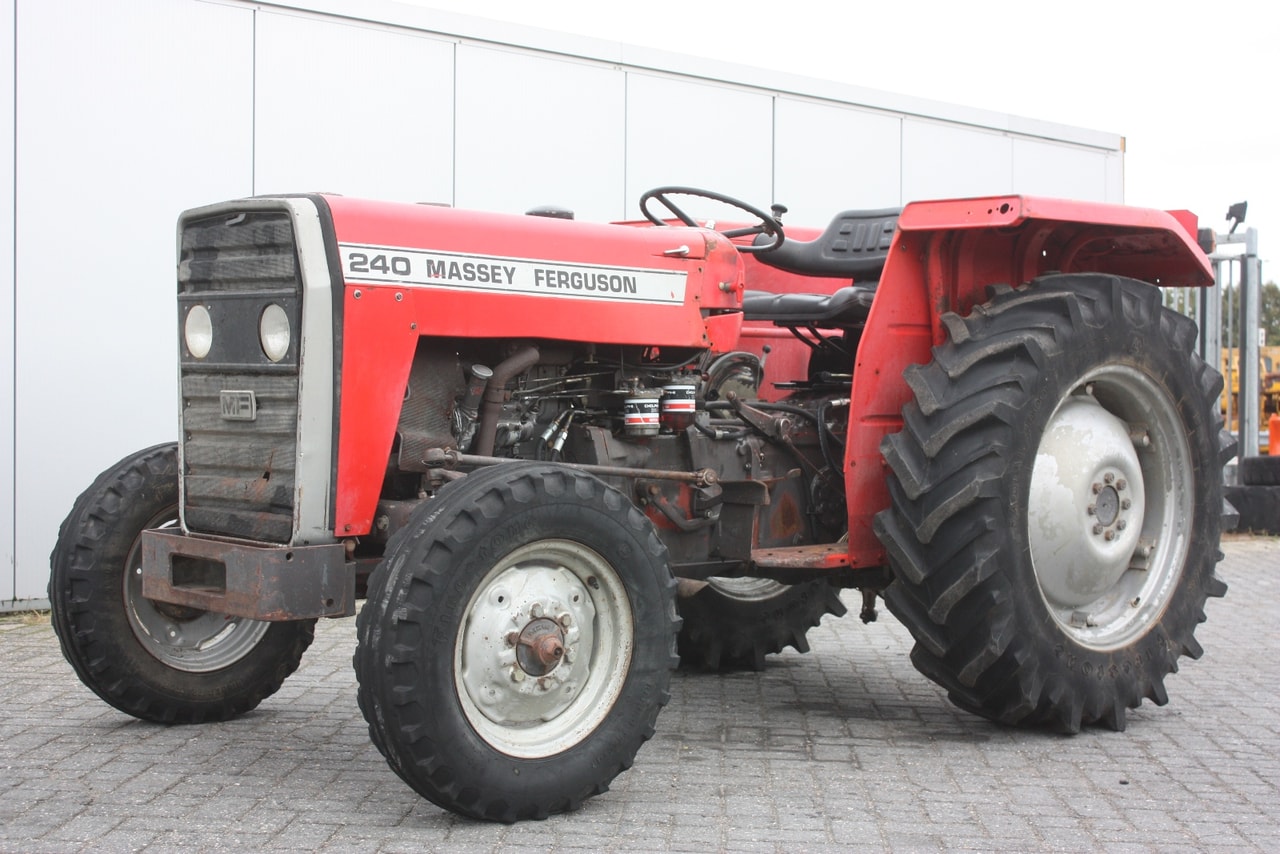

Massey Ferguson 240
The Massey Ferguson 240 is a utility tractor that was made from 1980 to 1999. It's a 2WD tractor with a 4x2 chassis and hydrostatic power steering. The tractor has a sliding gear transmission with 8 forward gears and 2 reverse gears. It's powered by a Perkins AD3.152 diesel engine with 3 cylinders. This engine is liquid-cooled and naturally aspirated, producing 46 hp at 2000 rpm. The engine's size and power are about average compared to other tractors. The MF 240 has a three-point hitch at the rear, which can be used with different tools. It also has a live PTO that spins at 540 rpm. The tractor weighs 4015 lb and measures 124.6 inches long, 65.7 inches wide, and 86.6 inches tall. It has a two-post ROPS for safety, with an optional canopy. The tractor uses an open center hydraulic system and has mechanical drum brakes. With its mix of features and average specs, the Massey Ferguson 240 is a solid choice for various farm tasks.
ManufacturerMassey FergusonPower46 hpEngine3-cylTransSliding gear
Quick specs
- Category
- Utility
- Engine Power Output
- 46hp
- Operating Weight
- 4,015 lb
- Transmission
- Sliding gear
At a glance
How the 240 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
46 hp · 40th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 240 ranks at the 40th percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 240
The Massey Ferguson 240 is a utility tractor that was made from 1980 to 1999. It's a 2WD tractor with a 4x2 chassis and hydrostatic power steering. The tractor has a sliding gear transmission with 8 forward gears and 2 reverse gears. It's powered by a Perkins AD3.152 diesel engine with 3 cylinders. This engine is liquid-cooled and naturally aspirated, producing 46 hp at 2000 rpm. The engine's size and power are about average compared to other tractors. The MF 240 has a three-point hitch at the rear, which can be used with different tools. It also has a live PTO that spins at 540 rpm. The tractor weighs 4015 lb and measures 124.6 inches long, 65.7 inches wide, and 86.6 inches tall. It has a two-post ROPS for safety, with an optional canopy. The tractor uses an open center hydraulic system and has mechanical drum brakes. With its mix of features and average specs, the Massey Ferguson 240 is a solid choice for various farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 240 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1980–1999 |
| Operating weight | 4,015lb |
Engine
| Make | Perkins |
|---|---|
| Model | AD3.152 |
| Power | 46hp |
| Cylinders | 3 |
| Displacement | 152ci |
| Bore | 3.58in |
| Stroke | 5in |
Transmission
| Type | Sliding gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Brakes | Mechanical drum |
| Cab | Two-post ROPS |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Live |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 124.6in |
|---|---|
| Width | 65.7in |
| Height | 86.6in |
| Operating weight | 4,015lb |
Tires
| Front | 6.00-16 |
|---|---|
| Rear | 13.6-28 |
Capacities
| Cooling system | 2.6gal |
|---|
Head to head
240 vs. Utility median
How the Massey Ferguson 240 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 46 hp | 55 hp | -16% | 40th |
| Engine Displacement | 152 ci | 183 ci | -17% | 39th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 4,015 lb | 5,303 lb | -24% | 37th |
| Length | 125 in | 137 in | -9% | 34th |
| Width | 65.7 in | 66 in | 0% | 50th |
| Height | 86.6 in | 94.1 in | -8% | 35th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Massey Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Massey Ferguson 235 | 46 hp | 4,135 lb | 1975–1976 | Compare → |
| Massey Ferguson 240S | 46 hp | 4,070 lb | — | Compare → |
| Massey Ferguson 340 | 46 hp | 5,225 lb | — | Compare → |
| Massey Ferguson 350 | 46 hp | 6,303 lb | — | Compare → |
| Massey Ferguson 415 | 46 hp | 4,475 lb | 2001–2010 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO ST60A | 46.4 hp | 4,078 lb | — | Compare → |
| Ag King AK4540 | 45 hp | 4,650 lb | — | Compare → |
| Apollo 454 | 45 hp | 4,365 lb | — | Compare → |
| Ascot Universal 445 | 45 hp | 4,500 lb | — | Compare → |
| Barreiros 5000 VR | 45 hp | 4,080 lb | — | Compare → |
Explore
Massey Ferguson siblings
Explore
Similar-spec models
Gallery
Massey Ferguson 240 photos
FAQ
Common questions
When was the Massey Ferguson 240 in production?
Massey Ferguson 240 production started in 1980 and ended in 1999.
What type of hydraulic system does the Massey Ferguson 240 use?
Hydraulics on the Massey Ferguson 240 are Open center.
What size tires does the Massey Ferguson 240 use?
Factory rubber for the Massey Ferguson 240 is 6.00-16 front tires and 13.6-28 rear tires.
What hitch category is the Massey Ferguson 240?
The Massey Ferguson 240 uses a Category II/I hitch.
How much horsepower does the Massey Ferguson 240 have?
The Massey Ferguson 240 produces 46 hp from its 3-cylinder engine. Engine displacement is 152 ci.
How much does the Massey Ferguson 240 weigh?
The Massey Ferguson 240 weighs about 4,015 lb in operating condition.
What transmission is in the Massey Ferguson 240?
Transmission on the Massey Ferguson 240 is Sliding gear, with 8 forward speeds.
What maintenance does the Massey Ferguson 240 require?
Like any tractor, the Massey Ferguson 240 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
