AgriculturalPerformance profile
Massey Ferguson 3340
The Massey Ferguson 3340 is a versatile tractor designed for both agricultural and orchard/vineyard work. It features a 2WD drive system and power steering, making it easy to maneuver in tight spaces. The tractor comes with a Sync Shuttle transmission, offering 36 forward and 36 reverse gears for precise speed control. Under the hood, the 3340 is powered by a Perkins 1004.42 engine. This liquid-cooled, 4-cylinder diesel engine has a displacement of 258 ci, which is above average for its class. It produces 79.1 hp at 2200 rpm, providing good power for various tasks. The engine is naturally aspirated and has a vertical cylinder orientation with an OHV valve configuration. The tractor's operating weight is 4740 lb, making it relatively light and easy to handle. It comes equipped with agricultural tires both front and rear, and features a three-point hitch (Category II/I) at the rear for attaching implements. The hydraulic system is an open center type, and the operator station offers the choice of a cab or ROPS for safety and comfort.
ManufacturerMassey FergusonPower79.1 hpEngine4-cylTransSync Shuttle
Quick specs
- Category
- Agricultural
- Engine Power Output
- 79hp
- Operating Weight
- 4,740 lb
- Transmission
- Sync Shuttle
At a glance
How the 3340 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
79.1 hp · 26th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 3340 ranks at the 26th percentile for engine power among recorded agricultural tractors.
Overview
About the Massey Ferguson 3340
The Massey Ferguson 3340 is a versatile tractor designed for both agricultural and orchard/vineyard work. It features a 2WD drive system and power steering, making it easy to maneuver in tight spaces. The tractor comes with a Sync Shuttle transmission, offering 36 forward and 36 reverse gears for precise speed control. Under the hood, the 3340 is powered by a Perkins 1004.42 engine. This liquid-cooled, 4-cylinder diesel engine has a displacement of 258 ci, which is above average for its class. It produces 79.1 hp at 2200 rpm, providing good power for various tasks. The engine is naturally aspirated and has a vertical cylinder orientation with an OHV valve configuration. The tractor's operating weight is 4740 lb, making it relatively light and easy to handle. It comes equipped with agricultural tires both front and rear, and features a three-point hitch (Category II/I) at the rear for attaching implements. The hydraulic system is an open center type, and the operator station offers the choice of a cab or ROPS for safety and comfort.
Full specifications
Every recorded spec
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 3340 |
| Category | Agricultural tractor |
| Type | 2WD |
| Operating weight | 4,740lb |
Engine
| Make | Perkins |
|---|---|
| Model | 1004.42 |
| Power | 79.1hp |
| Cylinders | 4 |
| Displacement | 258ci |
| Bore | 4.05in |
| Stroke | 5in |
Transmission
| Type | Sync Shuttle |
|---|---|
| Forward gears | 36 |
| Reverse gears | 36 |
Chassis & drive
| Drive | 2WD |
|---|---|
| Steering | Power |
| Cab | Cab / ROPS |
Hydraulics
| Type | Open Center |
|---|
Dimensions
| Length | 151.6in |
|---|---|
| Operating weight | 4,740lb |
Head to head
3340 vs. Agricultural median
How the Massey Ferguson 3340 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 79.1 hp | 110 hp | -28% | 26th |
| Engine Displacement | 258 ci | 336 ci | -23% | 35th |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Forward Gears | 36 | 16 | +125% | 94th |
| Operating Weight | 4,740 lb | 10,914 lb | -57% | 10th |
| Length | 152 in | 173 in | -12% | 27th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 829–1,130 models).
Compare to tractors with similar specs
Commonly compared Massey Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Massey Ferguson 5420 | 79 hp | 8,378 lb | 2011–2013 | Compare → |
| Massey Ferguson 3235 | 80 hp | — | — | Compare → |
| Massey Ferguson 3435 | 80 hp | — | 2005–2010 | Compare → |
| Massey Ferguson 394S | 81 hp | 5,291 lb | 1994–1999 | Compare → |
| Massey Ferguson 4400 | 82 hp | — | 2011–2021 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO LT75 | 78.98 hp | 9,600 lb | — | Compare → |
| Agrinar T-85 | 80.9 hp | 3,000 lb | — | Compare → |
| Barreiros R-545 | 77 hp | 7,720 lb | — | Compare → |
| AGCO GT75 | 83 hp | 5,511 lb | 2004–2007 | Compare → |
| Agco GT75A | 83 hp | 6,040.7 lb | — | Compare → |
Explore
Massey Ferguson siblings
Explore
Similar-spec models
Gallery

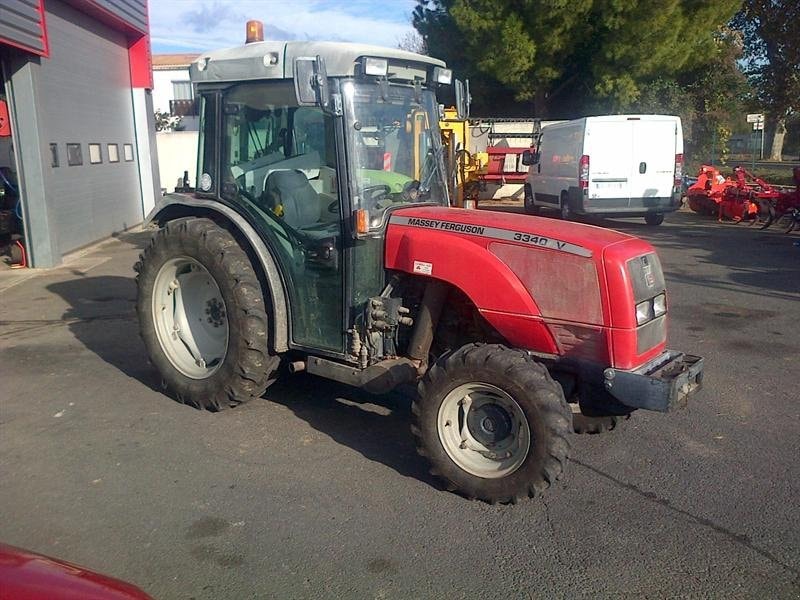

Massey Ferguson 3340 photos
FAQ
Common questions
What is the engine power output of the Massey Ferguson 3340?
Rated engine output for the Massey Ferguson 3340 is 79.1 hp, delivered by a 4-cylinder engine. The engine displaces 258 ci.
What hitch category is the Massey Ferguson 3340?
The Massey Ferguson 3340 uses a Category II/I hitch.
What is the operating weight of the Massey Ferguson 3340?
In working trim, the Massey Ferguson 3340 comes in at roughly 4,740 lb.
Which transmission does the Massey Ferguson 3340 use?
The Massey Ferguson 3340 is equipped with a Sync Shuttle transmission with 36 forward gears.
What type of hydraulic system does the Massey Ferguson 3340 use?
Hydraulics on the Massey Ferguson 3340 are Open Center.
How do I maintain a Massey Ferguson 3340?
Routine service for the Massey Ferguson 3340 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
