UtilityPerformance profile
Massey Ferguson 4233
The Massey Ferguson 4233 is a utility tractor made from 1998 to 2001. It's a 2WD tractor with hydrostatic power steering, making it easy to control. The tractor has an 8-speed gear transmission with 8 forward and 2 reverse gears. It's powered by a Perkins 1004.42 diesel engine with 4 cylinders and 75 horsepower, which is above average for its class. The engine is naturally aspirated and liquid-cooled, with an above-average displacement of 258 cubic inches. This tractor is built for farm work, with agricultural tires and a three-point hitch at the rear. It has an open operator station and uses a 12-volt electrical system with an electric starter. The Massey Ferguson 4233 is quite hefty, weighing 6,935 pounds, which is above average for similar tractors. It measures 189 inches long, 77 inches wide, and 72 inches tall. The tractor's hydraulic system is an open center type, which is common for utility tractors of this era.
ManufacturerMassey FergusonPower75 hpEngine4-cylTrans8-speed nonsynchronized gear
Quick specs
- Category
- Utility
- Engine Power Output
- 75hp
- Operating Weight
- 6,935 lb
- Transmission
- 8-speed nonsynchronized gear
At a glance
How the 4233 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
75 hp · 68th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 4233 ranks at the 68th percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 4233
The Massey Ferguson 4233 is a utility tractor made from 1998 to 2001. It's a 2WD tractor with hydrostatic power steering, making it easy to control. The tractor has an 8-speed gear transmission with 8 forward and 2 reverse gears. It's powered by a Perkins 1004.42 diesel engine with 4 cylinders and 75 horsepower, which is above average for its class. The engine is naturally aspirated and liquid-cooled, with an above-average displacement of 258 cubic inches. This tractor is built for farm work, with agricultural tires and a three-point hitch at the rear. It has an open operator station and uses a 12-volt electrical system with an electric starter. The Massey Ferguson 4233 is quite hefty, weighing 6,935 pounds, which is above average for similar tractors. It measures 189 inches long, 77 inches wide, and 72 inches tall. The tractor's hydraulic system is an open center type, which is common for utility tractors of this era.
Full specifications
Every recorded spec
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 4233 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1998–2001 |
| Operating weight | 6,935lb |
Engine
| Make | Perkins |
|---|---|
| Model | 1004.42 |
| Power | 75hp |
| Cylinders | 4 |
| Displacement | 258ci |
| Bore | 4.05in |
| Stroke | 5in |
Transmission
| Type | 8-speed nonsynchronized gear |
|---|---|
| Forward gears | 8 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Cab | Open Station |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 189in |
|---|---|
| Width | 77in |
| Height | 72in |
| Operating weight | 6,935lb |
Tires
| Front | 7.5L-15 |
|---|---|
| Rear | 16.9-30 |
Capacities
| Cooling system | 4.6gal |
|---|
Head to head
4233 vs. Utility median
How the Massey Ferguson 4233 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 75 hp | 55 hp | +36% | 68th |
| Engine Displacement | 258 ci | 183 ci | +41% | 73rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 6,935 lb | 5,303 lb | +31% | 66th |
| Length | 189 in | 137 in | +38% | 93rd |
| Width | 77 in | 66 in | +17% | 75th |
| Height | 72 in | 94.1 in | -23% | 17th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared Massey Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Massey Ferguson 1075 | 75 hp | — | — | Compare → |
| Massey Ferguson 185 | 75 hp | 6,000 lb | 1971–1979 | Compare → |
| Massey Ferguson 188 | 75 hp | 7,231 lb | 1972–1976 | Compare → |
| Massey Ferguson 194 | 75 hp | 6,041 lb | — | Compare → |
| Massey Ferguson 275 Xtra | 75 hp | 6,128 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Allis Chalmers D19 | 74.2 hp | 6,650 lb | 1961–1964 | Compare → |
| Barreiros R-545 | 77 hp | 7,720 lb | — | Compare → |
| AGCO LT75 | 78.98 hp | 9,600 lb | — | Compare → |
| AGCO GT65 | 71 hp | 5,335 lb | — | Compare → |
| Agco GT65A | 71 hp | 5,864.3 lb | — | Compare → |
Explore
Massey Ferguson siblings
Explore
Similar-spec models
Gallery

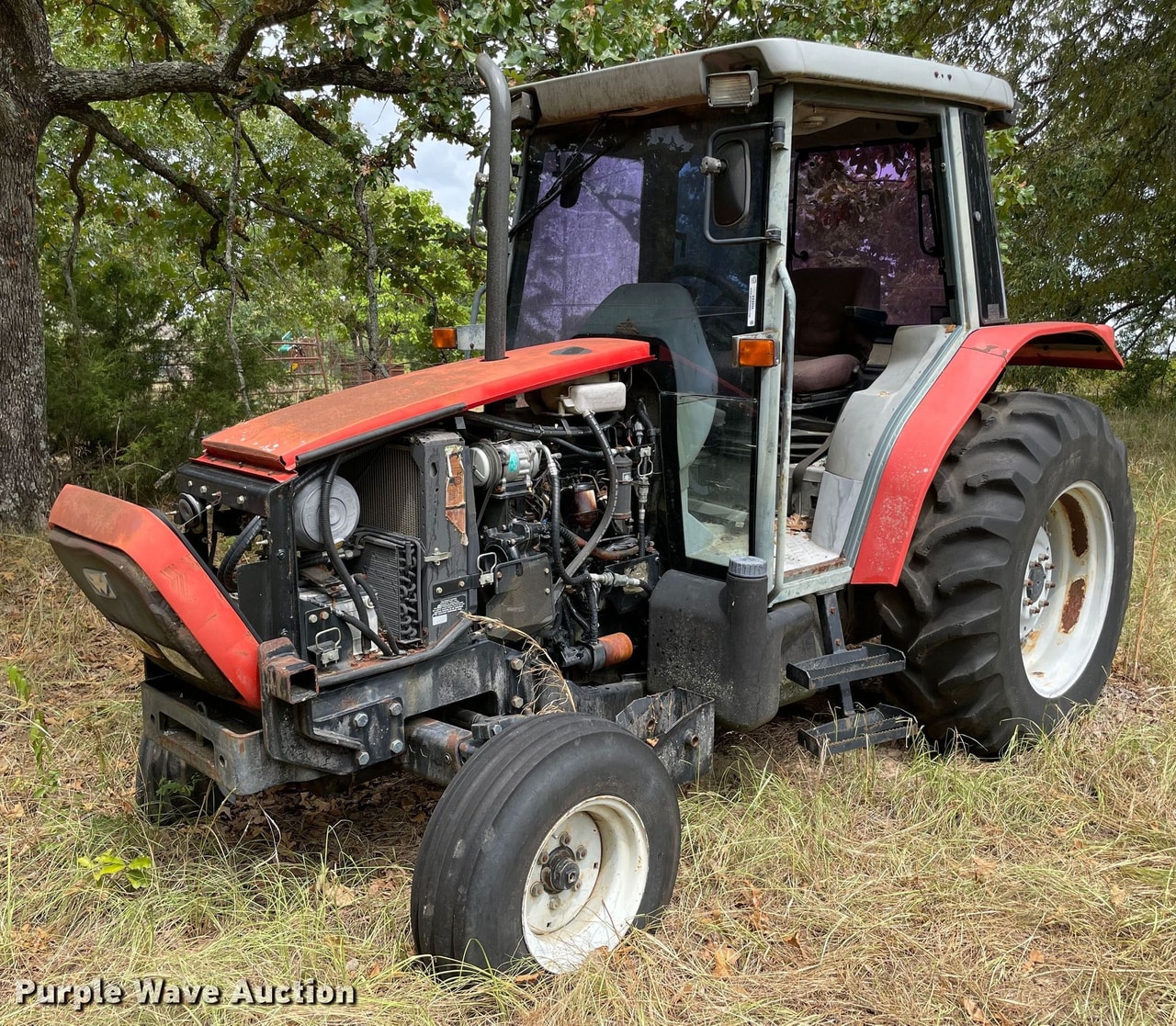

Massey Ferguson 4233 photos
FAQ
Common questions
When was the Massey Ferguson 4233 in production?
Massey Ferguson 4233 production started in 1998 and ended in 2001.
What type of hydraulic system does the Massey Ferguson 4233 use?
Hydraulics on the Massey Ferguson 4233 are Open center.
What size tires does the Massey Ferguson 4233 use?
Factory rubber for the Massey Ferguson 4233 is 7.5L-15 front tires and 16.9-30 rear tires.
What hitch category is the Massey Ferguson 4233?
The Massey Ferguson 4233 uses a Category II hitch.
How much horsepower does the Massey Ferguson 4233 have?
The Massey Ferguson 4233 produces 75 hp from its 4-cylinder engine. Engine displacement is 258 ci.
How much does the Massey Ferguson 4233 weigh?
The Massey Ferguson 4233 weighs about 6,935 lb in operating condition.
What transmission is in the Massey Ferguson 4233?
Transmission on the Massey Ferguson 4233 is 8-speed nonsynchronized gear, with 8 forward speeds.
What maintenance does the Massey Ferguson 4233 require?
Like any tractor, the Massey Ferguson 4233 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
