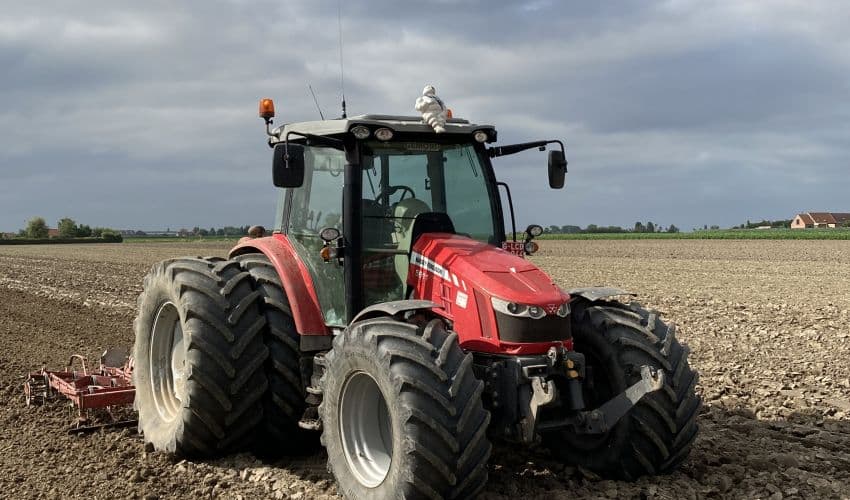

Massey Ferguson 5611
The Massey Ferguson 5611 is a powerful utility tractor built for tough farm work. It has a strong diesel engine made by AGCO Power. This engine has 4 cylinders and can produce 105 horsepower, which is very high for its class. The tractor uses a special system called SCR to keep its emissions low and meet Interim Tier IV standards. This tractor is designed for comfort and ease of use. It has a cab for the driver and uses hydrostatic power steering, making it easy to control. The transmission has 16 forward and 16 reverse gears, giving the driver lots of options. It also has a power shuttle, which makes changing direction quick and smooth. The 5611 has a strong hydraulic system and a versatile hitch, making it great for many different farm tasks. With its above-average weight and power, this tractor can handle heavy loads and tough jobs with ease.
ManufacturerMassey FergusonPower105 hp(78.3 kW)Class100–150 HP tractors →Engine4-cylinderTransmissionFour-speed power shift with power shuttle
Key specifications
- Category
- Utility
- Engine power
- 105hp
- Operating weight
- 8,929 lb
- Transmission
- Four-speed power shift with power shuttle
Category comparison
5611 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
105 hp · 85th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 5611 ranks at the 85th percentile for engine power among recorded utility tractors.
Overview
About the Massey Ferguson 5611
The Massey Ferguson 5611 is a powerful utility tractor built for tough farm work. It has a strong diesel engine made by AGCO Power. This engine has 4 cylinders and can produce 105 horsepower, which is very high for its class. The tractor uses a special system called SCR to keep its emissions low and meet Interim Tier IV standards. This tractor is designed for comfort and ease of use. It has a cab for the driver and uses hydrostatic power steering, making it easy to control. The transmission has 16 forward and 16 reverse gears, giving the driver lots of options. It also has a power shuttle, which makes changing direction quick and smooth. The 5611 has a strong hydraulic system and a versatile hitch, making it great for many different farm tasks. With its above-average weight and power, this tractor can handle heavy loads and tough jobs with ease.
Full specifications
Recorded specifications
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 5611 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 2013+ |
| Operating weight | 8,929lb(4,050 kg) |
Engine
| Make | AGCO Power |
|---|---|
| Model | 44AWI |
| Power | 105hp(78.3 kW) |
| Cylinders | 4 |
| Displacement | 269ci(4.41 L) |
| Bore | 4.25in(107.9 mm) |
| Stroke | 4.72in(119.9 mm) |
Transmission
| Type | Four-speed power shift with power shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Cab | Cab |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Electro-hydraulic engagement and speed selection |
|---|
Dimensions
| Height | 111.5in(2,832 mm) |
|---|---|
| Operating weight | 8,929lb(4,050 kg) |
Closest alternatives
5611 compared with the nearest models by horsepower
Among utility tractors, the Massey Ferguson 3710F and the Massey Ferguson 5711SL are closest to the Massey Ferguson 5611 in rated horsepower. The Massey Ferguson 3710F matches it on rated power. The Massey Ferguson 5711SL matches it on rated power and weighs 1,650 lb more, so it carries more weight per horsepower, which helps traction in draft work.
| Spec | Massey Ferguson 5611 | Massey Ferguson 3710F | Massey Ferguson 5711SL |
|---|---|---|---|
| Engine power | 105 hp78.3 kW | 105 hp78.3 kW | 105 hp78.3 kW |
| Operating weight | 8,929 lb4,050 kg | - | 10,582 lb4,800 kg |
| Weight per hp | 85 lb/hp52 kg/kW | - | 101 lb/hp61 kg/kW |
| Displacement | 269 ci4.41 L | 207.5 ci3.4 L | 268.5 ci4.4 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Four-speed power shift with power shuttle | Power Shuttle | Power shift |
| Years built | 2013+ | 2017+ | 2016+ |
Calculators
Calculators for the 5611
PTO power
About 87 to 95 PTO hp
Estimated from the 105 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 105 hp tractor can run
Maximum size is about a 12.5 ft rotary cutter or a 10.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
99 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
105 hp is 78.3 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
5611 vs. Utility median
Massey Ferguson 5611 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 105 hp | 55 hp | +91% | 85th |
| Engine Displacement | 269 ci | 183 ci | +47% | 78th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 8,929 lb | 5,303 lb | +68% | 81st |
| Height | 112 in | 94.1 in | +18% | 89th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,321–5,720 models).
Same manufacturer
Other Massey Ferguson models
Other manufacturers
Models with similar horsepower
Gallery
Massey Ferguson 5611 photos
FAQ
Frequently asked questions
When was the Massey Ferguson 5611 made?
The Massey Ferguson 5611 entered production in 2013.
What three-point hitch category does the Massey Ferguson 5611 use?
The Massey Ferguson 5611 has a Category II three-point hitch.
What is the engine power output of the Massey Ferguson 5611?
Rated engine output for the Massey Ferguson 5611 is 105 hp, delivered by a 4-cylinder engine. The engine displaces 269 ci.
What is the operating weight of the Massey Ferguson 5611?
The Massey Ferguson 5611 has an operating weight of about 8,929 lb.
Which transmission does the Massey Ferguson 5611 use?
The Massey Ferguson 5611 is equipped with a Four-speed power shift with power shuttle transmission with 16 forward gears.
What hydraulics does the Massey Ferguson 5611 have?
The Massey Ferguson 5611 uses an Open center hydraulic system.
How do I maintain a Massey Ferguson 5611?
Routine service for the Massey Ferguson 5611 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
