Row CropPerformance profile
Massey Ferguson 565
The Massey Ferguson 565 is a row crop tractor built from 1977 to 1982. It's a 2WD model with power steering and a gear transmission that offers 12 forward and 4 reverse speeds. This tractor is designed for farmers who need a reliable machine for their fields. Under the hood, the MF 565 has a Perkins A4.236 diesel engine. It's a 4-cylinder, liquid-cooled engine with natural aspiration. The engine puts out 60 hp at 2000 rpm, which is below average for tractors. It has a displacement of 235.6 ci, which is also below average. The tractor weighs 6106 lb and measures 148.5 inches long, 73 inches wide, and 95 inches tall. It comes with a three-point hitch at the rear, rated as category II, which is good for attaching various farm tools.
ManufacturerMassey FergusonPower60 hpEngine4-cylTransGear
Quick specs
- Category
- Row Crop
- Engine Power Output
- 60hp
- Operating Weight
- 6,106 lb
- Transmission
- Gear
At a glance
How the 565 compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
60 hp · 9th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 565 ranks at the 9th percentile for engine power among recorded row crop tractors.
Overview
About the Massey Ferguson 565
The Massey Ferguson 565 is a row crop tractor built from 1977 to 1982. It's a 2WD model with power steering and a gear transmission that offers 12 forward and 4 reverse speeds. This tractor is designed for farmers who need a reliable machine for their fields. Under the hood, the MF 565 has a Perkins A4.236 diesel engine. It's a 4-cylinder, liquid-cooled engine with natural aspiration. The engine puts out 60 hp at 2000 rpm, which is below average for tractors. It has a displacement of 235.6 ci, which is also below average. The tractor weighs 6106 lb and measures 148.5 inches long, 73 inches wide, and 95 inches tall. It comes with a three-point hitch at the rear, rated as category II, which is good for attaching various farm tools.
Full specifications
Every recorded spec
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 565 |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 1977–1982 |
| Operating weight | 6,106lb |
Engine
| Make | Perkins |
|---|---|
| Model | A4.236 |
| Power | 60hp |
| Cylinders | 4 |
| Displacement | 235.6ci |
| Bore | 3.88in |
| Stroke | 5in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Dimensions
| Length | 148.5in |
|---|---|
| Width | 73in |
| Height | 95in |
| Operating weight | 6,106lb |
Capacities
| Cooling system | 3.75gal |
|---|
Head to head
565 vs. Row Crop median
How the Massey Ferguson 565 compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 60 hp | 138 hp | -57% | 9th |
| Engine Displacement | 236 ci | 391 ci | -40% | 13th |
| Cylinders | 4 | 6 | -33% | 17th |
| Forward Gears | 12 | 16 | -25% | 27th |
| Operating Weight | 6,106 lb | 12,307 lb | -50% | 12th |
| Length | 149 in | 180 in | -17% | 16th |
| Width | 73 in | 91.2 in | -20% | 9th |
| Height | 95 in | 114 in | -16% | 20th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 806–1,417 models).
Compare to tractors with similar specs
Commonly compared Massey Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Massey Ferguson 165 (European) | 58.3 hp | 4,475 lb | 1965–1979 | Compare → |
| Massey Ferguson 158 | 62 hp | 5,423 lb | 1972–1976 | Compare → |
| Massey Ferguson 85 | 62.21 hp | 5,737 lb | 1959–1962 | Compare → |
| Massey Ferguson 2625 | 63 hp | 5,250 lb | 1985–1986 | Compare → |
| Massey Ferguson 3050 | 63 hp | 8,410 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Barreiros R-500 B | 60 hp | — | — | Compare → |
| AGCO GT55A | 58.89 hp | 6,400 lb | — | Compare → |
| Allis Chalmers 6070 | 58.35 hp | 7,460 lb | — | Compare → |
| Belarus 406 | 58 hp | 7,056 lb | — | Compare → |
| Belarus 426 | 58 hp | 7,188 lb | — | Compare → |
Explore
Massey Ferguson siblings
Explore
Similar-spec models
Gallery

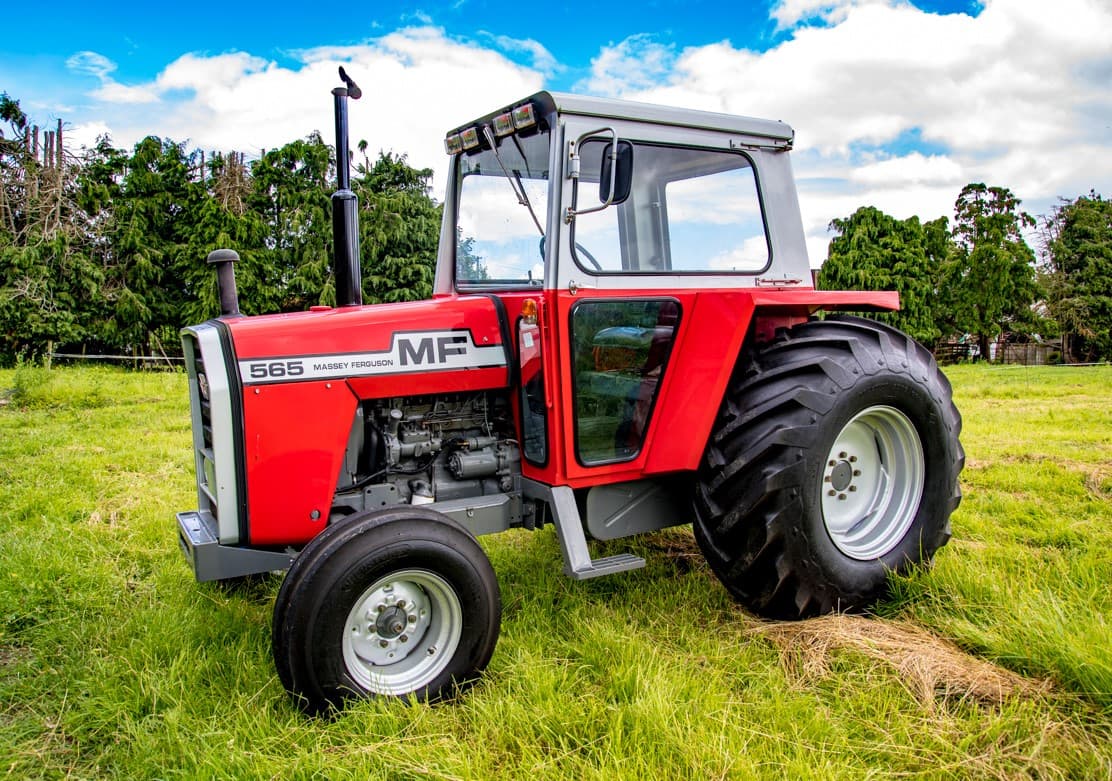

Massey Ferguson 565 photos
FAQ
Common questions
When was the Massey Ferguson 565 made?
The Massey Ferguson 565 was manufactured from 1977 to 1982.
What is the operating weight of the Massey Ferguson 565?
In working trim, the Massey Ferguson 565 comes in at roughly 6,106 lb.
Which transmission does the Massey Ferguson 565 use?
The Massey Ferguson 565 is equipped with a Gear transmission with 12 forward gears.
What hitch category is the Massey Ferguson 565?
The Massey Ferguson 565 uses a Category II hitch.
What is the engine power output of the Massey Ferguson 565?
Rated engine output for the Massey Ferguson 565 is 60 hp, delivered by a 4-cylinder engine. The engine displaces 235.6 ci.
How do I maintain a Massey Ferguson 565?
Routine service for the Massey Ferguson 565 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
