AgriculturalPerformance profile

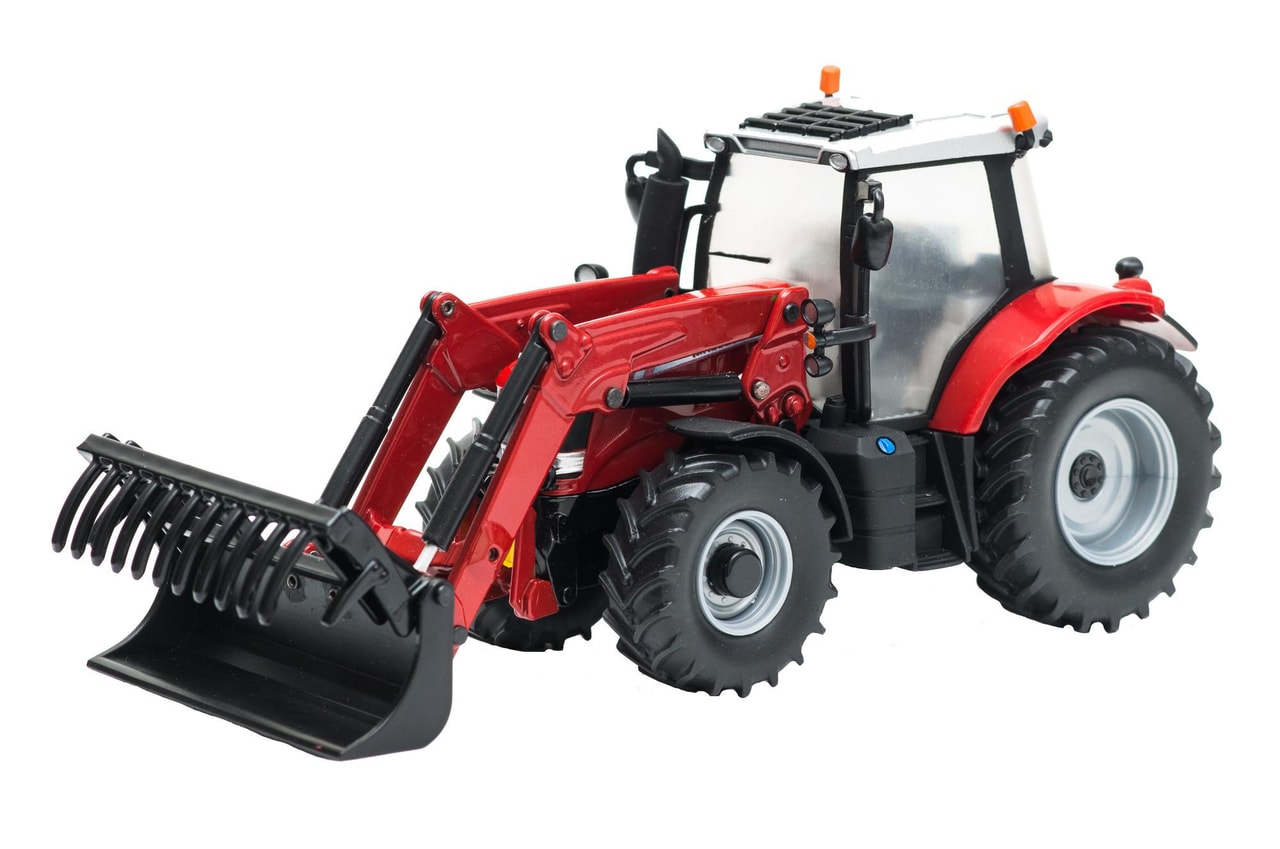

Massey Ferguson 6616
The Massey Ferguson 6616 is a powerful 4WD tractor built for tough farm work. It has a strong diesel engine made by AGCO Power. This engine has 4 cylinders and can produce 140.7 hp at 2200 rpm. The tractor uses a special transmission called CVT (Dyna-VT) that gives it infinite forward and reverse gears. This means the driver can easily find the perfect speed for any job. The 6616 is big and sturdy, measuring 184.7 inches long and 115.5 inches tall. It weighs 15,930 pounds, which helps it handle heavy tasks. The tractor has large agricultural tires, with 480/70R28 in front and 580/70R38 in the back. It also has a three-point hitch at the rear for attaching tools. The hydraulic system can lift up to 11,755 pounds, making it great for heavy implements. The tractor has a comfortable cab for the driver and uses a 12-volt electrical system. With its mix of power and features, the Massey Ferguson 6616 is a reliable choice for many farming needs.
ManufacturerMassey FergusonPower140.7 hpEngine4-cylTransCVT (Dyna-VT)
Quick specs
- Category
- Agricultural
- Engine Power Output
- 141hp
- Operating Weight
- 15,930 lb
- Transmission
- CVT (Dyna-VT)
At a glance
How the 6616 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
140.7 hp · 66th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 6616 ranks at the 66th percentile for engine power among recorded agricultural tractors.
Overview
About the Massey Ferguson 6616
The Massey Ferguson 6616 is a powerful 4WD tractor built for tough farm work. It has a strong diesel engine made by AGCO Power. This engine has 4 cylinders and can produce 140.7 hp at 2200 rpm. The tractor uses a special transmission called CVT (Dyna-VT) that gives it infinite forward and reverse gears. This means the driver can easily find the perfect speed for any job. The 6616 is big and sturdy, measuring 184.7 inches long and 115.5 inches tall. It weighs 15,930 pounds, which helps it handle heavy tasks. The tractor has large agricultural tires, with 480/70R28 in front and 580/70R38 in the back. It also has a three-point hitch at the rear for attaching tools. The hydraulic system can lift up to 11,755 pounds, making it great for heavy implements. The tractor has a comfortable cab for the driver and uses a 12-volt electrical system. With its mix of power and features, the Massey Ferguson 6616 is a reliable choice for many farming needs.
Full specifications
Every recorded spec
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 6616 |
| Category | Agricultural tractor |
| Type | 4WD |
| Years built | 2014+ |
| Operating weight | 15,930lb |
Engine
| Make | AGCO Power |
|---|---|
| Power | 140.7hp |
| Cylinders | 4 |
| Displacement | 299ci |
| Bore | 4.25in |
| Stroke | 5.28in |
Transmission
| Type | CVT (Dyna-VT) |
|---|
Chassis & drive
| Drive | 4WD |
|---|---|
| Steering | Hydraulic power |
| Cab | Cab |
Hydraulics
| Type | Direct engine drive |
|---|
Power take-off
| Rear PTO | 540/1000 |
|---|
Dimensions
| Length | 184.7in |
|---|---|
| Height | 115.5in |
| Operating weight | 15,930lb |
Tires
| Front | 480/70R28 |
|---|---|
| Rear | 580/70R38 |
Head to head
6616 vs. Agricultural median
How the Massey Ferguson 6616 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 141 hp | 110 hp | +28% | 66th |
| Engine Displacement | 299 ci | 336 ci | -11% | 46th |
| Cylinders | 4 | 5.5 | -27% | 31st |
| Operating Weight | 15,930 lb | 10,914 lb | +46% | 74th |
| Length | 185 in | 173 in | +7% | 64th |
| Height | 116 in | 111 in | +4% | 66th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared Massey Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Massey Ferguson 3660 | 141.2 hp | 11,650 lb | 1990–1994 | Compare → |
| Massey Ferguson 3670 | 139.7 hp | — | 1992–1994 | Compare → |
| Massey Ferguson 299 Advanced | 138.1 hp | — | — | Compare → |
| Massey Ferguson 6715S | 144 hp | 14,495 lb | 2017+ | Compare → |
| Massey Ferguson 3545 | 147 hp | 13,300 lb | 1983–1987 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO RT135 | 143.94 hp | 15,525 lb | — | Compare → |
| Allis Chalmers 7045 | 136.65 hp | 14,500 lb | 1978–1981 | Compare → |
| CaseIH 1455 XL | 145 hp | 11,499 lb | — | Compare → |
| Allis Chalmers 210 | 136 hp | 12,425 lb | 1970–1973 | Compare → |
| Allis Chalmers T16 | 135 hp | 16,300 lb | — | Compare → |
Explore
Massey Ferguson siblings
Explore
Similar-spec models
Gallery
Massey Ferguson 6616 photos
FAQ
Common questions
When was the Massey Ferguson 6616 made?
The Massey Ferguson 6616 entered production in 2014.
What are the factory tire sizes for the Massey Ferguson 6616?
The Massey Ferguson 6616 comes with 480/70R28 front tires and 580/70R38 rear tires.
What three-point hitch category does the Massey Ferguson 6616 use?
The Massey Ferguson 6616 has a Category Category 2 three-point hitch.
What is the engine power output of the Massey Ferguson 6616?
Rated engine output for the Massey Ferguson 6616 is 140.7 hp, delivered by a 4-cylinder engine. The engine displaces 299 ci.
What is the operating weight of the Massey Ferguson 6616?
In working trim, the Massey Ferguson 6616 comes in at roughly 15,930 lb.
Which transmission does the Massey Ferguson 6616 use?
The Massey Ferguson 6616 is equipped with a CVT (Dyna-VT) transmission.
What hydraulics does the Massey Ferguson 6616 have?
The Massey Ferguson 6616 uses a Direct engine drive hydraulic system.
How do I maintain a Massey Ferguson 6616?
Routine service for the Massey Ferguson 6616 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
