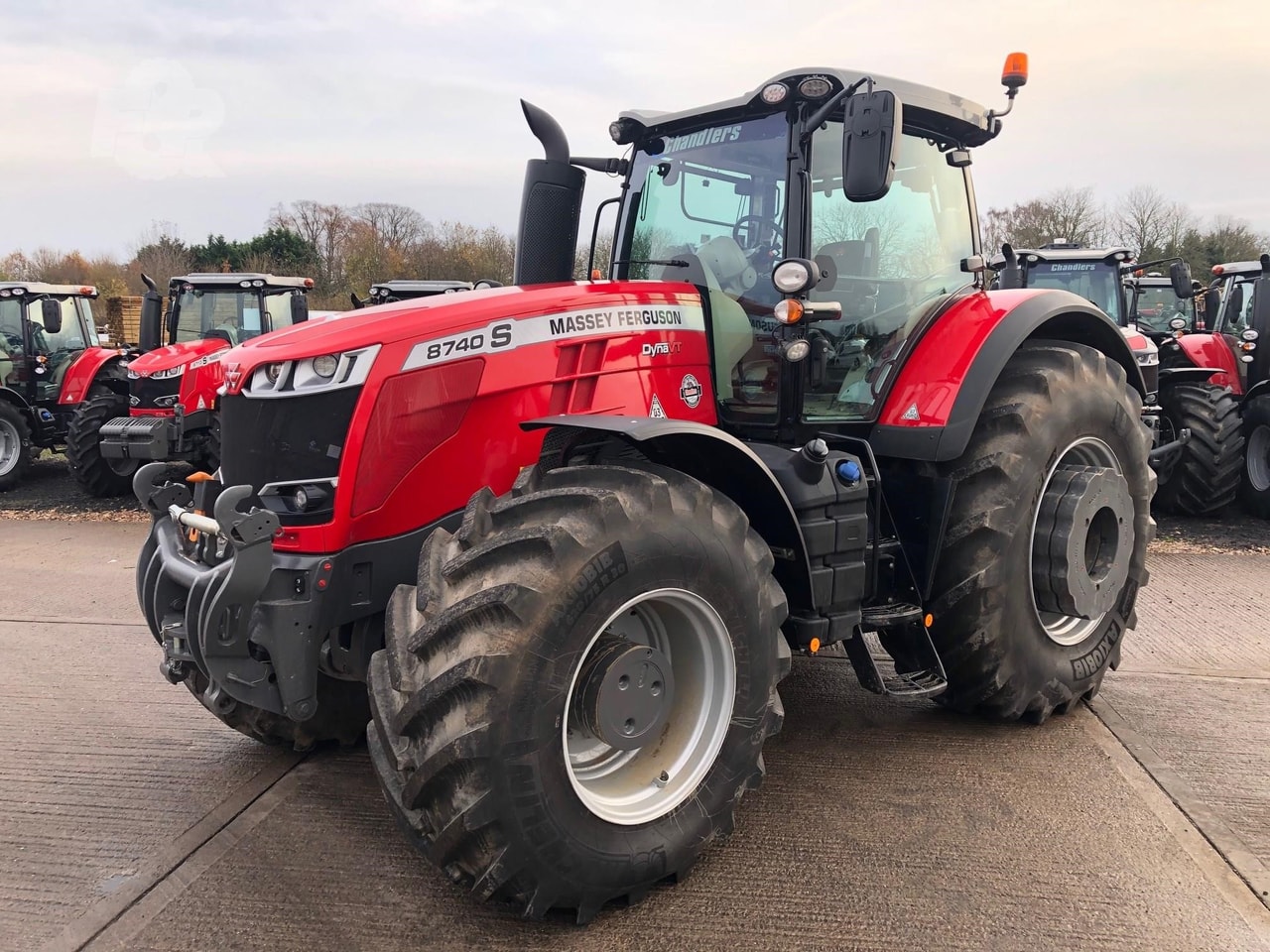

Massey Ferguson 8740S
The Massey Ferguson 8740S is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine made by AGCO Power. This engine can produce 400 horsepower, which is very high compared to most tractors. The engine is big too, with a displacement of 512.6 cubic inches, putting it well above average in size. This tractor uses a special transmission called a CVT, which means it can change speeds smoothly without shifting gears. It has four-wheel drive and power steering, making it easy to control in tough fields. The 8740S is a big machine, measuring 218.6 inches long and 138.4 inches tall. It's also heavy, weighing 23,810 pounds, which is more than most tractors. The tractor has a three-point hitch at the back for attaching tools and a closed-center hydraulic system for powering equipment. The 8740S comes with a comfortable cab for the driver and has some nice features like front axle suspension for a smoother ride. It meets Stage IV emissions standards, which means it's designed to be cleaner for the environment. This tractor is built to handle big jobs on large farms, with its strong engine, heavy weight, and advanced features.

Quick specs
- Category
- Row Crop
- Engine Power Output
- 400hp
- Operating Weight
- 23,810 lb
- Transmission
- Continuously-variable transmission (CVT)
At a glance
How the 8740S compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
This model
The 8740S ranks at the 98th percentile for engine power among recorded row crop tractors.
Overview
About the Massey Ferguson 8740S
The Massey Ferguson 8740S is a powerful row crop tractor built for serious farming. It has a strong 6-cylinder diesel engine made by AGCO Power. This engine can produce 400 horsepower, which is very high compared to most tractors. The engine is big too, with a displacement of 512.6 cubic inches, putting it well above average in size. This tractor uses a special transmission called a CVT, which means it can change speeds smoothly without shifting gears. It has four-wheel drive and power steering, making it easy to control in tough fields. The 8740S is a big machine, measuring 218.6 inches long and 138.4 inches tall. It's also heavy, weighing 23,810 pounds, which is more than most tractors. The tractor has a three-point hitch at the back for attaching tools and a closed-center hydraulic system for powering equipment. The 8740S comes with a comfortable cab for the driver and has some nice features like front axle suspension for a smoother ride. It meets Stage IV emissions standards, which means it's designed to be cleaner for the environment. This tractor is built to handle big jobs on large farms, with its strong engine, heavy weight, and advanced features.
Full specifications
Every recorded spec
General
| Manufacturer | Massey Ferguson |
|---|---|
| Model | 8740S |
| Category | Row Crop tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 2018+ |
| Operating weight | 23,810lb |
Engine
| Make | AGCO Power |
|---|---|
| Power | 400hp |
| Cylinders | 6 |
| Displacement | 512.6ci |
| Bore | 4.37in |
| Stroke | 5.71in |
Transmission
| Type | Continuously-variable transmission (CVT) |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Cab | Cab |
Hydraulics
| Type | Closed-center load-sensing |
|---|
Dimensions
| Length | 218.6in |
|---|---|
| Height | 138.4in |
| Operating weight | 23,810lb |
Tires
| Front | 620/75R30 |
|---|---|
| Rear | 650/85R42 |
Head to head
8740S vs. Row Crop median
How the Massey Ferguson 8740S compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 400 hp | 138 hp | +190% | 98th |
| Engine Displacement | 513 ci | 391 ci | +31% | 90th |
| Cylinders | 6 | 6 | at median | 50th |
| Operating Weight | 23,810 lb | 12,307 lb | +93% | 93rd |
| Length | 219 in | 180 in | +22% | 89th |
| Height | 138 in | 114 in | +22% | 97th |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 1,140–1,417 models).
Compare to tractors with similar specs
Commonly compared Massey Ferguson tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Massey Ferguson 8737S | 370 hp | 23,810 lb | 2018+ | Compare → |
| Massey Ferguson 8735S | 350 hp | 23,810 lb | 2018+ | Compare → |
| Massey Ferguson 8690 | 340 hp | 25,365 lb | 2011–2013 | Compare → |
| Massey Ferguson 8670 | 298.9 hp | 25,795 lb | 2009–2013 | Compare → |
| Massey Ferguson 8730S | 295 hp | 23,810 lb | 2018+ | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Baldwin DM400 | 400 hp | — | — | Compare → |
| Baldwin DP400 | 400 hp | — | — | Compare → |
| Big Bud 400 | 400 hp | 43,700 lb | — | Compare → |
| Big Bud 400/20 | 400 hp | — | — | Compare → |
| Big Bud 400/30 | 400 hp | 40,000 lb | — | Compare → |
Explore
Massey Ferguson siblings
Explore
Similar-spec models
Gallery
Massey Ferguson 8740S photos





FAQ
Common questions
What years was the Massey Ferguson 8740S manufactured?
Production of the Massey Ferguson 8740S began in 2018.
What hitch category is the Massey Ferguson 8740S?
The Massey Ferguson 8740S uses a Category Category 3 hitch.
How powerful is the Massey Ferguson 8740S?
The Massey Ferguson 8740S has an engine power output of 400 hp. It is powered by a 6-cylinder engine displacing 512.6 ci.
What is the working weight of the Massey Ferguson 8740S?
The operating weight of the Massey Ferguson 8740S is approximately 23,810 lb.
What type of transmission does the Massey Ferguson 8740S have?
The Massey Ferguson 8740S uses a Continuously-variable transmission (CVT) transmission.
What type of hydraulic system does the Massey Ferguson 8740S use?
Hydraulics on the Massey Ferguson 8740S are Closed-center load-sensing.
What size tires does the Massey Ferguson 8740S use?
Factory rubber for the Massey Ferguson 8740S is 620/75R30 front tires and 650/85R42 rear tires.
What routine service does the Massey Ferguson 8740S need?
Regular maintenance for the Massey Ferguson 8740S includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
