McCormick-Deering Super WD-6
The McCormick-Deering Super WD-6 is a utility tractor built for hard work on the farm. It has a strong diesel engine made by International Harvester. This engine has 4 cylinders and is cooled by liquid. It can run at 1450 rpm, which is lower than most tractors but good for steady work. The Super WD-6 is a two-wheel drive tractor with a gear transmission. It has 10 forward gears and 2 reverse gears, giving the driver lots of choices for different jobs. The tractor also has a special two-speed power shift, which helps it change gears more easily. It's a big machine, measuring 125 inches long, 70 inches wide, and 90 inches tall. It weighs 5500 pounds, which is about average for tractors like this. The Super WD-6 has big agricultural tires, with 30-inch rear tires that help it grip the soil well.
Key specifications
- Category
- Utility
- Operating weight
- 5,500 lb
- Transmission
- Gear with optional two-speed power shift
Overview
About the McCormick-Deering Super WD-6
The McCormick-Deering Super WD-6 is a utility tractor built for hard work on the farm. It has a strong diesel engine made by International Harvester. This engine has 4 cylinders and is cooled by liquid. It can run at 1450 rpm, which is lower than most tractors but good for steady work. The Super WD-6 is a two-wheel drive tractor with a gear transmission. It has 10 forward gears and 2 reverse gears, giving the driver lots of choices for different jobs. The tractor also has a special two-speed power shift, which helps it change gears more easily. It's a big machine, measuring 125 inches long, 70 inches wide, and 90 inches tall. It weighs 5500 pounds, which is about average for tractors like this. The Super WD-6 has big agricultural tires, with 30-inch rear tires that help it grip the soil well.
Full specifications
Recorded specifications
General
| Manufacturer | McCormick-Deering |
|---|---|
| Model | Super WD-6 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Operating weight | 5,500lb(2,495 kg) |
Engine
| Make | International Harvester |
|---|---|
| Cylinders | 4 |
| Displacement | 264ci(4.33 L) |
| Bore | 4in(101.6 mm) |
| Stroke | 5.25in(133.3 mm) |
Transmission
| Type | Gear with optional two-speed power shift |
|---|---|
| Forward gears | 10 |
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 125in(3,175 mm) |
|---|---|
| Width | 70in(1,778 mm) |
| Height | 90in(2,286 mm) |
| Operating weight | 5,500lb(2,495 kg) |
Capacities
| Cooling system | 7gal(26.5 L) |
|---|
Category medians
Super WD-6 vs. Utility median
McCormick-Deering Super WD-6 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 264 ci | 183 ci | +44% | 74th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 10 | 12 | -17% | 39th |
| Operating Weight | 5,500 lb | 5,303 lb | +4% | 51st |
| Length | 125 in | 137 in | -8% | 34th |
| Width | 70 in | 66 in | +6% | 61st |
| Height | 90 in | 94.1 in | -4% | 40th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other McCormick-Deering models
Other manufacturers
Models with similar horsepower
Gallery

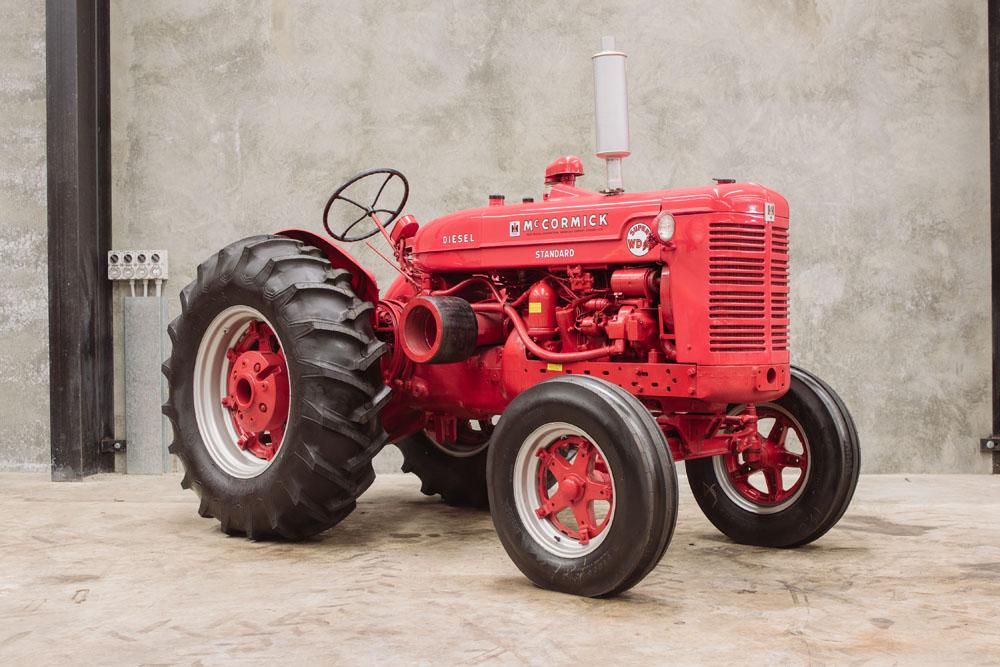

McCormick-Deering Super WD-6 photos
FAQ
Frequently asked questions
What engine configuration does the McCormick-Deering Super WD-6 use?
The McCormick-Deering Super WD-6 is equipped with a 4-cylinder engine displacing 264 ci.
What is the operating weight of the McCormick-Deering Super WD-6?
The McCormick-Deering Super WD-6 has an operating weight of about 5,500 lb.
Which transmission does the McCormick-Deering Super WD-6 use?
The McCormick-Deering Super WD-6 is equipped with a Gear with optional two-speed power shift transmission with 10 forward gears.
How do I maintain a McCormick-Deering Super WD-6?
Routine service for the McCormick-Deering Super WD-6 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
