McCormick-Deering W-30
The McCormick-Deering W-30 is a utility tractor built for farm work. It has a 2-wheel drive system and a gear transmission with 3 forward gears and 1 reverse gear. The tractor runs on a liquid-cooled, 4-cylinder engine made by International Harvester. This engine uses distillate fuel and has a very high displacement of 283.7 ci. It operates at a low speed of 1150 rpm, which is below average for tractors. The W-30 is a sturdy machine, weighing 4850 lb, which is about average for tractors of its type. It measures 122 inches long, 66.3 inches wide, and 60 inches tall. The tractor stands out with its steel wheels instead of rubber tires, both in front and back. It has some unique features like an oil bath air cleaner and a Zenith carburetor. The coolant system can hold 44 quarts of liquid to keep the engine running smoothly.
ManufacturerMcCormick-DeeringEngine4-cylTransGear
Quick specs
- Category
- Utility
- Operating Weight
- 4,850 lb
- Transmission
- Gear
Overview
About the McCormick-Deering W-30
The McCormick-Deering W-30 is a utility tractor built for farm work. It has a 2-wheel drive system and a gear transmission with 3 forward gears and 1 reverse gear. The tractor runs on a liquid-cooled, 4-cylinder engine made by International Harvester. This engine uses distillate fuel and has a very high displacement of 283.7 ci. It operates at a low speed of 1150 rpm, which is below average for tractors. The W-30 is a sturdy machine, weighing 4850 lb, which is about average for tractors of its type. It measures 122 inches long, 66.3 inches wide, and 60 inches tall. The tractor stands out with its steel wheels instead of rubber tires, both in front and back. It has some unique features like an oil bath air cleaner and a Zenith carburetor. The coolant system can hold 44 quarts of liquid to keep the engine running smoothly.
Full specifications
Every recorded spec
General
| Manufacturer | McCormick-Deering |
|---|---|
| Model | W-30 |
| Category | Utility tractor |
| Type | 4x2 |
| Operating weight | 4,850lb |
Engine
| Make | International Harvester |
|---|---|
| Cylinders | 4 |
| Displacement | 283.7ci |
| Bore | 4.25in |
| Stroke | 5in |
Transmission
| Type | Gear |
|---|---|
| Forward gears | 3 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 |
|---|---|
| Drive | 2WD |
Dimensions
| Length | 122in |
|---|---|
| Width | 66.3in |
| Height | 60in |
| Operating weight | 4,850lb |
Capacities
| Cooling system | 11gal |
|---|
Head to head
W-30 vs. Utility median
How the McCormick-Deering W-30 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Displacement | 284 ci | 183 ci | +55% | 83rd |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 3 | 12 | -75% | 3rd |
| Operating Weight | 4,850 lb | 5,303 lb | -9% | 46th |
| Length | 122 in | 137 in | -11% | 30th |
| Width | 66.3 in | 66 in | 0% | 50th |
| Height | 60 in | 94.1 in | -36% | 10th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared McCormick-Deering tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| McCormick-Deering 45219 | — | 3,700 lb | — | Compare → |
| McCormick-Deering 45585 | 20 hp | 3,700 lb | 1923–1939 | Compare → |
| McCormick-Deering A554 | 57 hp | — | — | Compare → |
| McCormick-Deering AW-7 | — | 8,540 lb | — | Compare → |
| McCormick-Deering B-450 | 55 hp | 6,020 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely 6A | — | 6,370 lb | — | Compare → |
| Advance-Rumely DoAll | — | 3,702 lb | — | Compare → |
| Advance-Rumely OilPull B 25/45 | — | 25,000 lb | — | Compare → |
| Advance-Rumely OilPull E 30/60 | — | 26,300 lb | — | Compare → |
| Advance-Rumely OilPull F 15/30 | — | 16,500 lb | — | Compare → |
Explore
McCormick-Deering siblings
Explore
Similar-spec models
Gallery

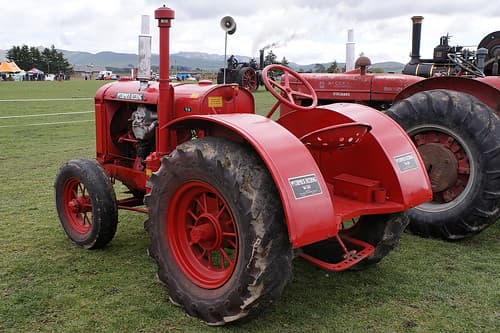

McCormick-Deering W-30 photos
FAQ
Common questions
How many cylinders does the McCormick-Deering W-30 have?
The McCormick-Deering W-30 runs a 4-cylinder engine with a displacement of 283.7 ci.
What transmission is in the McCormick-Deering W-30?
Transmission on the McCormick-Deering W-30 is Gear, with 3 forward speeds.
How much does the McCormick-Deering W-30 weigh?
The McCormick-Deering W-30 weighs about 4,850 lb in operating condition.
What maintenance does the McCormick-Deering W-30 require?
Like any tractor, the McCormick-Deering W-30 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
