Lawn and GardenPerformance profile
MTD 960 Fourteen Hundred
The MTD 960 Fourteen Hundred is a compact tractor that was made from 1970 to 1971. It's a simple machine with a 2-wheel drive system and manual steering. This tractor is good for small farms and gardens. The heart of this tractor is a Briggs & Stratton 320000 engine. It's an air-cooled, gasoline-powered engine with one cylinder. The engine puts out 14 horsepower, which is enough for light farm work. It has a displacement of 32.4 cubic inches. The tractor has a belt-driven gear transmission with 4 forward gears and 1 reverse gear. This gives the driver good control over speed and power. The MTD 960 Fourteen Hundred has some handy features. It has an independent PTO (power take-off) with a manual clutch. This lets you use different tools with the tractor. The tractor has an open operator station, which means no cab. It starts easily with an electric starter. While it's a basic model, it's a reliable choice for small-scale farming and gardening tasks.
ManufacturerMTDPower14 hpEngine1-cylTransBelt-driven gear type
Quick specs
- Category
- Lawn and Garden
- Engine Power Output
- 14hp
- Transmission
- Belt-driven gear type
At a glance
How the 960 Fourteen Hundred compares
vs. Lawn and Garden medianDistribution
Engine Power (hp)
Across all Lawn and Garden tractors
14 hp · 26th
This model
4
Median 18 hp
28
This modelLawn and Garden tractorsMediann = 380
The 960 Fourteen Hundred ranks at the 26th percentile for engine power among recorded lawn and garden tractors.
Overview
About the MTD 960 Fourteen Hundred
The MTD 960 Fourteen Hundred is a compact tractor that was made from 1970 to 1971. It's a simple machine with a 2-wheel drive system and manual steering. This tractor is good for small farms and gardens. The heart of this tractor is a Briggs & Stratton 320000 engine. It's an air-cooled, gasoline-powered engine with one cylinder. The engine puts out 14 horsepower, which is enough for light farm work. It has a displacement of 32.4 cubic inches. The tractor has a belt-driven gear transmission with 4 forward gears and 1 reverse gear. This gives the driver good control over speed and power. The MTD 960 Fourteen Hundred has some handy features. It has an independent PTO (power take-off) with a manual clutch. This lets you use different tools with the tractor. The tractor has an open operator station, which means no cab. It starts easily with an electric starter. While it's a basic model, it's a reliable choice for small-scale farming and gardening tasks.
Full specifications
Every recorded spec
General
| Manufacturer | MTD |
|---|---|
| Model | 960 Fourteen Hundred |
| Category | Lawn and Garden tractor |
| Type | 4x2 2WD |
| Years built | 1970–1971 |
Engine
| Make | Briggs & Stratton |
|---|---|
| Model | 320000 |
| Power | 14hp |
| Cylinders | 1 |
| Displacement | 32.4ci |
| Bore | 3.54in |
| Stroke | 3.27in |
Transmission
| Type | Belt-driven gear type |
|---|---|
| Forward gears | 4 |
| Reverse gears | 1 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Manual |
| Cab | Open |
Power take-off
| Rear PTO | Independent with manual clutch |
|---|
Head to head
960 Fourteen Hundred vs. Lawn and Garden median
How the MTD 960 Fourteen Hundred compares to other Lawn and Garden tractors
| Spec | This model | Lawn and Garden median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 14 hp | 18 hp | -22% | 26th |
| Engine Displacement | 32.4 ci | 41.1 ci | -21% | 30th |
| Cylinders | 1 | 2 | -50% | 17th |
| Forward Gears | 4 | 6 | -33% | 23rd |
Medians and percentiles are computed from the lawn and garden tractors in our database with a recorded value for each spec (sample sizes 152–380 models).
Compare to tractors with similar specs
Commonly compared MTD tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| MTD 960 Fifteen Hundred | 15 hp | — | 1972+ | Compare → |
| MTD 960 | 16 hp | — | 1973–1976 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Cub Cadet 1440 | 14 hp | 763 lb | — | Compare → |
| Cub Cadet 1450 | 14 hp | — | 1974–1980 | Compare → |
| Bolens G152 | 15 hp | 1,034 lb | — | Compare → |
| Bolens G154 | 15 hp | 1,124 lb | — | Compare → |
| Bolens H1502 | 15 hp | 1,080 lb | — | Compare → |
Explore
MTD siblings
Brand siblingExplore
Similar-spec models

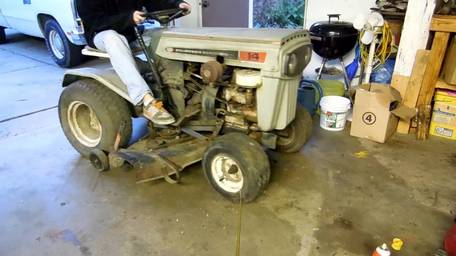

Gallery
MTD 960 Fourteen Hundred photos
FAQ
Common questions
When was the MTD 960 Fourteen Hundred made?
The MTD 960 Fourteen Hundred was manufactured from 1970 to 1971.
Which transmission does the MTD 960 Fourteen Hundred use?
The MTD 960 Fourteen Hundred is equipped with a Belt-driven gear type transmission with 4 forward gears.
What is the engine power output of the MTD 960 Fourteen Hundred?
Rated engine output for the MTD 960 Fourteen Hundred is 14 hp, delivered by a 1-cylinder engine. The engine displaces 32.4 ci.
How do I maintain a MTD 960 Fourteen Hundred?
Routine service for the MTD 960 Fourteen Hundred covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
