New Holland 1715

New Holland 1715

Complete specifications and technical data for the New Holland 1715. Compare with similar tractors from New Holland and other manufacturers.

Jump to Full Specifications List

Quick Specs

Category

Utility

Engine Power Output

27hp

Operating Weight

1,929 lb

Transmission

Gear

The New Holland 1715 is a utility tractor that was made from 1992 to 1997. It's a compact machine, measuring 112.4 inches long, 51.3 inches wide, and 84.4 inches tall. This tractor has a 2WD drive sys...

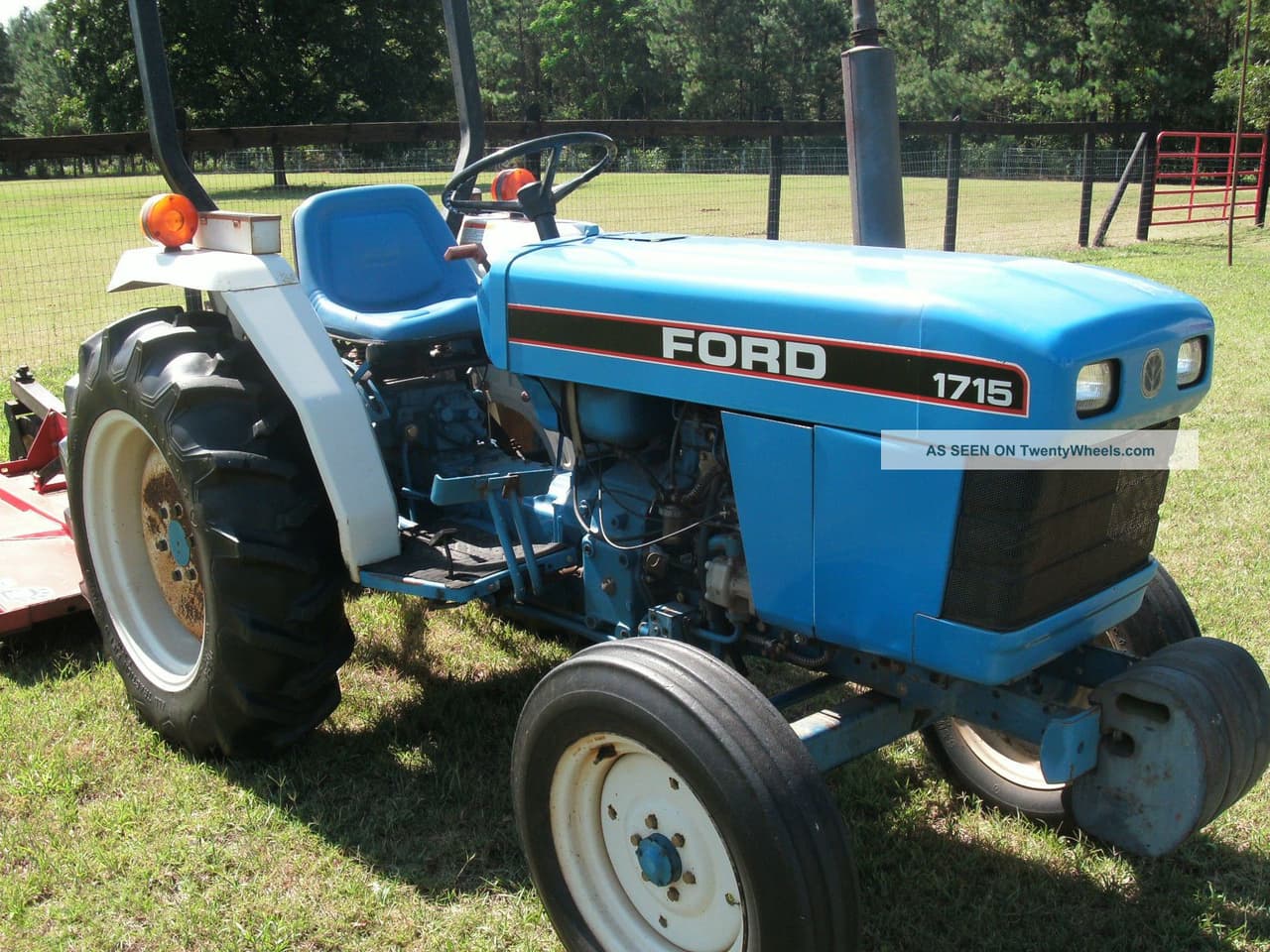

Photo Gallery

Image Gallery
New Holland 1715 Tractor
New Holland 1715 Tractor
New Holland 1715 Tractor
New Holland 1715 Tractor
New Holland 1715 Tractor

Specifications

Manufacturer
New Holland
Model
1715
Category
Utility
Manufacturing Years
1992 - 1997
Manufacturer
Shibaura
Model
J843
Power Output
27.3hp
Rated RPM
2,600RPM
Cylinders
3
Displacement
81.2ci
Bore
3.31in
Stroke
3.15in

Engine Power Output Comparison of New Holland 1715 vs. Other Utility Tractors

Loading Chart...

Type
Gear
Length
112.4in
Width
51.3in
Height
84.4in
Operating Weight
1,929lb

Operating Weight Comparison of New Holland 1715 vs. Other Utility Tractors

Loading Chart...

System Type
Open center
Steering Type
Manual
Type
Transmission
Speed 1
540rpm
Hitch Type
Three-Point Hitch
Hitch Category
I
Hitch Position
Rear
Hitch Capacity
1,632lb
Chassis Type
4x2 2WD
Drive Type
2WD
Steering Type
Manual
Type
Open operator station with two-post ROPS

Compare to Other Tractors

Frequently Asked Questions

What years was the New Holland 1715 manufactured?

The New Holland 1715 was manufactured from 1992 - 1997.

What is the engine power output of the New Holland 1715?

The New Holland 1715 has an engine power output of 27.3 hp.

How many cylinders does the New Holland 1715 have?

The New Holland 1715 is equipped with a 3-cylinder engine.

What is the operating weight of the New Holland 1715?

The operating weight of the New Holland 1715 is approximately 1,929 lb.

What type of transmission does the New Holland 1715 have?

The New Holland 1715 is equipped with a Gear transmission.

What type of hydraulic system does the New Holland 1715 use?

The New Holland 1715 uses a Open center hydraulic system.

What hitch category is the New Holland 1715?

The New Holland 1715 is a Category I hitch.

What maintenance does the New Holland 1715 require?

Regular maintenance for the New Holland 1715 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
