UtilityPerformance profile
New Holland 2120
The New Holland 2120 is a utility tractor made from 1991 to 2000. It has a 4x2 2WD chassis and uses hydrostatic power steering. The tractor has a gear-type transmission with 12 forward and 4 reverse gears. It's powered by a Shibaura T854 diesel engine with 4 cylinders and natural aspiration. The engine puts out 40 hp at 2500 rpm, which is about average for its class. This tractor is compact, measuring 137.2 inches long, 61.8 inches wide, and 92.9 inches tall. It weighs 3572 lb, making it lighter than many other tractors. The New Holland 2120 has a Category 1 hitch and a 540 rpm PTO speed. It features an open center hydraulic system and can come with a two-post ROPS or optional FOPS canopy. The tractor has wet disc brakes and an electric starter. It also has a fuel tank that can hold 11.1 US gallons and a wheelbase of 74.8 inches.
ManufacturerNew HollandPower40 hpEngine4-cylTransGear type
Quick specs
- Category
- Utility
- Engine Power Output
- 40hp
- Operating Weight
- 3,572 lb
- Transmission
- Gear type
At a glance
How the 2120 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
40 hp · 33rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 2120 ranks at the 33rd percentile for engine power among recorded utility tractors.
Overview
About the New Holland 2120
The New Holland 2120 is a utility tractor made from 1991 to 2000. It has a 4x2 2WD chassis and uses hydrostatic power steering. The tractor has a gear-type transmission with 12 forward and 4 reverse gears. It's powered by a Shibaura T854 diesel engine with 4 cylinders and natural aspiration. The engine puts out 40 hp at 2500 rpm, which is about average for its class. This tractor is compact, measuring 137.2 inches long, 61.8 inches wide, and 92.9 inches tall. It weighs 3572 lb, making it lighter than many other tractors. The New Holland 2120 has a Category 1 hitch and a 540 rpm PTO speed. It features an open center hydraulic system and can come with a two-post ROPS or optional FOPS canopy. The tractor has wet disc brakes and an electric starter. It also has a fuel tank that can hold 11.1 US gallons and a wheelbase of 74.8 inches.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | 2120 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1991–2000 |
| Operating weight | 3,572lb |
Engine
| Make | Shibaura |
|---|---|
| Model | T854 |
| Power | 40hp |
| Cylinders | 4 |
| Displacement | 138.4ci |
| Bore | 3.35in |
| Stroke | 3.94in |
Transmission
| Type | Gear type |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Steering | Hydrostatic power |
| Brakes | Wet disc type |
| Cab | Two-post ROPS or FOPS canopy (optional) |
Hydraulics
| Type | Open center |
|---|
Power take-off
| PTO speed | 540rpm |
|---|
Dimensions
| Length | 137.2in |
|---|---|
| Width | 61.8in |
| Height | 92.9in |
| Operating weight | 3,572lb |
Capacities
| Cooling system | 2.13gal |
|---|
Head to head
2120 vs. Utility median
How the New Holland 2120 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 40 hp | 55 hp | -27% | 33rd |
| Engine Displacement | 138 ci | 183 ci | -24% | 35th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 3,572 lb | 5,303 lb | -33% | 30th |
| Length | 137 in | 137 in | 0% | 50th |
| Width | 61.8 in | 66 in | -6% | 40th |
| Height | 92.9 in | 94.1 in | -1% | 47th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 3,933–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland Boomer 3040 | 40 hp | 3,295 lb | — | Compare → |
| New Holland Boomer 40 (2017-) | 40 hp | 2,800 lb | 2017+ | Compare → |
| New Holland T2310 | 40 hp | 4,026 lb | — | Compare → |
| New Holland TC40 | 40 hp | 3,147 lb | 2001–2003 | Compare → |
| New Holland TT45A | 40 hp | 3,600 lb | 2007–2008 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Advance-Rumely OilPull K 12/20 | 40 hp | 6,430 lb | — | Compare → |
| Allis Chalmers 160 | 40 hp | 4,674 lb | 1970–1975 | Compare → |
| Allis Chalmers 5040 | 40 hp | 3,858 lb | 1976–1980 | Compare → |
| Allis Chalmers 6140 | 40 hp | 4,000 lb | 1982–1985 | Compare → |
| Allis Chalmers D15 Series I | 40 hp | 3,990 lb | 1960–1963 | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

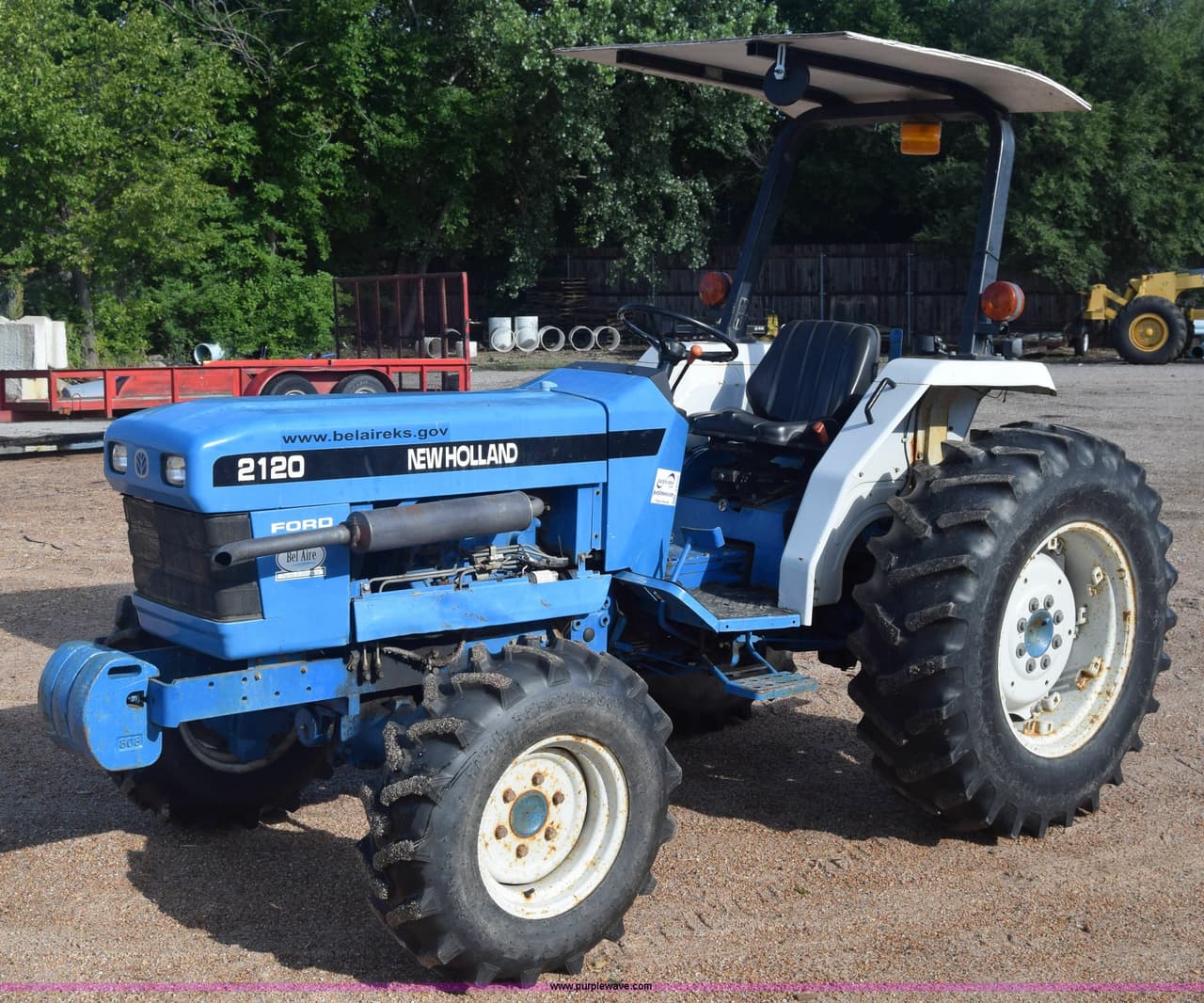

New Holland 2120 photos
FAQ
Common questions
What years was the New Holland 2120 manufactured?
Production of the New Holland 2120 ran from 1991 through 2000.
How powerful is the New Holland 2120?
The New Holland 2120 has an engine power output of 40 hp. It is powered by a 4-cylinder engine displacing 138.4 ci.
What is the working weight of the New Holland 2120?
The operating weight of the New Holland 2120 is approximately 3,572 lb.
What type of transmission does the New Holland 2120 have?
The New Holland 2120 uses a Gear type transmission offering 12 forward gears.
What type of hydraulic system does the New Holland 2120 use?
Hydraulics on the New Holland 2120 are Open center.
What hitch category is the New Holland 2120?
The New Holland 2120 uses a Category Category 1 hitch.
What routine service does the New Holland 2120 need?
Regular maintenance for the New Holland 2120 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
