Utility tractorsSpec sheet
New Holland 4635
The New Holland 4635 is a utility tractor built from 1996 to 1999. It's a 2WD model with hydrostatic power steering, making it easy to handle. The tractor has a manual transmission with 12 forward gears and 4 reverse gears, giving drivers plenty of options for different tasks. Under the hood, the 4635 has an Iveco 8035.05 engine. This diesel engine has 3 cylinders and is naturally aspirated, which means it doesn't use a turbocharger. It's liquid-cooled to keep it running smoothly. The engine puts out 60 hp at 2500 rpm, which is above average power for tractors in this class. The engine size is average compared to similar tractors. This New Holland model weighs 7209 lb, which is on the heavier side for utility tractors. It has a Category II hitch at the rear, useful for attaching various implements.
ManufacturerNew HollandPower60 hp(44.7 kW)Class60–100 HP tractors →Engine3-cylinderTransmissionManual
Key specifications
- Category
- Utility
- Engine power
- 60hp
- Operating weight
- 7,209 lb
- Transmission
- Manual
Category comparison
4635 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
60 hp · 54th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 4635 ranks at the 54th percentile for engine power among recorded utility tractors.
Overview
About the New Holland 4635
The New Holland 4635 is a utility tractor built from 1996 to 1999. It's a 2WD model with hydrostatic power steering, making it easy to handle. The tractor has a manual transmission with 12 forward gears and 4 reverse gears, giving drivers plenty of options for different tasks. Under the hood, the 4635 has an Iveco 8035.05 engine. This diesel engine has 3 cylinders and is naturally aspirated, which means it doesn't use a turbocharger. It's liquid-cooled to keep it running smoothly. The engine puts out 60 hp at 2500 rpm, which is above average power for tractors in this class. The engine size is average compared to similar tractors. This New Holland model weighs 7209 lb, which is on the heavier side for utility tractors. It has a Category II hitch at the rear, useful for attaching various implements.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | 4635 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1996–1999 |
| Operating weight | 7,209lb(3,270 kg) |
Engine
| Make | Iveco |
|---|---|
| Model | 8035.05 |
| Power | 60hp(44.74 kW) |
| Cylinders | 3 |
| Displacement | 178.9ci(2.93 L) |
| Bore | 4.09in(104 mm) |
| Stroke | 4.53in(115 mm) |
Transmission
| Type | Manual |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Cab | Open |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Operating weight | 7,209lb(3,270 kg) |
|---|
Closest alternatives
4635 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the 4635 are the New Holland TD5010 and the New Holland 4010. The New Holland TD5010 matches it on rated power and weighs 1,210 lb less, carrying 100 lb per horsepower against 120 lb. It entered production in 2009, 13 years after the 4635. The New Holland 4010 matches it on rated power.
| Spec | New Holland 4635 | New Holland TD5010 | New Holland 4010 |
|---|---|---|---|
| Engine power | 60 hp44.7 kW | 60 hp44.7 kW | 60 hp44.7 kW |
| Operating weight | 7,209 lb3,270 kg | 5,997 lb2,720 kg | - |
| Weight per hp | 120 lb/hp73 kg/kW | 100 lb/hp61 kg/kW | - |
| Displacement | 178.9 ci2.93 L | 195 ci3.2 L | 177 ci2.9 L |
| Cylinders | 3 | 4 | 3 |
| Transmission | Manual | Partially synchronized mechanical shuttle | Constant mesh |
| Drive | 2WD | 2WD | - |
| Years built | 1996-1999 | 2009-2019 | - |
Calculators
Calculators for the 4635
PTO power
About 50 to 54 PTO hp
Estimated from the 60 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 60 hp tractor can run
Maximum size is about a 7 ft rotary cutter or a 6 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
140 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
60 hp is 44.7 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the New Holland 4635
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Iveco 8035.05Amazon
Fits the Iveco 8035.05 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Iveco 8035.05Amazon
Fits the Iveco 8035.05 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Iveco 8035.05Amazon
Fits the Iveco 8035.05 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Iveco 8035.05Amazon
Fits the Iveco 8035.05 3-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- New Holland 4635 service and repair manualseManualOnline
Digital manuals. Built 1996 to 1999. Check the serial number range on the listing.
- New Holland 4635 operator's manualAmazon
Printed and reprint manuals. Built 1996 to 1999. Check the serial number range on the listing.
- New Holland 4635 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
4635 vs. Utility median
New Holland 4635 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 60 hp | 55 hp | +9% | 54th |
| Engine Displacement | 179 ci | 183 ci | -2% | 47th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 7,209 lb | 5,303 lb | +36% | 69th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 4,941–5,720 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery

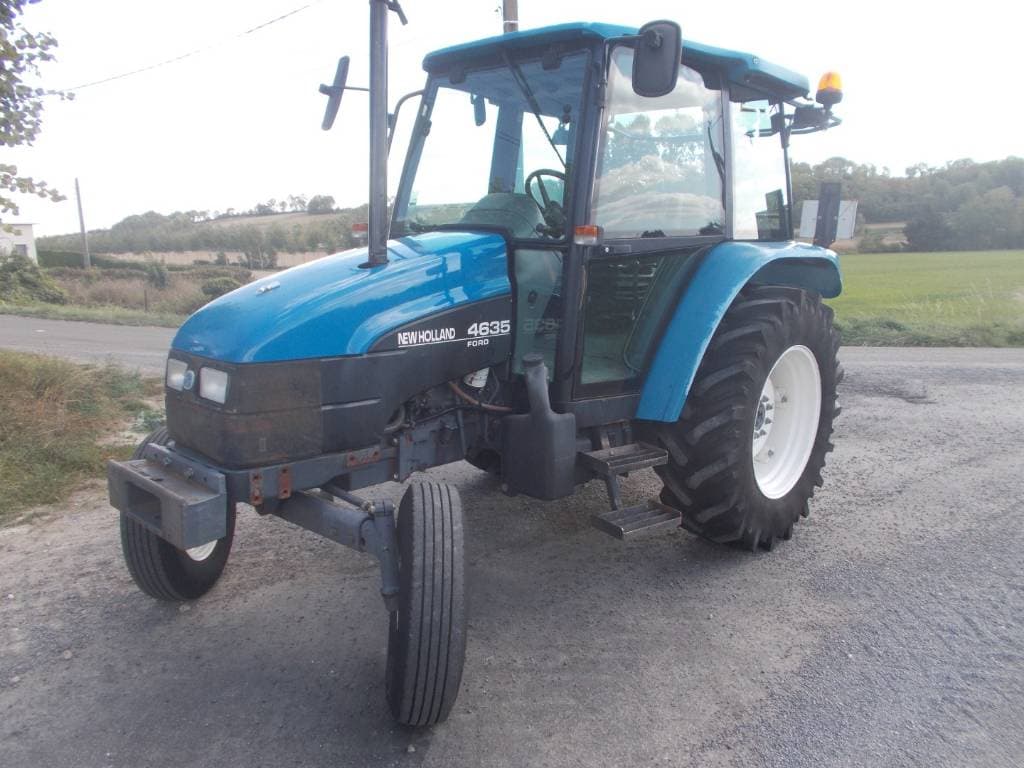

New Holland 4635 photos
FAQ
Frequently asked questions
When was the New Holland 4635 in production?
New Holland 4635 production started in 1996 and ended in 1999.
What hydraulics does the New Holland 4635 have?
The New Holland 4635 uses an Open center hydraulic system.
What three-point hitch category does the New Holland 4635 use?
The New Holland 4635 has a Category 3 three-point hitch.
How much horsepower does the New Holland 4635 have?
The New Holland 4635 produces 60 hp from its 3-cylinder engine. Engine displacement is 178.9 ci.
How much does the New Holland 4635 weigh?
The New Holland 4635 weighs about 7,209 lb in operating condition.
What transmission is in the New Holland 4635?
Transmission on the New Holland 4635 is Manual, with 12 forward speeds.
What maintenance does the New Holland 4635 require?
The New Holland 4635 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
