UtilityPerformance profile
New Holland TN70A
The New Holland TN70A is a utility tractor that was made from 2004 to 2008. It has a 2WD drive system and a 3-cylinder diesel engine made by Iveco. The engine is turbocharged and liquid-cooled, producing 60.7 hp at 2245 rpm. This power output is above average compared to similar tractors. The TN70A has a partially synchronized transmission with 16 forward and 16 reverse gears, giving farmers plenty of options for different tasks. This tractor is built for versatility on the farm. It has a Category II rear hitch that can lift up to 3915 lb, which is very high for its class. The hydraulic system is open center type with a pump that can deliver 15.5 GPM. The TN70A has a ROPS (Roll-Over Protective Structure) for safety. It measures 153.3 inches long, 67.2 inches wide, and 95.1 inches tall. With an operating weight of 5215 lb, it's about average in terms of size for utility tractors. The fuel efficiency is good, using about 3.83 gallons per hour at maximum power.
ManufacturerNew HollandPower60.7 hpEngine3-cylTransPartially synchronized with mechanical shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 61hp
- Operating Weight
- 5,215 lb
- Transmission
- Partially synchronized with mechanical shuttle
At a glance
How the TN70A compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
60.7 hp · 55th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The TN70A ranks at the 55th percentile for engine power among recorded utility tractors.
Overview
About the New Holland TN70A
The New Holland TN70A is a utility tractor that was made from 2004 to 2008. It has a 2WD drive system and a 3-cylinder diesel engine made by Iveco. The engine is turbocharged and liquid-cooled, producing 60.7 hp at 2245 rpm. This power output is above average compared to similar tractors. The TN70A has a partially synchronized transmission with 16 forward and 16 reverse gears, giving farmers plenty of options for different tasks. This tractor is built for versatility on the farm. It has a Category II rear hitch that can lift up to 3915 lb, which is very high for its class. The hydraulic system is open center type with a pump that can deliver 15.5 GPM. The TN70A has a ROPS (Roll-Over Protective Structure) for safety. It measures 153.3 inches long, 67.2 inches wide, and 95.1 inches tall. With an operating weight of 5215 lb, it's about average in terms of size for utility tractors. The fuel efficiency is good, using about 3.83 gallons per hour at maximum power.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | TN70A |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 2004–2008 |
| Operating weight | 5,215lb |
Engine
| Make | Iveco |
|---|---|
| Power | 60.7hp |
| Cylinders | 3 |
| Displacement | 178.8ci |
| Bore | 4.09in |
| Stroke | 4.53in |
Transmission
| Type | Partially synchronized with mechanical shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Hydrostatic power |
| Cab | ROPS |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Length | 153.3in |
|---|---|
| Width | 67.2in |
| Height | 95.1in |
| Operating weight | 5,215lb |
Tires
| Front | 20 |
|---|---|
| Rear | 28 |
Head to head
TN70A vs. Utility median
How the New Holland TN70A compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 60.7 hp | 55 hp | +10% | 55th |
| Engine Displacement | 179 ci | 183 ci | -2% | 47th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 5,215 lb | 5,303 lb | -2% | 50th |
| Length | 153 in | 137 in | +12% | 70th |
| Width | 67.2 in | 66 in | +2% | 54th |
| Height | 95.1 in | 94.1 in | +1% | 52nd |
| 3-Point Hitch Capacity | 3,915 lb | 3,197 lb | +22% | 64th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland TN70DA | 60.5 hp | — | — | Compare → |
| New Holland TL60E | 61 hp | — | 2006+ | Compare → |
| New Holland 4010 | 60 hp | — | — | Compare → |
| New Holland 4635 | 60 hp | 7,209 lb | 1996–1999 | Compare → |
| New Holland Boomer 4060 | 60 hp | 4,229 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Barreiros R-500 B | 60 hp | — | — | Compare → |
| AGCO GT55A | 58.89 hp | 6,400 lb | — | Compare → |
| Allis Chalmers D17 | 63 hp | 4,675 lb | 1957–1967 | Compare → |
| Allis Chalmers 6070 | 58.35 hp | 7,460 lb | — | Compare → |
| Allis Chalmers 6060 | 63.21 hp | 6,465 lb | 1980–1984 | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

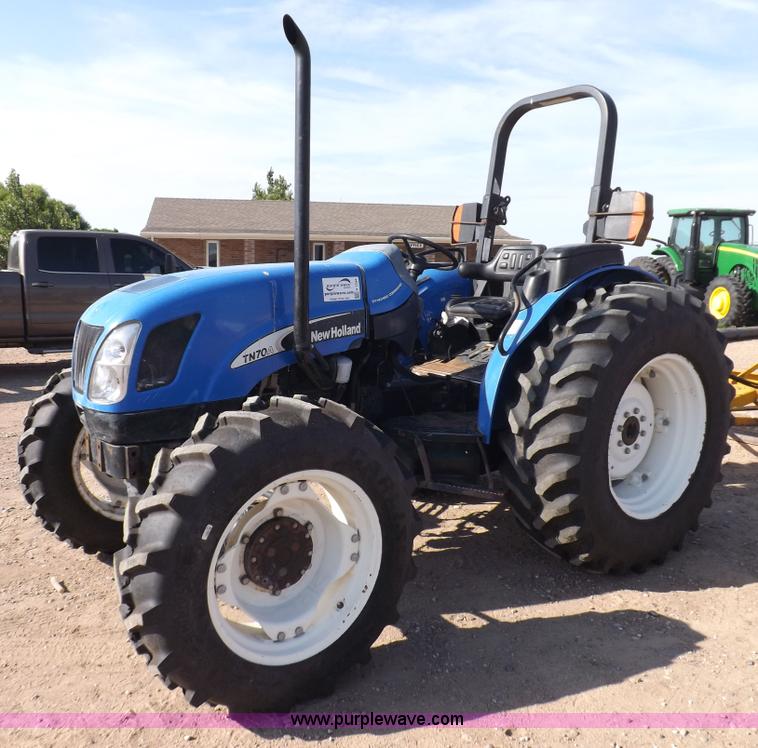

New Holland TN70A photos
FAQ
Common questions
When was the New Holland TN70A made?
The New Holland TN70A was manufactured from 2004 to 2008.
What are the factory tire sizes for the New Holland TN70A?
The New Holland TN70A comes with 20 front tires and 28 rear tires.
What three-point hitch category does the New Holland TN70A use?
The New Holland TN70A has a Category Category II three-point hitch rated to lift 3,915 lb.
What is the engine power output of the New Holland TN70A?
Rated engine output for the New Holland TN70A is 60.7 hp, delivered by a 3-cylinder engine. The engine displaces 178.8 ci.
What is the operating weight of the New Holland TN70A?
In working trim, the New Holland TN70A comes in at roughly 5,215 lb.
Which transmission does the New Holland TN70A use?
The New Holland TN70A is equipped with a Partially synchronized with mechanical shuttle transmission with 16 forward gears.
What hydraulics does the New Holland TN70A have?
The New Holland TN70A uses an Open center hydraulic system.
How do I maintain a New Holland TN70A?
Routine service for the New Holland TN70A covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
