New Holland 4835
The New Holland 4835 is a utility tractor made from 1996 to 1999. It has a 2WD chassis and power steering, making it easy to drive. The tractor uses a Fiat diesel engine with 4 cylinders and 57.28 hp. This engine power is about average for tractors of its kind. The engine is cooled by liquid and doesn't use a turbocharger. This tractor has a strong hitch that can lift up to 7,125 lb, which is very high compared to other tractors. It weighs 7,090 lb, which is above average. The hydraulic system can pump 8.5 gpm of fluid at 2,755 psi pressure. The New Holland 4835 has a ROPS (Roll-Over Protective Structure) for safety. It uses wet disc brakes and has an electric starter. The tractor is 72.6 inches wide and 105.5 inches tall, making it suitable for various farm tasks.
ManufacturerNew HollandPower57.28 hpEngine4-cylTransSelective gear fixed ratio
Quick specs
- Category
- Utility
- Engine Power Output
- 57hp
- Operating Weight
- 7,090 lb
- Transmission
- Selective gear fixed ratio
At a glance
How the 4835 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
57.28 hp · 51st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 4835 ranks at the 51st percentile for engine power among recorded utility tractors.
Overview
About the New Holland 4835
The New Holland 4835 is a utility tractor made from 1996 to 1999. It has a 2WD chassis and power steering, making it easy to drive. The tractor uses a Fiat diesel engine with 4 cylinders and 57.28 hp. This engine power is about average for tractors of its kind. The engine is cooled by liquid and doesn't use a turbocharger. This tractor has a strong hitch that can lift up to 7,125 lb, which is very high compared to other tractors. It weighs 7,090 lb, which is above average. The hydraulic system can pump 8.5 gpm of fluid at 2,755 psi pressure. The New Holland 4835 has a ROPS (Roll-Over Protective Structure) for safety. It uses wet disc brakes and has an electric starter. The tractor is 72.6 inches wide and 105.5 inches tall, making it suitable for various farm tasks.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | 4835 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1996–1999 |
| Operating weight | 7,090lb |
Engine
| Make | Fiat |
|---|---|
| Model | Diesel |
| Power | 57.28hp |
| Cylinders | 4 |
| Displacement | 220ci |
| Bore | 3.94in |
| Stroke | 4.53in |
Transmission
| Type | Selective gear fixed ratio |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Brakes | Wet multiple disc hydraulically actuated |
| Cab | ROPS |
Hydraulics
| Type | Open center |
|---|---|
| Pump flow | 8.5gpm |
| Pressure | 2,755psi |
Dimensions
| Width | 72.6in |
|---|---|
| Height | 105.5in |
| Operating weight | 7,090lb |
Tires
| Front | 7.50-16 |
|---|---|
| Rear | 480/70R30 |
Capacities
| Cooling system | 3.7gal |
|---|
Head to head
4835 vs. Utility median
How the New Holland 4835 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 57.3 hp | 55 hp | +4% | 51st |
| Engine Displacement | 220 ci | 183 ci | +20% | 60th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 12 | 12 | at median | 50th |
| Operating Weight | 7,090 lb | 5,303 lb | +34% | 68th |
| Width | 72.6 in | 66 in | +10% | 66th |
| Height | 106 in | 94.1 in | +12% | 78th |
| 3-Point Hitch Capacity | 7,125 lb | 3,197 lb | +123% | 84th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland Workmaster 70 | 56.93 hp | 5,070 lb | 2015+ | Compare → |
| New Holland 4630 | 56.32 hp | 5,194 lb | — | Compare → |
| New Holland TT60A | 56 hp | 4,540 lb | 2007–2008 | Compare → |
| New Holland T4020 | 58.7 hp | 8,015 lb | — | Compare → |
| New Holland TL70 | 58.9 hp | 7,825 lb | 1999–2001 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 400A | 57 hp | 6,600 lb | — | Compare → |
| Belarus 405A | 57 hp | 7,650 lb | — | Compare → |
| Belarus 420A | 57 hp | 7,300 lb | — | Compare → |
| Belarus 425A | 57 hp | 8,700 lb | — | Compare → |
| Allis Chalmers 615 | 56.9 hp | — | 1966–1974 | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

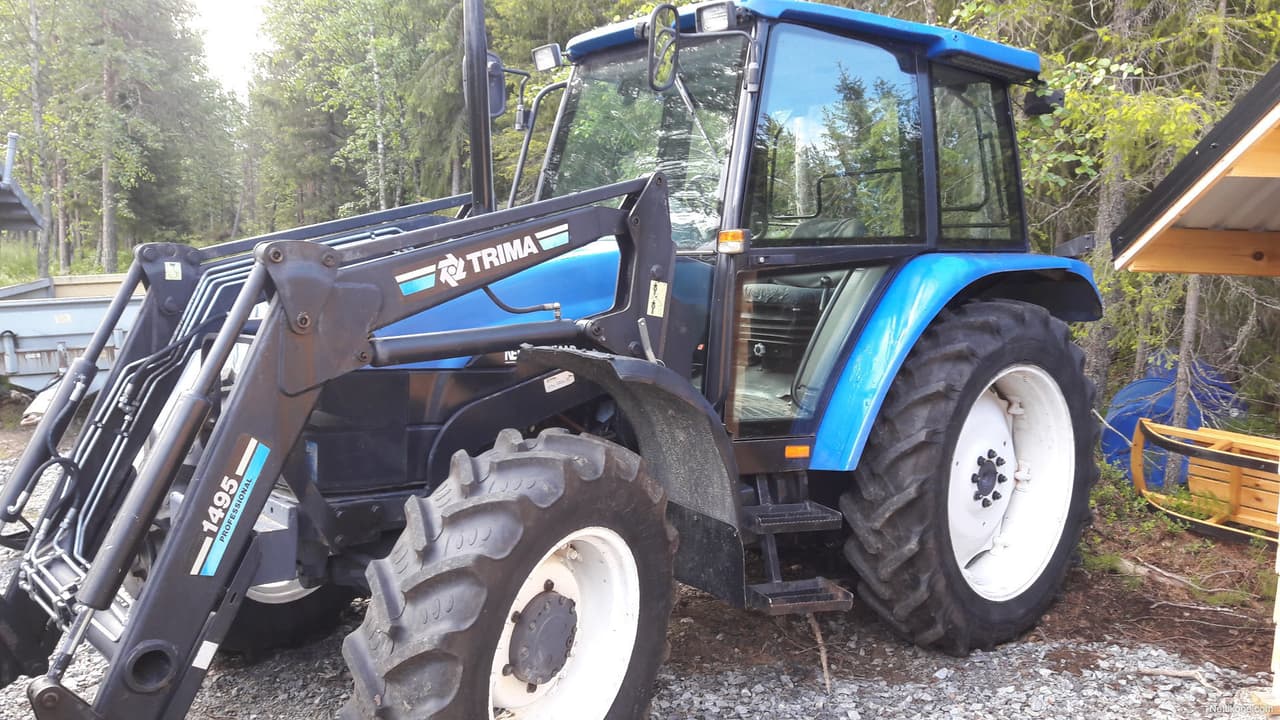

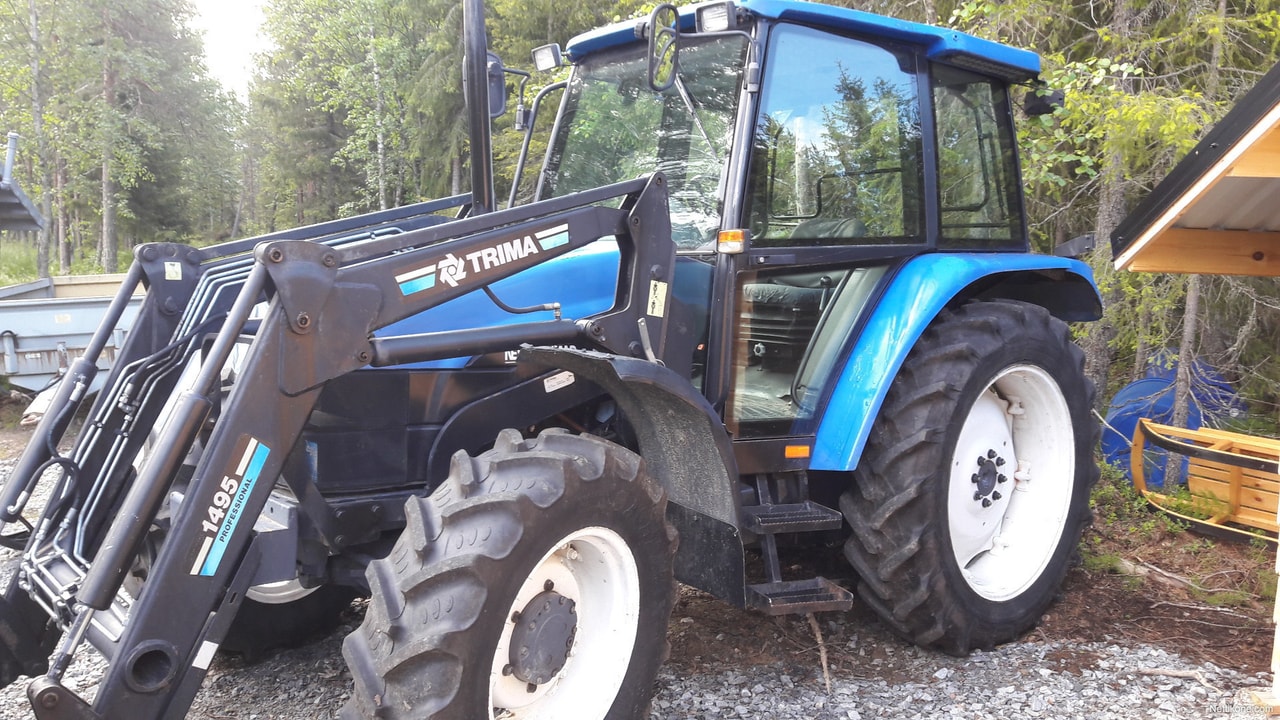

New Holland 4835 photos
FAQ
Common questions
What years was the New Holland 4835 manufactured?
Production of the New Holland 4835 ran from 1996 through 1999.
What type of transmission does the New Holland 4835 have?
The New Holland 4835 uses a Selective gear fixed ratio transmission offering 12 forward gears.
What hydraulics does the New Holland 4835 have?
The New Holland 4835 uses an Open center hydraulic system with a pump flow of 8.5 gpm.
What are the factory tire sizes for the New Holland 4835?
The New Holland 4835 comes with 7.50-16 front tires and 480/70R30 rear tires.
What three-point hitch category does the New Holland 4835 use?
The New Holland 4835 has a Category II three-point hitch rated to lift 7,125 lb.
How powerful is the New Holland 4835?
The New Holland 4835 has an engine power output of 57.28 hp. It is powered by a 4-cylinder engine displacing 220 ci.
What is the working weight of the New Holland 4835?
The operating weight of the New Holland 4835 is approximately 7,090 lb.
What routine service does the New Holland 4835 need?
Regular maintenance for the New Holland 4835 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
