New Holland Workmaster 70

New Holland Workmaster 70

Complete specifications and technical data for the New Holland Workmaster 70. Compare with similar tractors from New Holland and other manufacturers.

Jump to Full Specifications List

Quick Specs

Category

Utility

Engine Power Output

57hp

Operating Weight

5,070 lb

Transmission

Synchronized Shuttle

The New Holland Workmaster 70 is a utility tractor built for tough jobs on the farm. It has a strong 3-cylinder diesel engine that makes about 57 horsepower. This engine is turbocharged, which means i...

Photo Gallery

Image Gallery

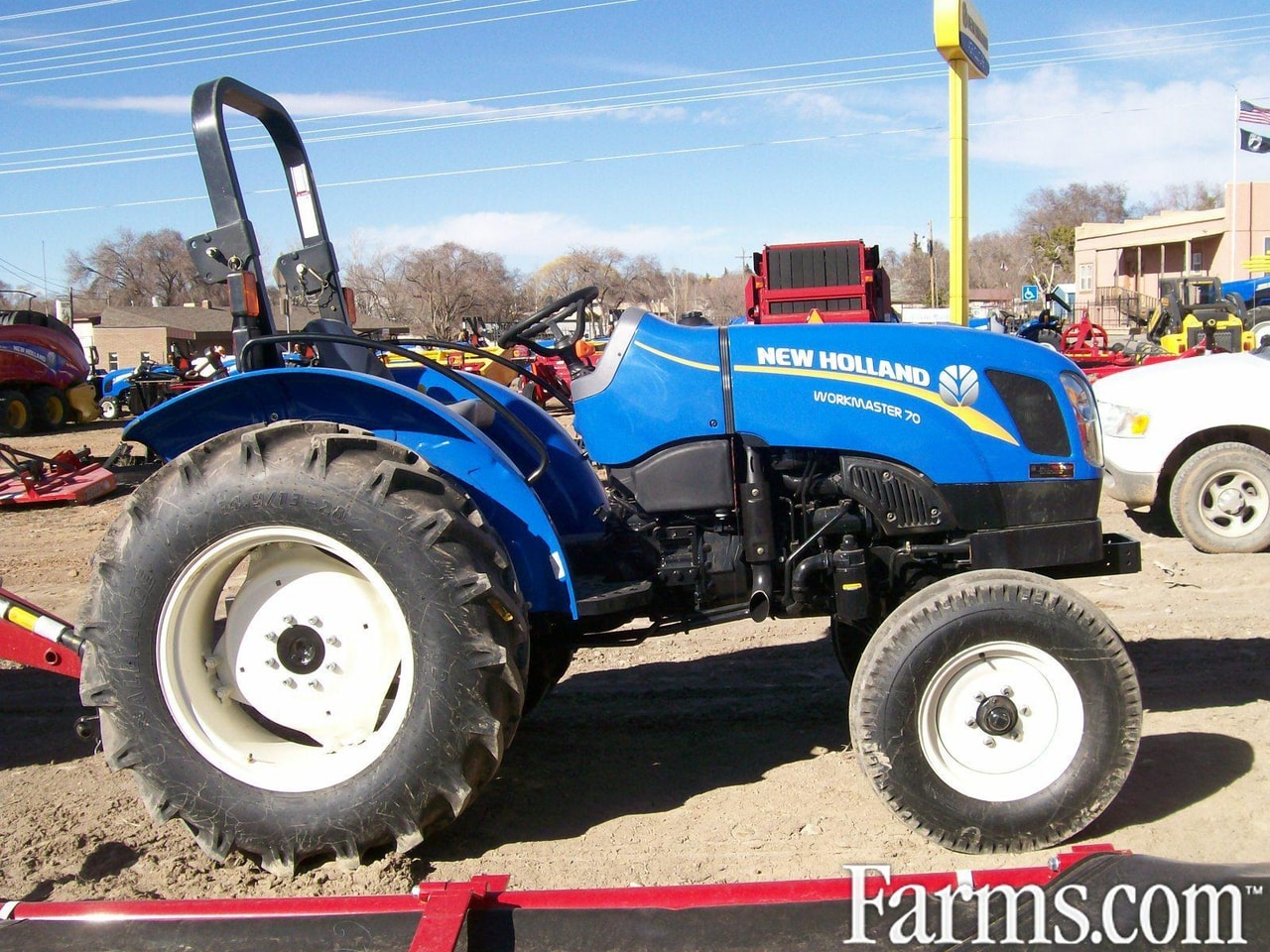

New Holland Workmaster 70 Tractor
New Holland Workmaster 70 Tractor
New Holland Workmaster 70 Tractor
New Holland Workmaster 70 Tractor
New Holland Workmaster 70 Tractor
New Holland Workmaster 70 Tractor

Specifications

Manufacturer
New Holland
Model
Workmaster 70
Category
Utility
Manufacturing Years
2015
Manufacturer
FCA Diesel
Model
R753
Power Output
56.93hp
Rated RPM
2,600RPM
Cylinders
3
Displacement
136ci
Bore
3.7in
Stroke
4.21in

Engine Power Output Comparison of New Holland Workmaster 70 vs. Other Utility Tractors

Loading Chart...

Type
Synchronized Shuttle
Length
134in
Width
77.2in
Height
97.2in
Operating Weight
5,070lb

Operating Weight Comparison of New Holland Workmaster 70 vs. Other Utility Tractors

Loading Chart...

System Type
Open center
Pump Flow Capacity
11.2gpm
Steering Type
Power
Type
Independent with mechanical clutch
Speed 1
540rpm
PTO Speed (2nd)
540rpm
Speed 2
540rpm
Front Tire Size
12.5/80-18
Rear
18.4-24
Hitch Category
II/I
Hitch Position
Rear
Hitch Capacity
3,310lb
Chassis Type
4x4 MFWD 4WD
Drive Type
4WD
Steering Type
Power
Brake Type
Wet disc
Type
Two-post folding ROPS

Compare to Other Tractors

Frequently Asked Questions

What years was the New Holland Workmaster 70 manufactured?

The New Holland Workmaster 70 was manufactured from 2015.

What is the engine power output of the New Holland Workmaster 70?

The New Holland Workmaster 70 has an engine power output of 56.93 hp.

How many cylinders does the New Holland Workmaster 70 have?

The New Holland Workmaster 70 is equipped with a 3-cylinder engine.

What is the operating weight of the New Holland Workmaster 70?

The operating weight of the New Holland Workmaster 70 is approximately 5,070 lb.

What type of transmission does the New Holland Workmaster 70 have?

The New Holland Workmaster 70 is equipped with a Synchronized Shuttle transmission.

What type of hydraulic system does the New Holland Workmaster 70 use?

The New Holland Workmaster 70 uses a Open center hydraulic system.

What size tires does the New Holland Workmaster 70 use?

The New Holland Workmaster 70 comes with 12.5/80-18 front tires and 18.4-24 rear tires.

What hitch category is the New Holland Workmaster 70?

The New Holland Workmaster 70 is a Category II/I hitch.

What maintenance does the New Holland Workmaster 70 require?

Regular maintenance for the New Holland Workmaster 70 includes checking and changing engine oil, hydraulic fluid, filters, and performing routine inspections as recommended in the owner's manual. Always refer to the manufacturer's maintenance schedule for specific intervals and procedures.
