Same brandUtility tractorsSpec sheet
New Holland 7635
The New Holland 7635 is a utility tractor that was made from 1996 to 1999. It's a 2WD tractor with power steering, which makes it easy to drive. The tractor has a partial power shift transmission with 24 forward gears and 12 reverse gears, giving the driver lots of options for different jobs. Under the hood, the 7635 has a strong Iveco diesel engine with 4 cylinders. The engine is turbocharged and liquid-cooled, which helps it run well. It can produce 95 hp at 2500 rpm, which is above average power for tractors like this. The engine size is also above average at 238 cubic inches. This tractor weighs 6834 pounds, which is about average for its class. It has a three-point hitch at the back for attaching tools and an open center hydraulic system. The New Holland 7635 also has an electric starter and a thermostart feature to help it start in cold weather.
ManufacturerNew HollandPower95 hp(70.8 kW)Class60–100 HP tractors →Engine4-cylinderTransmissionPartial power shift
Key specifications
- Category
- Utility
- Engine power
- 95hp
- Operating weight
- 6,834 lb
- Transmission
- Partial power shift
Category comparison
7635 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
95 hp · 81st
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The 7635 ranks at the 81st percentile for engine power among recorded utility tractors.
Overview
About the New Holland 7635
The New Holland 7635 is a utility tractor that was made from 1996 to 1999. It's a 2WD tractor with power steering, which makes it easy to drive. The tractor has a partial power shift transmission with 24 forward gears and 12 reverse gears, giving the driver lots of options for different jobs. Under the hood, the 7635 has a strong Iveco diesel engine with 4 cylinders. The engine is turbocharged and liquid-cooled, which helps it run well. It can produce 95 hp at 2500 rpm, which is above average power for tractors like this. The engine size is also above average at 238 cubic inches. This tractor weighs 6834 pounds, which is about average for its class. It has a three-point hitch at the back for attaching tools and an open center hydraulic system. The New Holland 7635 also has an electric starter and a thermostart feature to help it start in cold weather.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | 7635 |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 1996–1999 |
| Operating weight | 6,834lb(3,100 kg) |
Engine
| Make | Iveco |
|---|---|
| Model | 8045.25 |
| Power | 95hp(70.84 kW) |
| Cylinders | 4 |
| Displacement | 238ci(3.9 L) |
| Bore | 4.09in(104 mm) |
| Stroke | 4.53in(115 mm) |
Transmission
| Type | Partial power shift |
|---|---|
| Forward gears | 24 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
Hydraulics
| Type | Open center |
|---|
Dimensions
| Width | 72.6in(1,844 mm) |
|---|---|
| Height | 105.5in(2,680 mm) |
| Operating weight | 6,834lb(3,100 kg) |
Capacities
| Cooling system | 3.7gal(14.01 L) |
|---|
Closest alternatives
7635 compared with the nearest models by horsepower
The closest utility models to the New Holland 7635 by rated horsepower are the New Holland 7610S and the New Holland 6810S. The New Holland 7610S matches it on rated power and weighs 900 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The New Holland 6810S matches it on rated power.
| Spec | New Holland 7635 | New Holland 7610S | New Holland 6810S |
|---|---|---|---|
| Engine power | 95 hp70.8 kW | 95 hp70.8 kW | 95 hp70.8 kW |
| Operating weight | 6,834 lb3,100 kg | 5,935 lb2,692 kg | - |
| Weight per hp | 72 lb/hp44 kg/kW | 62 lb/hp38 kg/kW | - |
| Displacement | 238 ci3.9 L | 304 ci4.98 L | 304 ci4.98 L |
| Cylinders | 4 | 4 | 4 |
| Transmission | Partial power shift | Unsynchronized gear and two-speed power shift | Manual |
| Drive | 2WD | 2WD | 2WD |
| Years built | 1996-1999 | 1994-2003 | - |
Calculators
Calculators for the 7635
PTO power
About 79 to 86 PTO hp
Estimated from the 95 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 95 hp tractor can run
Maximum size is about a 11.5 ft rotary cutter or a 9.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
84 lb per PTO hp as listed
Heavy draft work calls for 130 to 150 lb/hp. The calculator gives the ballast to add.
Units
95 hp is 70.8 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the New Holland 7635
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the Iveco 8045.25Amazon
Fits the Iveco 8045.25 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the Iveco 8045.25Amazon
Fits the Iveco 8045.25 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the Iveco 8045.25Amazon
Fits the Iveco 8045.25 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the Iveco 8045.25Amazon
Fits the Iveco 8045.25 4-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- New Holland 7635 service and repair manualseManualOnline
Digital manuals. Built 1996 to 1999. Check the serial number range on the listing.
- New Holland 7635 operator's manualAmazon
Printed and reprint manuals. Built 1996 to 1999. Check the serial number range on the listing.
- New Holland 7635 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
7635 vs. Utility median
New Holland 7635 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 95 hp | 55 hp | +73% | 81st |
| Engine Displacement | 238 ci | 183 ci | +30% | 65th |
| Cylinders | 4 | 4 | at median | 50th |
| Forward Gears | 24 | 12 | +100% | 92nd |
| Operating Weight | 6,834 lb | 5,303 lb | +29% | 65th |
| Width | 72.6 in | 66 in | +10% | 66th |
| Height | 106 in | 94.1 in | +12% | 78th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 3,933–5,720 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower

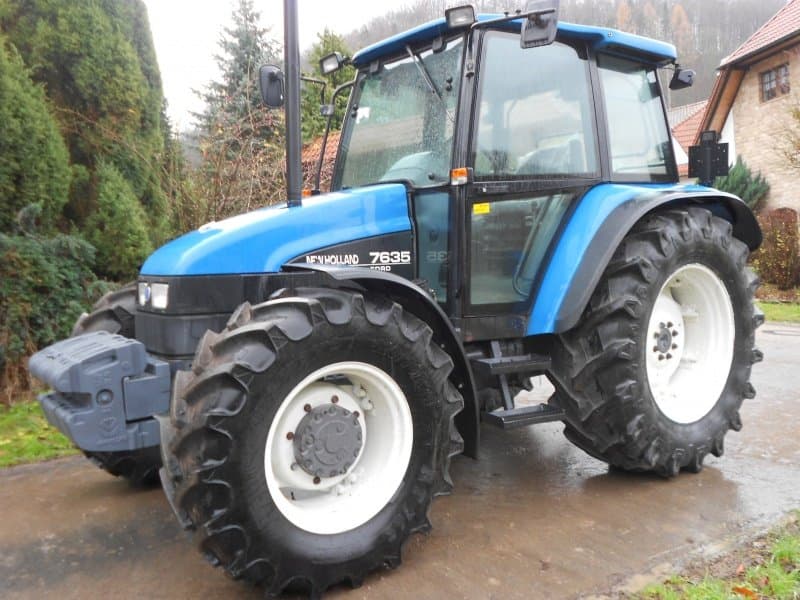

Gallery
New Holland 7635 photos
FAQ
Frequently asked questions
When was the New Holland 7635 in production?
New Holland 7635 production started in 1996 and ended in 1999.
What type of hydraulic system does the New Holland 7635 use?
Hydraulics on the New Holland 7635 are Open center.
How much horsepower does the New Holland 7635 have?
The New Holland 7635 produces 95 hp from its 4-cylinder engine. Engine displacement is 238 ci.
How much does the New Holland 7635 weigh?
The New Holland 7635 weighs about 6,834 lb in operating condition.
What transmission is in the New Holland 7635?
Transmission on the New Holland 7635 is Partial power shift, with 24 forward speeds.
What maintenance does the New Holland 7635 require?
The New Holland 7635 needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
