Row CropPerformance profile
New Holland 8770A
The New Holland 8770A is a powerful row crop tractor built from 2001 to 2003. It has a 4x2 2WD chassis and power steering, making it easy to handle in the fields. The tractor features a full power shift transmission with 16 forward gears and 9 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the 8770A boasts a New Holland diesel engine with 6 cylinders and a turbocharged intercooled system. The engine has an above-average displacement of 456 ci and produces 177 hp at 2100 rpm, which is more powerful than many other tractors in its class. It also has a large coolant capacity of 28 qts to keep the engine running smoothly. The tractor is quite big, measuring 212 inches long and 124 inches high, with a hefty operating weight of 17,250 lb. It comes equipped with a three-point hitch at the rear, rated as category III, and uses a closed center load-sensing hydraulic system for efficient operation of implements.
ManufacturerNew HollandPower177 hpEngine6-cylTransFull power shift
Quick specs
- Category
- Row Crop
- Engine Power Output
- 177hp
- Operating Weight
- 17,250 lb
- Transmission
- Full power shift
At a glance
How the 8770A compares
vs. Row Crop medianDistribution
Engine Power (hp)
Across all Row Crop tractors
177 hp · 69th
This model
12
Median 138 hp
283
This modelRow Crop tractorsMediann = 1,206
The 8770A ranks at the 69th percentile for engine power among recorded row crop tractors.
Overview
About the New Holland 8770A
The New Holland 8770A is a powerful row crop tractor built from 2001 to 2003. It has a 4x2 2WD chassis and power steering, making it easy to handle in the fields. The tractor features a full power shift transmission with 16 forward gears and 9 reverse gears, giving farmers plenty of options for different tasks. Under the hood, the 8770A boasts a New Holland diesel engine with 6 cylinders and a turbocharged intercooled system. The engine has an above-average displacement of 456 ci and produces 177 hp at 2100 rpm, which is more powerful than many other tractors in its class. It also has a large coolant capacity of 28 qts to keep the engine running smoothly. The tractor is quite big, measuring 212 inches long and 124 inches high, with a hefty operating weight of 17,250 lb. It comes equipped with a three-point hitch at the rear, rated as category III, and uses a closed center load-sensing hydraulic system for efficient operation of implements.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | 8770A |
| Category | Row Crop tractor |
| Type | 4x2 2WD |
| Years built | 2001–2003 |
| Operating weight | 17,250lb |
Engine
| Make | New Holland |
|---|---|
| Power | 177hp |
| Cylinders | 6 |
| Displacement | 456ci |
| Bore | 4.4in |
| Stroke | 5in |
Transmission
| Type | Full power shift |
|---|---|
| Forward gears | 16 |
| Reverse gears | 9 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Steering | Power |
| Cab | Cab |
Hydraulics
| Type | Closed center load-sensing |
|---|
Dimensions
| Length | 212in |
|---|---|
| Height | 124in |
| Operating weight | 17,250lb |
Capacities
| Cooling system | 7gal |
|---|
Head to head
8770A vs. Row Crop median
How the New Holland 8770A compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 177 hp | 138 hp | +28% | 69th |
| Engine Displacement | 456 ci | 391 ci | +17% | 80th |
| Cylinders | 6 | 6 | at median | 50th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 17,250 lb | 12,307 lb | +40% | 74th |
| Length | 212 in | 180 in | +18% | 86th |
| Height | 124 in | 114 in | +9% | 83rd |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 1,140–1,417 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland T7.175 | 175 hp | 13,448 lb | — | Compare → |
| New Holland T7.230 | 180 hp | 15,322 lb | — | Compare → |
| New Holland T7.170 | 171 hp | 12,787 lb | — | Compare → |
| New Holland T7.235 | 185 hp | 15,322 lb | — | Compare → |
| New Holland 8670 | 167.6 hp | 16,805 lb | 1993–2000 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Belarus 1500 | 175 hp | 18,600 lb | — | Compare → |
| AGCO RT140A | 179.7 hp | 16,305 lb | — | Compare → |
| Ascot Universal A1800A | 180 hp | 21,400 lb | — | Compare → |
| Agrinar T-180 | 182.5 hp | — | — | Compare → |
| AGCO RT140 | 170 hp | — | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models

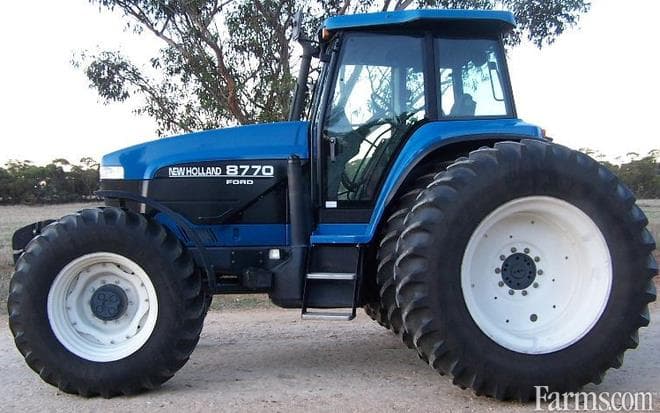

Gallery
New Holland 8770A photos
FAQ
Common questions
When was the New Holland 8770A in production?
New Holland 8770A production started in 2001 and ended in 2003.
What type of hydraulic system does the New Holland 8770A use?
Hydraulics on the New Holland 8770A are Closed center load-sensing.
What hitch category is the New Holland 8770A?
The New Holland 8770A uses a Category III hitch.
How much horsepower does the New Holland 8770A have?
The New Holland 8770A produces 177 hp from its 6-cylinder engine. Engine displacement is 456 ci.
How much does the New Holland 8770A weigh?
The New Holland 8770A weighs about 17,250 lb in operating condition.
What transmission is in the New Holland 8770A?
Transmission on the New Holland 8770A is Full power shift, with 16 forward speeds.
What maintenance does the New Holland 8770A require?
Like any tractor, the New Holland 8770A needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
