New Holland 8970A
Complete specifications and technical data for the New Holland 8970A. Compare with similar tractors from New Holland and other manufacturers.
Quick Specs
Category
Engine Power Output
Operating Weight
Transmission
Strength vs Median
The New Holland 8970A is a powerful row crop tractor built from 2001 to 2003. It has a 2WD chassis and a strong 233 hp diesel engine with 6 cylinders. This engine is turbocharged and intercooled, givi...

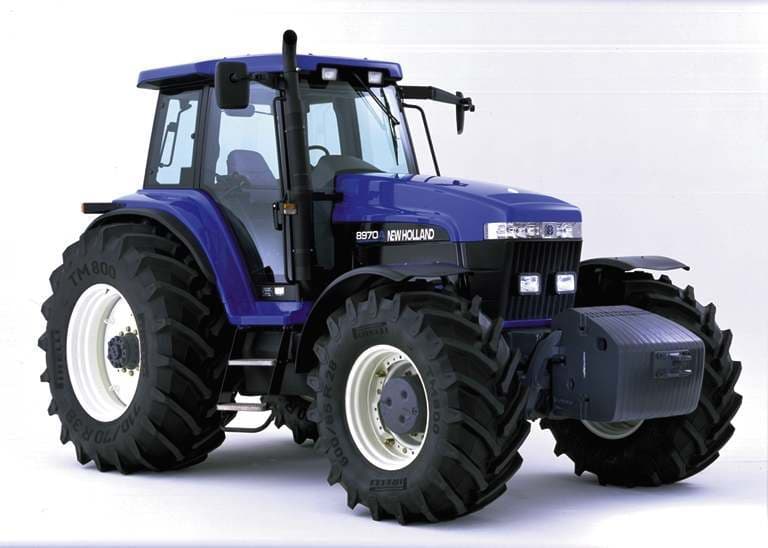

Photo Gallery
Specifications
Engine Power Output Comparison of New Holland 8970A vs. Other Row Crop Tractors
Loading Chart...
Operating Weight Comparison of New Holland 8970A vs. Other Row Crop Tractors
Loading Chart...
Compare to Other Tractors
How the New Holland 8970A compares to other Row Crop tractors
| Spec | This model | Row Crop median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 233 hp | 140 hp | +66% | 84th |
| Engine Displacement | 456 ci | 401 ci | +14% | 79th |
| Cylinders | 6 | 6 | at median | 64th |
| Forward Gears | 16 | 16 | at median | 45th |
| Operating Weight | 19,590 lb | 12,400 lb | +58% | 83rd |
| Length | 212 in | 180 in | +18% | 85th |
| Height | 124 in | 114 in | +9% | 82nd |
Medians and percentiles are computed from the row crop tractors in our database with a recorded value for each spec (sample sizes 1,094–1,356 models).
Compare to other tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland T8.275 | 235 hp | 23,862 lb | — | Compare → |
| New Holland TG230 | 230 hp | 20,340 lb | 2002–2006 | Compare → |
| New Holland 8970 | 240 hp | 19,460 lb | 1993–2000 | Compare → |
| New Holland T8020 | 244.1 hp | 21,270 lb | — | Compare → |
| New Holland T8010 | 221 hp | 21,150 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO S.A. MT655C SCR | 234 hp | 25,795 lb | — | Compare → |
| AGCO DT200 | 235 hp | 19,700 lb | 2002–2004 | Compare → |
| AGCO DT200A | 235 hp | 19,136 lb | 2005–2008 | Compare → |
| AGCO S.A. 8460 | 235 hp | 19,910 lb | 2004–2007 | Compare → |
| Belarus 7010 | 235 hp | — | — | Compare → |
Frequently Asked Questions
What years was the New Holland 8970A manufactured?
Production of the New Holland 8970A ran from 2001 through 2003.
How powerful is the New Holland 8970A?
The New Holland 8970A has an engine power output of 233 hp. It is powered by a 6-cylinder engine displacing 456 ci.
What is the working weight of the New Holland 8970A?
The operating weight of the New Holland 8970A is approximately 19,590 lb.
What type of transmission does the New Holland 8970A have?
The New Holland 8970A uses a Full power shift transmission offering 16 forward gears.
What type of hydraulic system does the New Holland 8970A use?
Hydraulics on the New Holland 8970A are Closed center load-sensing.
What hitch category is the New Holland 8970A?
The New Holland 8970A uses a Category Category 3 hitch.
What routine service does the New Holland 8970A need?
Regular maintenance for the New Holland 8970A includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
