New Holland 9280
The New Holland 9280 is a powerful tractor made from 1994 to 1995. It has a strong Cummins engine with 6 cylinders and 250 horsepower. This engine is turbocharged and diesel-powered, which means it can handle tough jobs on the farm. The tractor has a partially synchronized transmission with 12 forward gears and 4 reverse gears, giving farmers lots of options for different tasks. This tractor is big and sturdy, measuring 265.7 inches long and 144.5 inches tall. It weighs 23,190 pounds, so it can handle heavy work. The New Holland 9280 has large 38-inch tires on both the front and back, which helps it move well in fields. It also has good ground clearance at 17.7 inches, making it easier to drive over rough terrain. The hydraulic system is a closed center load sensing type, which helps the tractor work efficiently with different tools and attachments.
ManufacturerNew HollandPower250 hpEngine6-cylTransPartially Synchronized
Quick specs
- Category
- Agricultural
- Engine Power Output
- 250hp
- Operating Weight
- 23,190 lb
- Transmission
- Partially Synchronized
At a glance
How the 9280 compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
250 hp · 88th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 9280 ranks at the 88th percentile for engine power among recorded agricultural tractors.
Overview
About the New Holland 9280
The New Holland 9280 is a powerful tractor made from 1994 to 1995. It has a strong Cummins engine with 6 cylinders and 250 horsepower. This engine is turbocharged and diesel-powered, which means it can handle tough jobs on the farm. The tractor has a partially synchronized transmission with 12 forward gears and 4 reverse gears, giving farmers lots of options for different tasks. This tractor is big and sturdy, measuring 265.7 inches long and 144.5 inches tall. It weighs 23,190 pounds, so it can handle heavy work. The New Holland 9280 has large 38-inch tires on both the front and back, which helps it move well in fields. It also has good ground clearance at 17.7 inches, making it easier to drive over rough terrain. The hydraulic system is a closed center load sensing type, which helps the tractor work efficiently with different tools and attachments.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | 9280 |
| Category | Agricultural tractor |
| Years built | 1994–1995 |
| Operating weight | 23,190lb |
Engine
| Make | Cummins |
|---|---|
| Model | LT10-A |
| Power | 250hp |
| Cylinders | 6 |
| Displacement | 611ci |
| Bore | 4.92in |
| Stroke | 5.35in |
Transmission
| Type | Partially Synchronized |
|---|---|
| Forward gears | 12 |
| Reverse gears | 4 |
Hydraulics
| Type | Closed Center Load Sensing |
|---|
Dimensions
| Length | 265.7in |
|---|---|
| Height | 144.5in |
| Operating weight | 23,190lb |
Capacities
| Cooling system | 13.75gal |
|---|
Head to head
9280 vs. Agricultural median
How the New Holland 9280 compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 250 hp | 110 hp | +127% | 88th |
| Engine Displacement | 611 ci | 336 ci | +82% | 93rd |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 12 | 16 | -25% | 33rd |
| Operating Weight | 23,190 lb | 10,914 lb | +112% | 90th |
| Length | 266 in | 173 in | +54% | 97th |
| Height | 145 in | 111 in | +31% | 97th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 795–1,130 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland T80 | 270 hp | 34,568.5 lb | 2007–2010 | Compare → |
| New Holland 9482 | 283.9 hp | 30,165 lb | 1996–2000 | Compare → |
| New Holland TM190 | 206.7 hp | 17,470 lb | 2002–2007 | Compare → |
| New Holland 9480 | 300 hp | 24,165 lb | 1994–1995 | Compare → |
| New Holland T7550 | 194 hp | 14,930 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Big Bud HN250 | 250 hp | 34,000 lb | — | Compare → |
| AGCO DT205B | 242.3 hp | 25,840 lb | 2009–2010 | Compare → |
| AGCO DT220A | 260 hp | 19,951 lb | 2005–2008 | Compare → |
| CaseIH 9330 | 240 hp | 23,650 lb | 1996–1999 | Compare → |
| CaseIH 4694 | 261 hp | 22,310 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

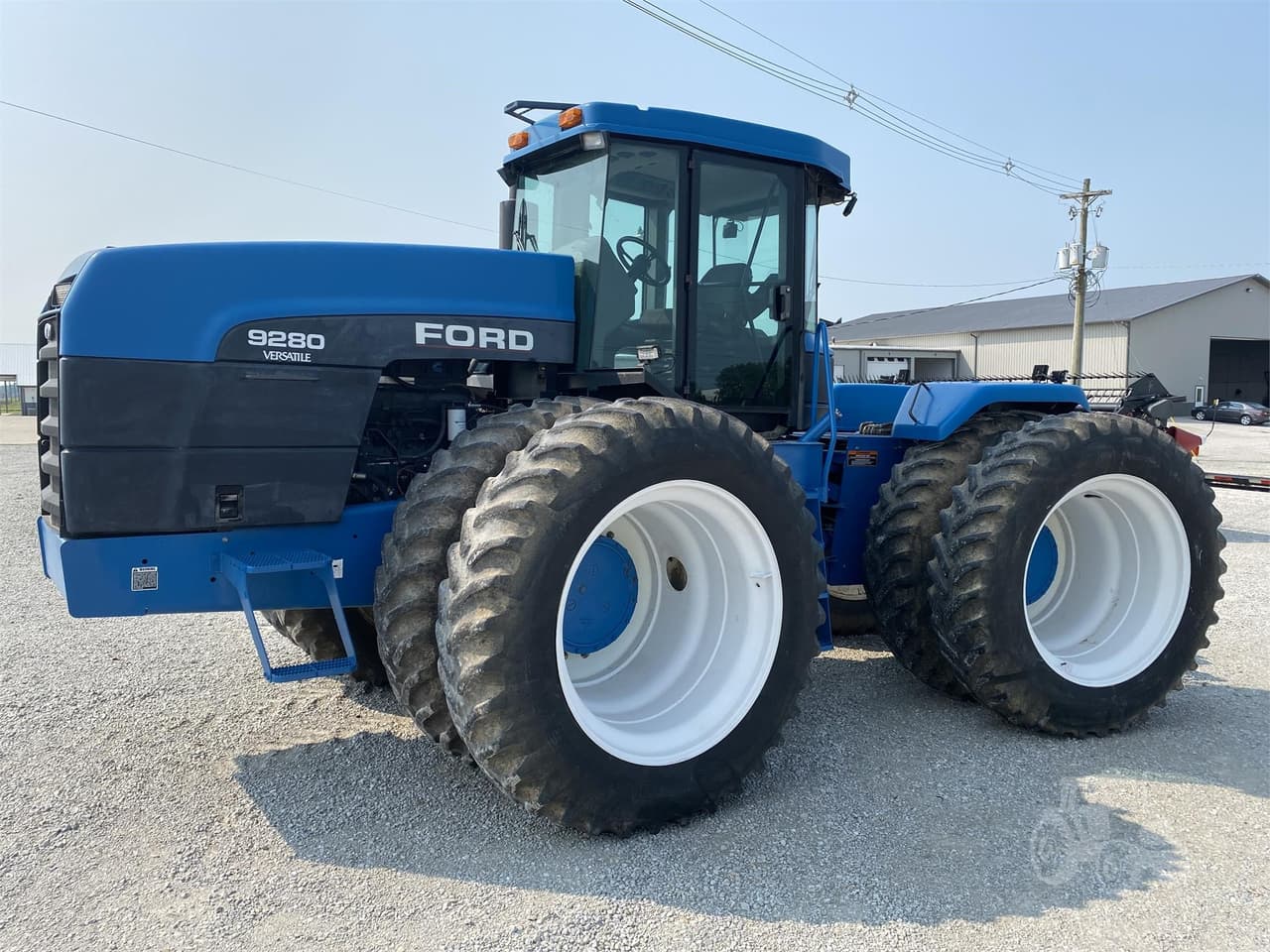

New Holland 9280 photos
FAQ
Common questions
When was the New Holland 9280 made?
The New Holland 9280 was manufactured from 1994 to 1995.
What type of hydraulic system does the New Holland 9280 use?
Hydraulics on the New Holland 9280 are Closed Center Load Sensing.
What is the engine power output of the New Holland 9280?
Rated engine output for the New Holland 9280 is 250 hp, delivered by a 6-cylinder engine. The engine displaces 611 ci.
What is the operating weight of the New Holland 9280?
In working trim, the New Holland 9280 comes in at roughly 23,190 lb.
Which transmission does the New Holland 9280 use?
The New Holland 9280 is equipped with a Partially Synchronized transmission with 12 forward gears.
How do I maintain a New Holland 9280?
Routine service for the New Holland 9280 covers engine oil and filter changes, hydraulic and coolant level checks, air filter cleaning, and scheduled inspections. Refer to the manufacturer's maintenance schedule for exact intervals.
