Agricultural tractorsSpec sheet
New Holland TM190
The CNH U.K. Ltd. TM190 is a powerful row crop tractor made in England. It has a strong 4WD system and a diesel engine with 6 cylinders. The engine is very big for its class, with 456 cubic inches of space inside. It can make up to 206.7 horsepower, which is a lot of power for farm work. The tractor is pretty heavy, weighing 17,470 pounds, which helps it pull big loads. This tractor has some cool features that make it easy to use. It has a special steering system that helps the driver turn easily. The transmission has 18 gears going forward and 6 gears going backward, so the driver can pick the right speed for any job. It also has a good hydraulic system that can lift heavy tools. The TM190 is big too, measuring 189.4 inches long and 113.4 inches tall. It's a tough tractor that can handle lots of different farm tasks.
ManufacturerNew HollandPower206.7 hp(154.1 kW)Class150–300 HP tractors →Engine6-cylinderTransmissionSelective gear fixed ratio with full range operator-controlled powershift
Key specifications
- Category
- Agricultural
- Engine power
- 207hp
- Operating weight
- 17,470 lb
- Transmission
- Selective gear fixed ratio with full range operator-controlled powershift
Category comparison
TM190 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
206.7 hp · 82nd
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The TM190 ranks at the 82nd percentile for engine power among recorded agricultural tractors.
Overview
About the New Holland TM190
The CNH U.K. Ltd. TM190 is a powerful row crop tractor made in England. It has a strong 4WD system and a diesel engine with 6 cylinders. The engine is very big for its class, with 456 cubic inches of space inside. It can make up to 206.7 horsepower, which is a lot of power for farm work. The tractor is pretty heavy, weighing 17,470 pounds, which helps it pull big loads. This tractor has some cool features that make it easy to use. It has a special steering system that helps the driver turn easily. The transmission has 18 gears going forward and 6 gears going backward, so the driver can pick the right speed for any job. It also has a good hydraulic system that can lift heavy tools. The TM190 is big too, measuring 189.4 inches long and 113.4 inches tall. It's a tough tractor that can handle lots of different farm tasks.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | TM190 |
| Category | Agricultural tractor |
| Type | 4WD |
| Years built | 2002–2007 |
| Operating weight | 17,470lb(7,924 kg) |
Engine
| Make | CNH Diesel |
|---|---|
| Power | 206.7hp(154.1 kW) |
| Cylinders | 6 |
| Displacement | 456ci(7.47 L) |
| Bore | 4.4in(111.8 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Type | Selective gear fixed ratio with full range operator-controlled powershift |
|---|---|
| Forward gears | 18 |
| Reverse gears | 6 |
Chassis & drive
| Drive | 4WD |
|---|---|
| Steering | Hydrostatic power |
Hydraulics
| Type | Closed center load sensing (CCLS) |
|---|
Dimensions
| Length | 189.4in(4,811 mm) |
|---|---|
| Height | 113.4in(2,880 mm) |
| Operating weight | 17,470lb(7,924 kg) |
Capacities
| Cooling system | 6.9gal(26.12 L) |
|---|
Closest alternatives
TM190 compared with the nearest models by horsepower
Among agricultural tractors, the Massey Ferguson 7S.210 and the Massey Ferguson 7497 are closest to the New Holland TM190 in rated horsepower. The Massey Ferguson 7S.210 matches it on rated power and weighs 3,580 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The Massey Ferguson 7497 is rated 1.1 hp higher and weighs 390 lb more. It entered production in 2009, 7 years after the TM190.
| Spec | New Holland TM190 | Massey Ferguson 7S.210 | Massey Ferguson 7497 |
|---|---|---|---|
| Engine power | 206.7 hp154.1 kW | 206.5 hp154 kW | 207.8 hp155 kW |
| Operating weight | 17,470 lb7,924 kg | 13,889 lb6,300 kg | 17,860 lb8,101 kg |
| Weight per hp | 85 lb/hp51 kg/kW | 67 lb/hp41 kg/kW | 86 lb/hp52 kg/kW |
| Displacement | 456 ci7.47 L | 402.6 ci6.6 L | 449 ci7.36 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | Selective gear fixed ratio with full range operator-controlled powershift | Continuously-variable transmission (CVT) | Continuously variable transmission (CVT) |
| Drive | 4WD | - | 4WD |
| Years built | 2002-2007 | - | 2009-2012 |
Calculators
Calculators for the TM190
PTO power
About 172 to 186 PTO hp
Estimated from the 206.7 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 206.7 hp tractor can run
Maximum size is about a 24.5 ft rotary cutter or a 21 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
98 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
206.7 hp is 154.1 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
TM190 vs. Agricultural median
New Holland TM190 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 207 hp | 110 hp | +88% | 82nd |
| Engine Displacement | 456 ci | 336 ci | +36% | 82nd |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 18 | 16 | +13% | 68th |
| Operating Weight | 17,470 lb | 10,914 lb | +60% | 77th |
| Length | 189 in | 173 in | +10% | 70th |
| Height | 113 in | 111 in | +3% | 59th |
| 3-Point Hitch Capacity | 17,085 lb | 12,126 lb | +41% | 76th |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 93–1,130 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery

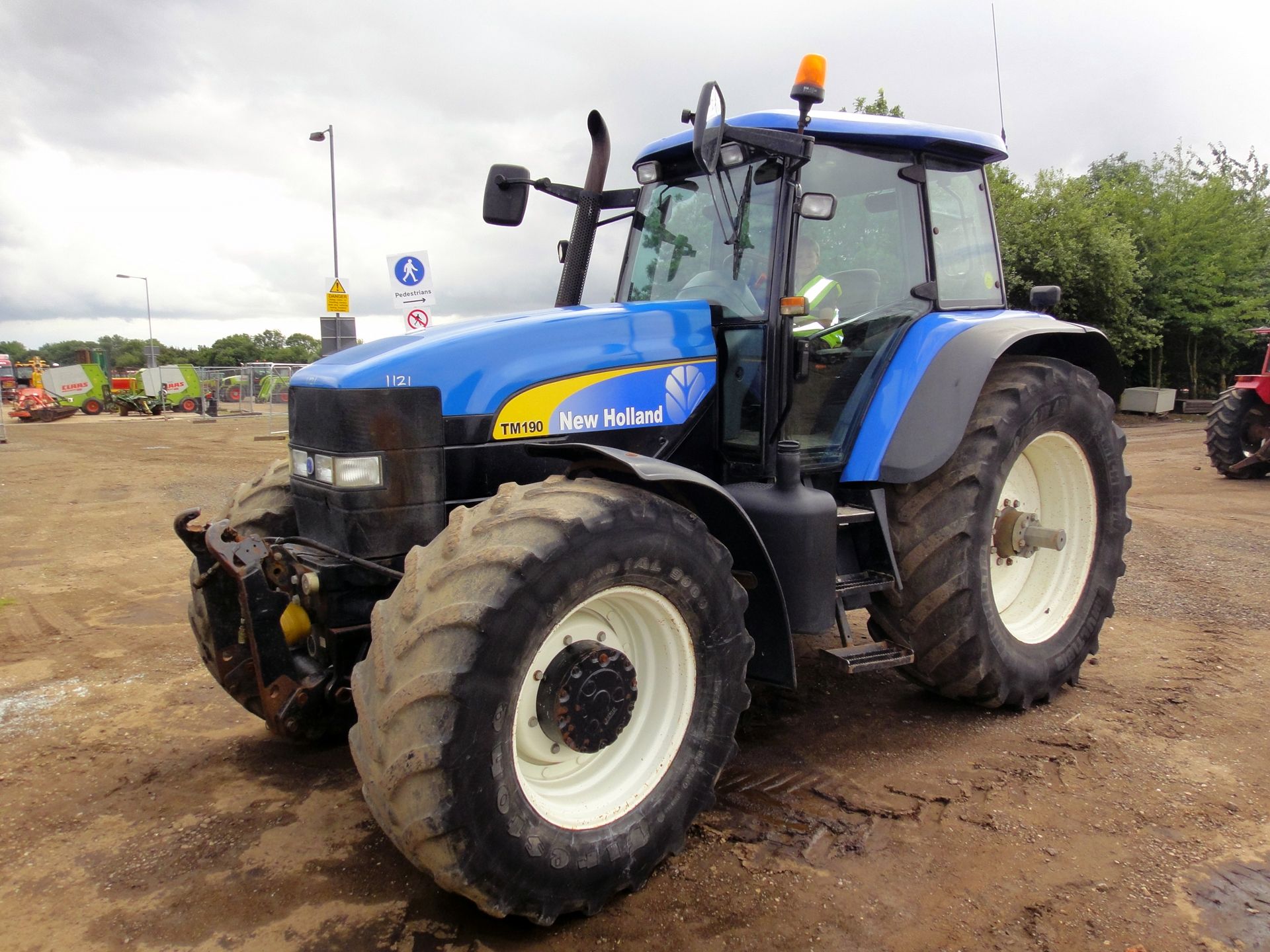

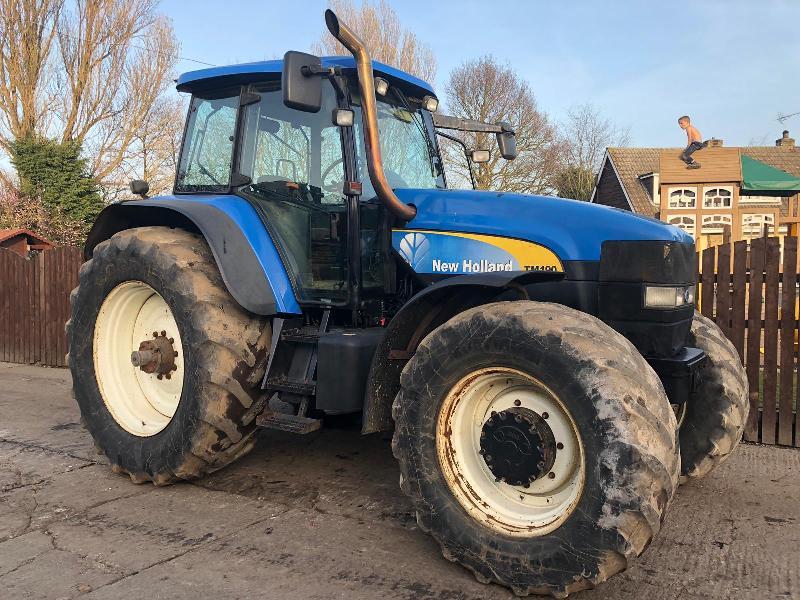

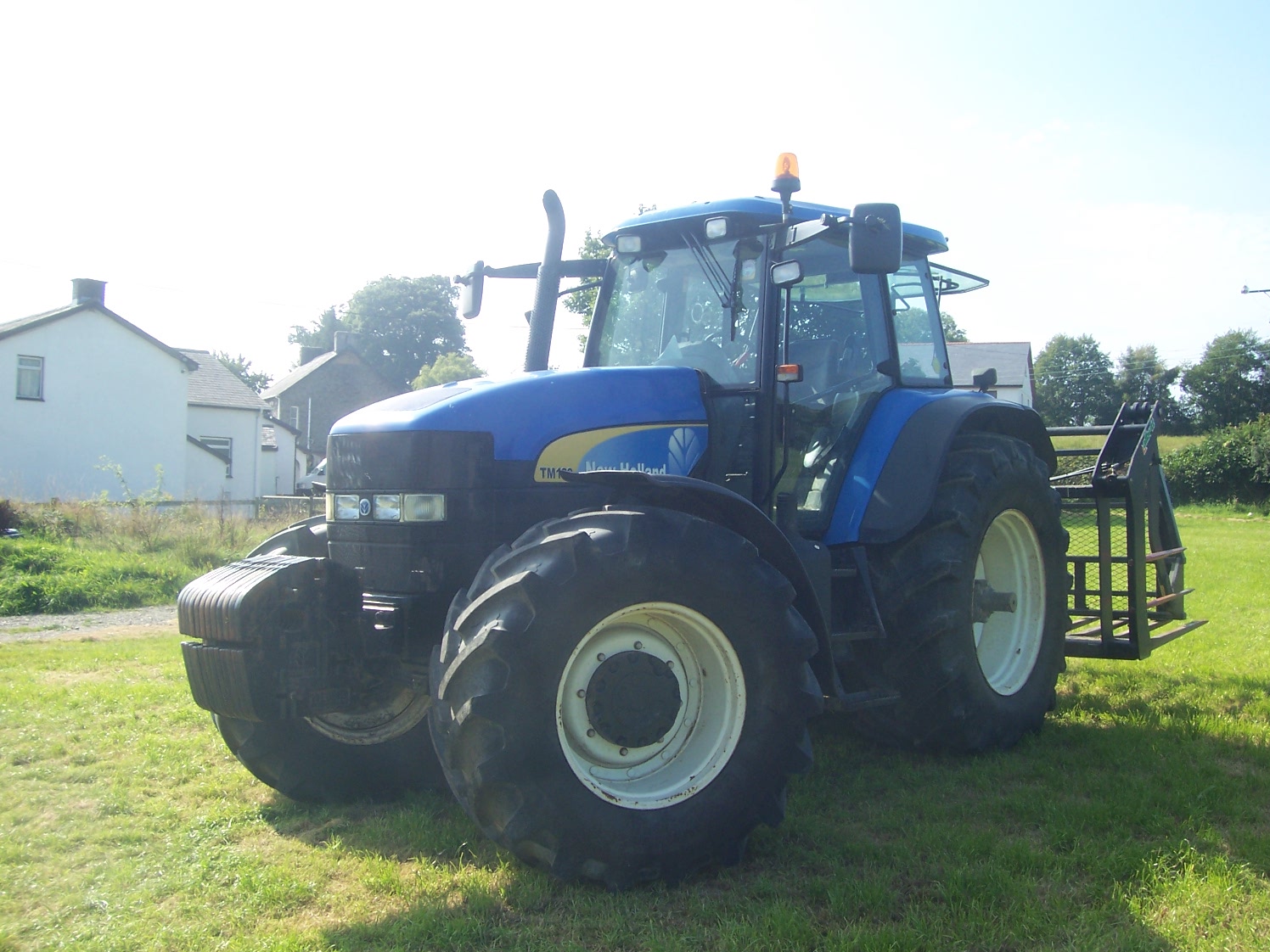

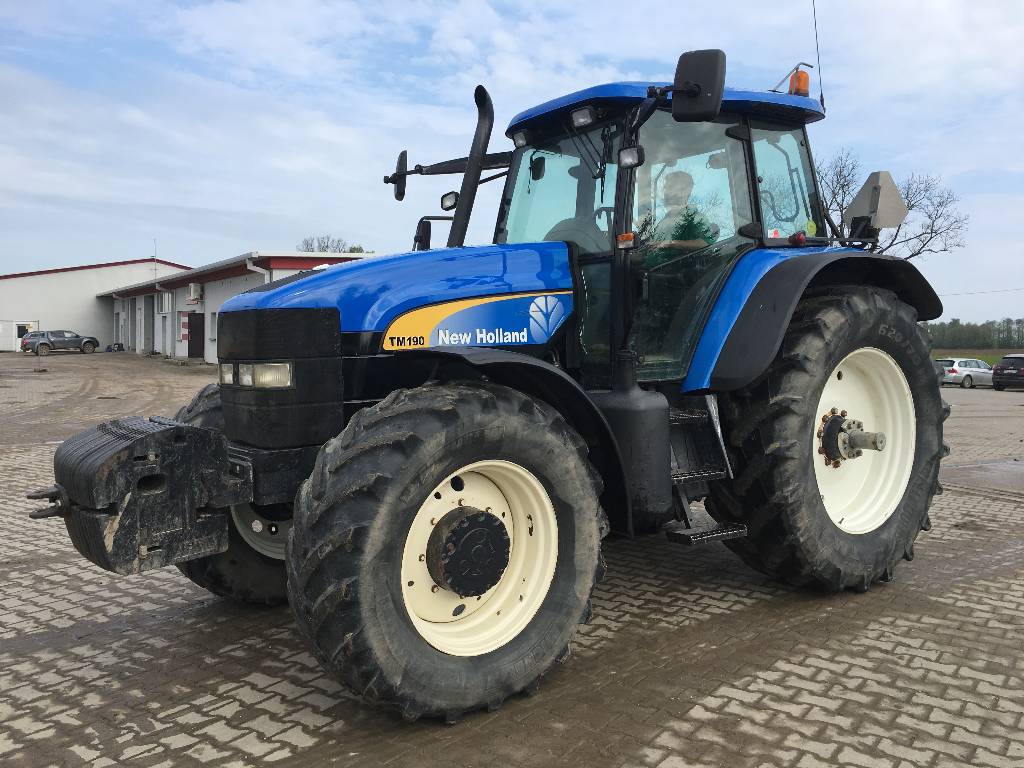

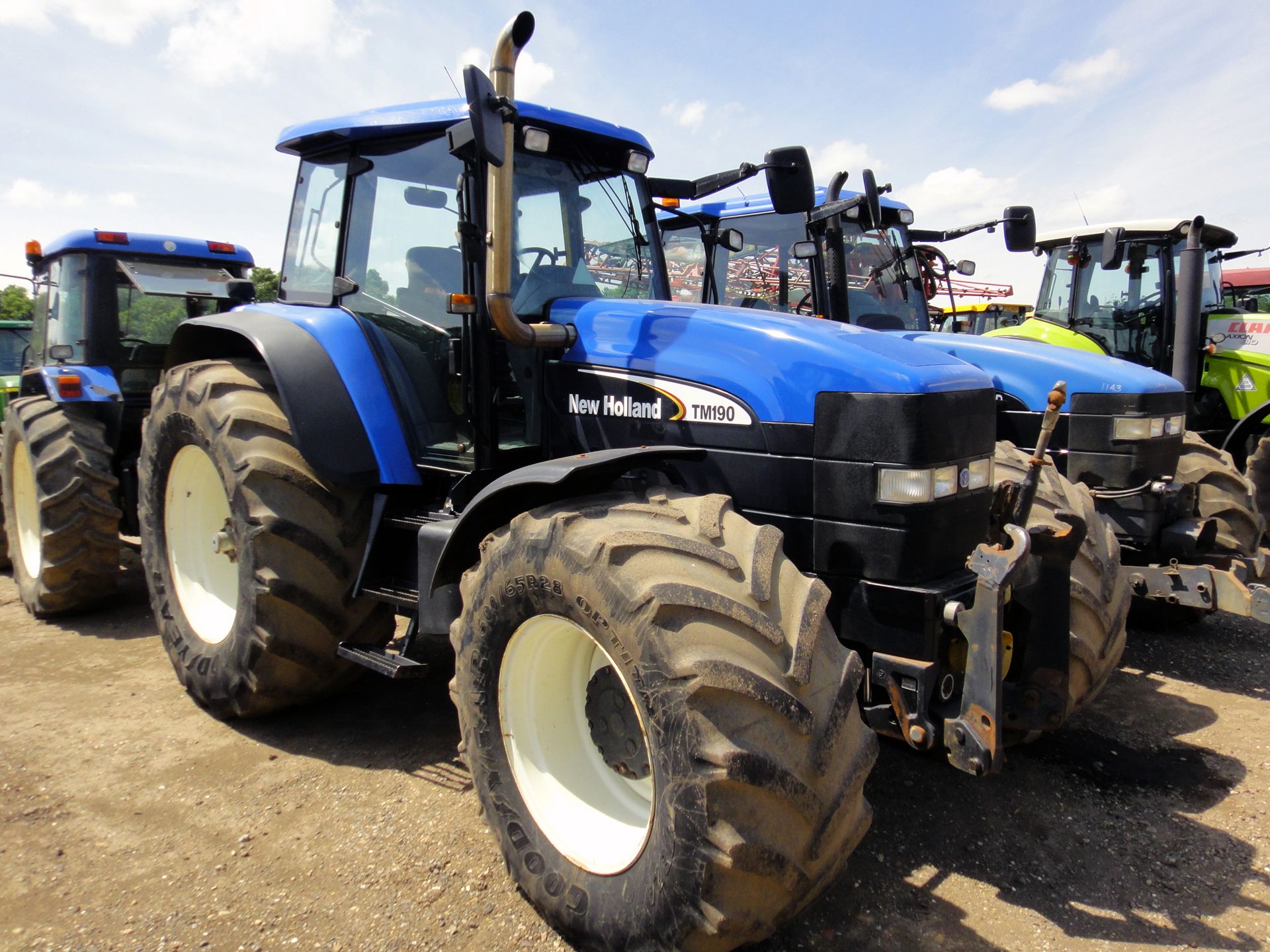

New Holland TM190 photos
FAQ
Frequently asked questions
What years was the New Holland TM190 manufactured?
Production of the New Holland TM190 ran from 2002 through 2007.
What is the working weight of the New Holland TM190?
The operating weight of the New Holland TM190 is approximately 17,470 lb.
What type of transmission does the New Holland TM190 have?
The New Holland TM190 uses a Selective gear fixed ratio with full range operator-controlled powershift transmission offering 18 forward gears.
What type of hydraulic system does the New Holland TM190 use?
Hydraulics on the New Holland TM190 are Closed center load sensing (CCLS).
How powerful is the New Holland TM190?
The New Holland TM190 has an engine power output of 206.7 hp. It is powered by a 6-cylinder engine displacing 456 ci.
What routine service does the New Holland TM190 need?
Regular maintenance for the New Holland TM190 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
