Same brandUtility tractorsSpec sheet
New Holland Boomer 24
The New Holland Boomer 24 is a small but mighty utility tractor perfect for light farm work and landscaping. It's a sub-compact model with a 4-wheel drive system, making it great for working in tight spaces. The tractor has a Mitsubishi engine that runs on diesel fuel and produces 24 horsepower, which is on the lower end compared to other tractors but suitable for its size. This Boomer 24 has some handy features that make it easy to use. It has a hydrostatic transmission, which means you can change speeds smoothly without shifting gears. The tractor also has a power steering system that makes it easy to turn and control. At the back, there's a strong hitch that can lift up to 1,433 pounds, which is about average for tractors of this size. The tractor is small, measuring just over 8 feet long and less than 4 feet wide, making it easy to store and maneuver. It's also pretty light, weighing only 1,832 pounds, which helps it be gentle on the ground.
ManufacturerNew HollandPower24 hp(17.9 kW)ClassUnder 25 HP tractors →Engine3-cylinderTransmissionHydrostatic
Key specifications
- Category
- Utility
- Engine power
- 24hp
- Operating weight
- 1,832 lb
- Transmission
- Hydrostatic
Category comparison
Boomer 24 compared with its category
vs. Utility medianDistribution
Engine Power (hp)
All recorded Utility tractors
24 hp · 14th
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The Boomer 24 ranks at the 14th percentile for engine power among recorded utility tractors.
Overview
About the New Holland Boomer 24
The New Holland Boomer 24 is a small but mighty utility tractor perfect for light farm work and landscaping. It's a sub-compact model with a 4-wheel drive system, making it great for working in tight spaces. The tractor has a Mitsubishi engine that runs on diesel fuel and produces 24 horsepower, which is on the lower end compared to other tractors but suitable for its size. This Boomer 24 has some handy features that make it easy to use. It has a hydrostatic transmission, which means you can change speeds smoothly without shifting gears. The tractor also has a power steering system that makes it easy to turn and control. At the back, there's a strong hitch that can lift up to 1,433 pounds, which is about average for tractors of this size. The tractor is small, measuring just over 8 feet long and less than 4 feet wide, making it easy to store and maneuver. It's also pretty light, weighing only 1,832 pounds, which helps it be gentle on the ground.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | Boomer 24 |
| Category | Utility tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 1,832lb(831 kg) |
Engine
| Make | Mitsubishi |
|---|---|
| Model | S3L |
| Power | 24hp(17.9 kW) |
| Cylinders | 3 |
| Displacement | 80.4ci(1.32 L) |
| Bore | 3.07in(77.98 mm) |
| Stroke | 3.62in(91.95 mm) |
Transmission
| Type | Hydrostatic |
|---|
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | MFWD 4WD |
| Steering | Hydrostatic Power |
| Brakes | Mechanical Wet Disc |
| Cab | Two-pose Foldable ROPS |
Hydraulics
| Type | Open Center |
|---|
Power take-off
| Rear PTO | Independent with Electro-hydraulic Clutch |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 103.5in(2,629 mm) |
|---|---|
| Width | 43.7in(1,110 mm) |
| Height | 85.6in(2,174 mm) |
| Operating weight | 1,832lb(831 kg) |
Closest alternatives
Boomer 24 compared with the nearest models by horsepower
By engine horsepower, the nearest utility models to the Boomer 24 are the New Holland TZ24D and the New Holland TC24D. The New Holland TZ24D matches it on rated power and weighs 370 lb less, so it is lighter for its power, which favors PTO and transport work over heavy draft. The New Holland TC24D matches it on rated power and weighs 110 lb less. Of the 3 models, the Boomer 24 has the highest weight per horsepower at 76 lb per hp.
| Spec | New Holland Boomer 24 | New Holland TZ24D | New Holland TC24D |
|---|---|---|---|
| Engine power | 24 hp17.9 kW | 24 hp17.9 kW | 24 hp17.9 kW |
| Operating weight | 1,832 lb831 kg | 1,460 lb662 kg | 1,723 lb782 kg |
| Weight per hp | 76 lb/hp46 kg/kW | 61 lb/hp37 kg/kW | 72 lb/hp44 kg/kW |
| Displacement | 80.4 ci1.32 L | 61.3 ci1 L | 69 ci1.13 L |
| Cylinders | 3 | 3 | 3 |
| Transmission | Hydrostatic | Hydrostatic | Hydrostatic and Gear |
| Drive | MFWD 4WD | 4WD | MFWD 4WD |
| Years built | - | 2008-2011 | 1999-2003 |
Calculators
Calculators for the Boomer 24
PTO power
About 20 to 22 PTO hp
Estimated from the 24 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 24 hp tractor can run
The calculator sizes mowers, tillers, discs, plows and balers for this tractor.
Ballast
89 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
24 hp is 17.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Category medians
Boomer 24 vs. Utility median
New Holland Boomer 24 compared with other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 24 hp | 55 hp | -56% | 14th |
| Engine Displacement | 80.4 ci | 183 ci | -56% | 12th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Operating Weight | 1,832 lb | 5,303 lb | -65% | 10th |
| Length | 104 in | 137 in | -24% | 11th |
| Width | 43.7 in | 66 in | -34% | 8th |
| Height | 85.6 in | 94.1 in | -9% | 34th |
| 3-Point Hitch Capacity | 1,433 lb | 3,197 lb | -55% | 14th |
Medians and percentiles are calculated from the utility tractors in the database that have a recorded value for each specification (sample size 1,083–5,720 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery

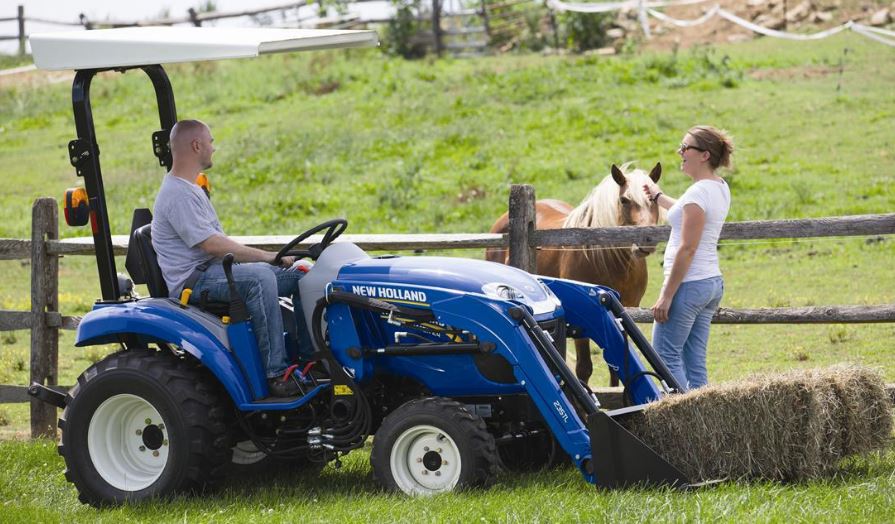

New Holland Boomer 24 photos
FAQ
Frequently asked questions
How powerful is the New Holland Boomer 24?
The New Holland Boomer 24 has an engine power output of 24 hp. It is powered by a 3-cylinder engine displacing 80.4 ci.
What hitch category is the New Holland Boomer 24?
The New Holland Boomer 24 uses a Category I hitch with a lift capacity of 1,433 lb.
What is the working weight of the New Holland Boomer 24?
The operating weight of the New Holland Boomer 24 is approximately 1,832 lb.
What type of transmission does the New Holland Boomer 24 have?
The New Holland Boomer 24 uses a Hydrostatic transmission.
What type of hydraulic system does the New Holland Boomer 24 use?
Hydraulics on the New Holland Boomer 24 are Open Center.
What routine service does the New Holland Boomer 24 need?
Regular maintenance for the New Holland Boomer 24 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
