Sub-Compact tractorsSpec sheet
New Holland T3020
The New Holland T3020 is a compact but powerful 4WD tractor. It's built with a 4x4 MFWD chassis, making it great for various farm tasks. The tractor has a Synchro Shuttle transmission with 16 forward and 16 reverse gears, giving the driver lots of options for different jobs. Under the hood, the T3020 has a Yanmar engine with 4 cylinders. This liquid-cooled engine has a displacement of 121.7 ci and can produce 42.8 hp at 2800 rpm. The tractor is 129.9 inches long, 54.3 inches wide, and 76 inches tall. It weighs 3219 lb, which helps it stay stable during work. The T3020 comes with a Rear Type 1 hitch and a ROPS for driver safety. New Holland is known for making reliable farm equipment, and this tractor is a good example of their quality work.
ManufacturerNew HollandPower42.8 hp(31.9 kW)Class40–60 HP tractors →Engine4-cylinderTransmissionSynchro Shuttle
Key specifications
- Category
- Sub-Compact
- Engine power
- 43hp
- Operating weight
- 3,219 lb
- Transmission
- Synchro Shuttle
Category comparison
T3020 compared with its category
vs. Sub-Compact medianDistribution
Engine Power (hp)
All recorded Sub-Compact tractors
42.8 hp · 80th
This model
4
Median 26.85 hp
49
This modelSub-Compact tractorsMediann = 816
The T3020 ranks at the 80th percentile for engine power among recorded sub-compact tractors.
Overview
About the New Holland T3020
The New Holland T3020 is a compact but powerful 4WD tractor. It's built with a 4x4 MFWD chassis, making it great for various farm tasks. The tractor has a Synchro Shuttle transmission with 16 forward and 16 reverse gears, giving the driver lots of options for different jobs. Under the hood, the T3020 has a Yanmar engine with 4 cylinders. This liquid-cooled engine has a displacement of 121.7 ci and can produce 42.8 hp at 2800 rpm. The tractor is 129.9 inches long, 54.3 inches wide, and 76 inches tall. It weighs 3219 lb, which helps it stay stable during work. The T3020 comes with a Rear Type 1 hitch and a ROPS for driver safety. New Holland is known for making reliable farm equipment, and this tractor is a good example of their quality work.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | T3020 |
| Category | Sub-Compact tractor |
| Type | 4x4 MFWD 4WD |
| Operating weight | 3,219lb(1,460 kg) |
Engine
| Make | Yanmar |
|---|---|
| Power | 42.8hp(31.92 kW) |
| Cylinders | 4 |
| Displacement | 121.7ci(1.99 L) |
Transmission
| Type | Synchro Shuttle |
|---|---|
| Forward gears | 16 |
| Reverse gears | 16 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Cab | ROPS (Roll-Over Protective Structure) |
Dimensions
| Length | 129.9in(3,299 mm) |
|---|---|
| Width | 54.3in(1,379 mm) |
| Height | 76in(1,930 mm) |
| Operating weight | 3,219lb(1,460 kg) |
Closest alternatives
T3020 compared with the nearest models by horsepower
The closest sub-compact models to the New Holland T3020 by rated horsepower are the LS LT450D and the Massey Ferguson 140. The LS LT450D matches it on rated power and weighs 600 lb more, so it carries more weight per horsepower, which helps traction in draft work. The Massey Ferguson 140 matches it on rated power at almost the same operating weight.
| Spec | New Holland T3020 | LS LT450D | Massey Ferguson 140 |
|---|---|---|---|
| Engine power | 42.8 hp31.9 kW | 43 hp32.1 kW | 43 hp32.1 kW |
| Operating weight | 3,219 lb1,460 kg | 3,814 lb1,730 kg | 3,197 lb1,450 kg |
| Weight per hp | 75 lb/hp46 kg/kW | 89 lb/hp54 kg/kW | 74 lb/hp45 kg/kW |
| Displacement | 121.7 ci1.99 L | 141 ci2.31 L | 152 ci2.49 L |
| Cylinders | 4 | 4 | 3 |
| Drive | 4WD | - | 2WD |
Calculators
Calculators for the T3020
PTO power
About 36 to 39 PTO hp
Estimated from the 42.8 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 42.8 hp tractor can run
Maximum size is about a 5 ft rotary cutter or a 4.5 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
87 lb per PTO hp as listed
Heavy draft work calls for 120 to 135 lb/hp. The calculator gives the ballast to add.
Units
42.8 hp is 31.9 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the New Holland T3020
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the YanmarAmazon
Fits the Yanmar 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the YanmarAmazon
Fits the Yanmar 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the YanmarAmazon
Fits the Yanmar 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the YanmarAmazon
Fits the Yanmar 4-cylinder engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- New Holland T3020 service and repair manualseManualOnline
Digital manuals. Check the serial number range on the listing.
- New Holland T3020 operator's manualAmazon
Printed and reprint manuals. Check the serial number range on the listing.
- New Holland T3020 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
T3020 vs. Sub-Compact median
New Holland T3020 compared with other Sub-Compact tractors
| Spec | This model | Sub-Compact median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 42.8 hp | 26.9 hp | +59% | 80th |
| Engine Displacement | 122 ci | 91.4 ci | +33% | 68th |
| Cylinders | 4 | 3 | +33% | 90th |
| Forward Gears | 16 | 9 | +78% | 89th |
| Operating Weight | 3,219 lb | 2,700 lb | +19% | 60th |
| Length | 130 in | 113 in | +15% | 78th |
| Width | 54.3 in | 50.7 in | +7% | 58th |
| Height | 76 in | 78.4 in | -3% | 44th |
Medians and percentiles are calculated from the sub-compact tractors in the database that have a recorded value for each specification (sample size 584–816 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery

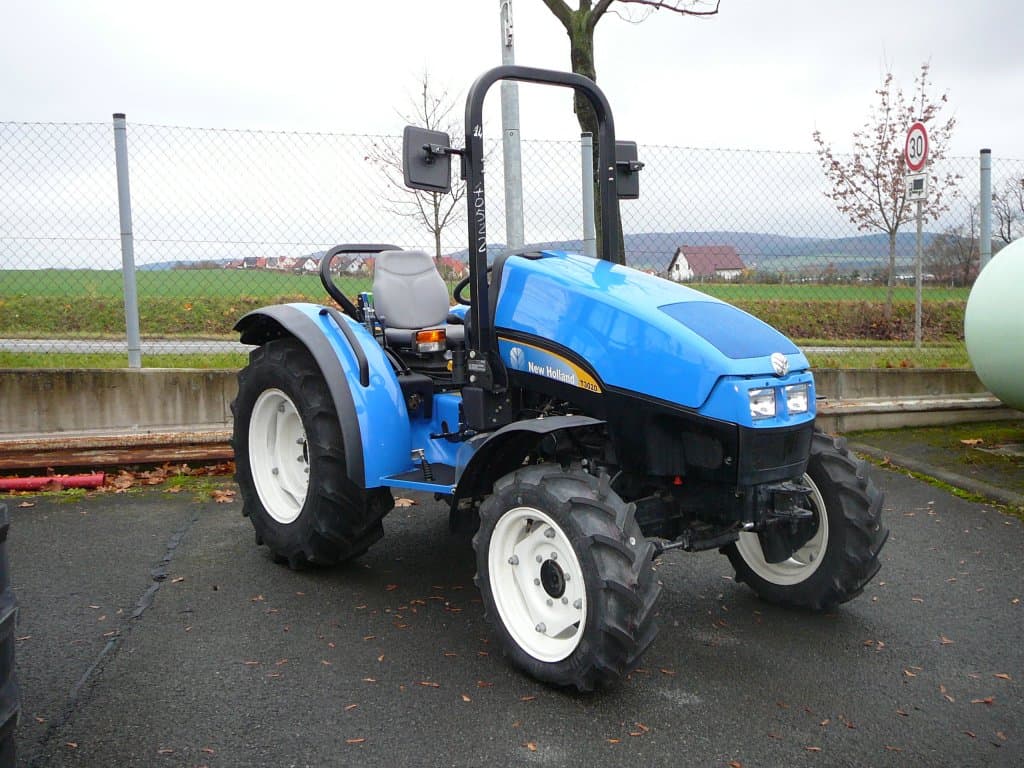

New Holland T3020 photos
FAQ
Frequently asked questions
How powerful is the New Holland T3020?
The New Holland T3020 has an engine power output of 42.8 hp. It is powered by a 4-cylinder engine displacing 121.7 ci.
What type of transmission does the New Holland T3020 have?
The New Holland T3020 uses a Synchro Shuttle transmission offering 16 forward gears.
What is the working weight of the New Holland T3020?
The operating weight of the New Holland T3020 is approximately 3,219 lb.
What routine service does the New Holland T3020 need?
Regular maintenance for the New Holland T3020 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
