New Holland T9020
The New Holland T9020 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated chassis and four-wheel drive, making it great for working in rough fields. The tractor is big, measuring 276 inches long and 142 inches tall, with a very heavy operating weight of 32,120 pounds. Under the hood, the T9020 has a strong 6-cylinder diesel engine made by CDC. This engine is turbocharged and liquid-cooled, with 24 valves. It puts out an impressive 335 horsepower, which is very high compared to other tractors. The engine has a very large displacement of 540 cubic inches, also ranking very high among tractors. It runs at 2000 rpm, which is lower than average, helping with fuel efficiency. The tractor has 16 forward gears and 2 reverse gears, giving the driver lots of options for different tasks. It also has a rear hitch for attaching implements and a closed center hydraulic system for powering equipment.
ManufacturerNew HollandPower335 hpEngine6-cyl
Quick specs
- Category
- Utility
- Engine Power Output
- 335hp
- Operating Weight
- 32,120 lb
At a glance
How the T9020 compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
335 hp · 97th
This model
9
Median 55 hp
177
335
This modelUtility tractorsMediann = 5,383
The T9020 ranks at the 97th percentile for engine power among recorded utility tractors.
Overview
About the New Holland T9020
The New Holland T9020 is a powerful utility tractor built for tough jobs. It has a 4x4 articulated chassis and four-wheel drive, making it great for working in rough fields. The tractor is big, measuring 276 inches long and 142 inches tall, with a very heavy operating weight of 32,120 pounds. Under the hood, the T9020 has a strong 6-cylinder diesel engine made by CDC. This engine is turbocharged and liquid-cooled, with 24 valves. It puts out an impressive 335 horsepower, which is very high compared to other tractors. The engine has a very large displacement of 540 cubic inches, also ranking very high among tractors. It runs at 2000 rpm, which is lower than average, helping with fuel efficiency. The tractor has 16 forward gears and 2 reverse gears, giving the driver lots of options for different tasks. It also has a rear hitch for attaching implements and a closed center hydraulic system for powering equipment.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | T9020 |
| Category | Utility tractor |
| Type | 4x4 articulated 4WD |
| Operating weight | 32,120lb |
Engine
| Make | CDC |
|---|---|
| Power | 335hp |
| Cylinders | 6 |
| Displacement | 540ci |
| Bore | 4.49in |
| Stroke | 5.69in |
Transmission
| Forward gears | 16 |
|---|---|
| Reverse gears | 2 |
Chassis & drive
| Chassis | 4x4 articulated 4WD |
|---|---|
| Drive | 4WD |
| Steering | Hydrostatic power |
Hydraulics
| Type | Closed center load sensing (CCLS) |
|---|
Dimensions
| Length | 276in |
|---|---|
| Height | 142in |
| Operating weight | 32,120lb |
Capacities
| Cooling system | 12.5gal |
|---|
Head to head
T9020 vs. Utility median
How the New Holland T9020 compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 335 hp | 55 hp | +509% | 97th |
| Engine Displacement | 540 ci | 183 ci | +195% | 94th |
| Cylinders | 6 | 4 | +50% | 93rd |
| Forward Gears | 16 | 12 | +33% | 73rd |
| Operating Weight | 32,120 lb | 5,303 lb | +506% | 98th |
| Length | 276 in | 137 in | +102% | 98th |
| Height | 142 in | 94.1 in | +51% | 98th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 4,321–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland T9.390 | 354 hp | 42,000 lb | — | Compare → |
| New Holland 9484 | 310 hp | — | 2000–2001 | Compare → |
| New Holland 9684 | 301.3 hp | 30,795 lb | 2000–2001 | Compare → |
| New Holland T9.435 | 370 hp | 35,848 lb | — | Compare → |
| New Holland T9030 | 385 hp | 41,605 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH 9170 | 335 hp | — | — | Compare → |
| CaseIH 9270 | 335 hp | 34,045 lb | — | Compare → |
| CaseIH Magnum 335 | 330 hp | 21,350 lb | — | Compare → |
| CaseIH Magnum 340 | 340 hp | 28,230 lb | — | Compare → |
| CaseIH Magnum 315 | 347 hp | 27,800 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

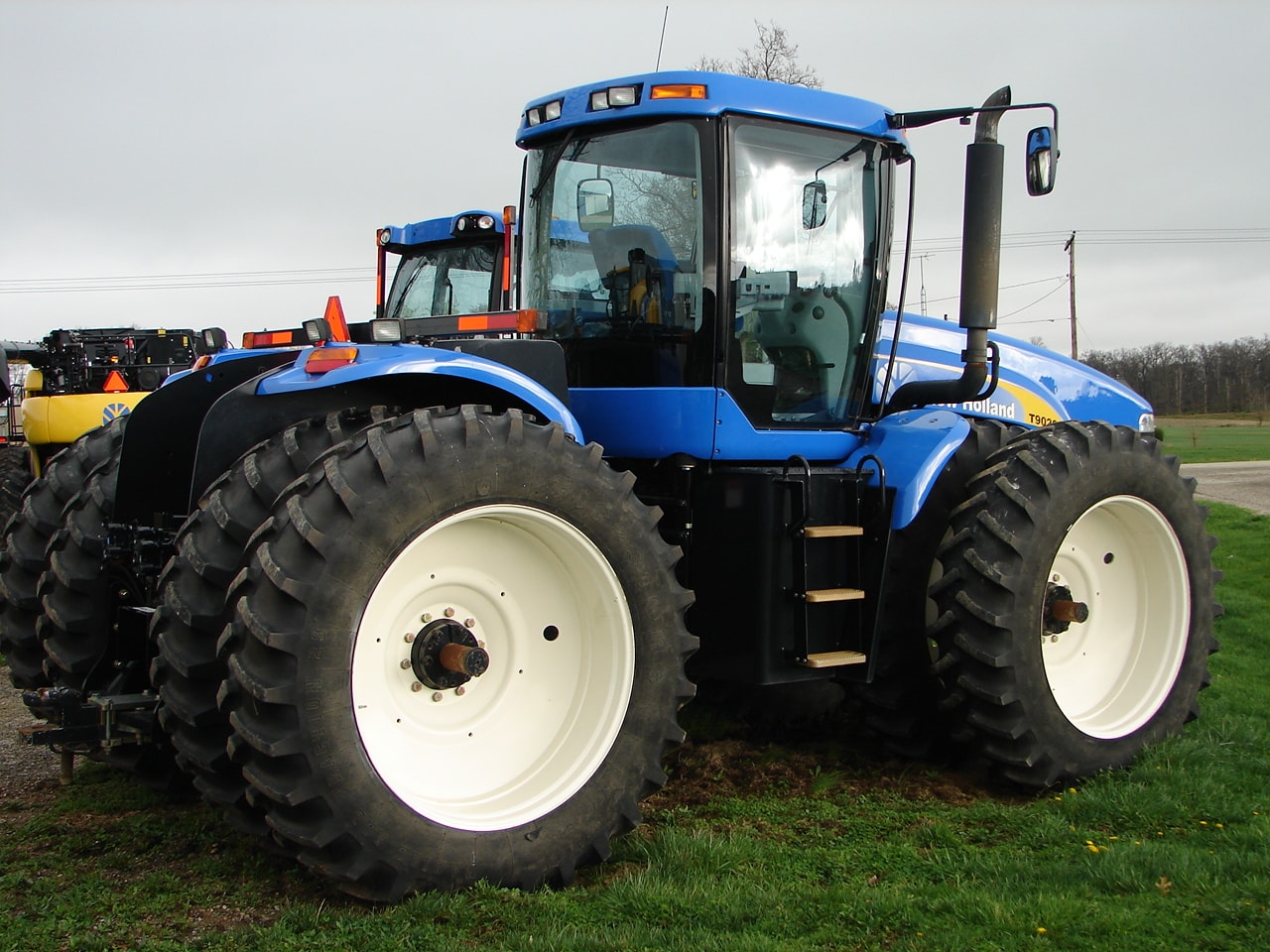

New Holland T9020 photos
FAQ
Common questions
How powerful is the New Holland T9020?
The New Holland T9020 has an engine power output of 335 hp. It is powered by a 6-cylinder engine displacing 540 ci.
What hitch category is the New Holland T9020?
The New Holland T9020 uses a Category III hitch.
What is the working weight of the New Holland T9020?
The operating weight of the New Holland T9020 is approximately 32,120 lb.
What type of hydraulic system does the New Holland T9020 use?
Hydraulics on the New Holland T9020 are Closed center load sensing (CCLS).
What routine service does the New Holland T9020 need?
Regular maintenance for the New Holland T9020 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
