UtilityPerformance profile
New Holland TN60A
The New Holland TN60A is a utility tractor made from 2004 to 2008. It has a 4x2 2WD drive type and a hydrostatic power steering system. The tractor is powered by an Iveco Diesel engine with 3 cylinders and 48.3 horsepower. This engine power is about average compared to other tractors. The TN60A has a constant mesh transmission with 8 forward and 8 reverse gears, giving farmers good control over speed. This tractor has a rear hitch with a lifting capacity of 3,955 pounds, which is very high compared to other tractors. It weighs 5,785 pounds, making it a mid-sized utility tractor. The TN60A comes with a ROPS (Roll-Over Protective Structure) for safety and uses wet disc brakes that work with hydraulics. It has a PTO (Power Take-Off) that spins at 540 rpm, useful for running farm tools. The hydraulic system can pump 13.7 gallons per minute, helping to power attachments quickly.
ManufacturerNew HollandPower48.3 hpEngine3-cylTransConstant mesh with mechanical shuttle
Quick specs
- Category
- Utility
- Engine Power Output
- 48hp
- Operating Weight
- 5,785 lb
- Transmission
- Constant mesh with mechanical shuttle
At a glance
How the TN60A compares
vs. Utility medianDistribution
Engine Power (hp)
Across all Utility tractors
48.3 hp · 43rd
This model
9
Median 55 hp
177
This modelUtility tractorsMediann = 5,383
The TN60A ranks at the 43rd percentile for engine power among recorded utility tractors.
Overview
About the New Holland TN60A
The New Holland TN60A is a utility tractor made from 2004 to 2008. It has a 4x2 2WD drive type and a hydrostatic power steering system. The tractor is powered by an Iveco Diesel engine with 3 cylinders and 48.3 horsepower. This engine power is about average compared to other tractors. The TN60A has a constant mesh transmission with 8 forward and 8 reverse gears, giving farmers good control over speed. This tractor has a rear hitch with a lifting capacity of 3,955 pounds, which is very high compared to other tractors. It weighs 5,785 pounds, making it a mid-sized utility tractor. The TN60A comes with a ROPS (Roll-Over Protective Structure) for safety and uses wet disc brakes that work with hydraulics. It has a PTO (Power Take-Off) that spins at 540 rpm, useful for running farm tools. The hydraulic system can pump 13.7 gallons per minute, helping to power attachments quickly.
Full specifications
Every recorded spec
General
| Manufacturer | New Holland |
|---|---|
| Model | TN60A |
| Category | Utility tractor |
| Type | 4x2 2WD |
| Years built | 2004–2008 |
| Operating weight | 5,785lb |
Engine
| Make | Iveco Diesel |
|---|---|
| Power | 48.3hp |
| Cylinders | 3 |
| Displacement | 179ci |
| Bore | 4.09in |
| Stroke | 4.53in |
Transmission
| Type | Constant mesh with mechanical shuttle |
|---|---|
| Forward gears | 8 |
| Reverse gears | 8 |
Chassis & drive
| Drive | 4x2 2WD |
|---|---|
| Steering | Hydrostatic power |
| Brakes | Wet disc hydraulically operated |
| Cab | ROPS |
Hydraulics
| Type | Direct engine drive |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Width | 66.9in |
|---|---|
| Height | 94.9in |
| Operating weight | 5,785lb |
Head to head
TN60A vs. Utility median
How the New Holland TN60A compares to other Utility tractors
| Spec | This model | Utility median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 48.3 hp | 55 hp | -12% | 43rd |
| Engine Displacement | 179 ci | 183 ci | -2% | 48th |
| Cylinders | 3 | 4 | -25% | 23rd |
| Forward Gears | 8 | 12 | -33% | 23rd |
| Operating Weight | 5,785 lb | 5,303 lb | +9% | 55th |
| Width | 66.9 in | 66 in | +1% | 52nd |
| Height | 94.9 in | 94.1 in | +1% | 51st |
| 3-Point Hitch Capacity | 3,955 lb | 3,197 lb | +24% | 64th |
Medians and percentiles are computed from the utility tractors in our database with a recorded value for each spec (sample sizes 1,083–5,720 models).
Compare to tractors with similar specs
Commonly compared New Holland tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| New Holland TN60DA | 48.3 hp | — | — | Compare → |
| New Holland Boomer 4055 | 48.01 hp | 4,685 lb | — | Compare → |
| New Holland TC48DA | 48 hp | 4,315 lb | 2003–2008 | Compare → |
| New Holland TT50A | 48 hp | 3,738 lb | 2007–2008 | Compare → |
| New Holland Workmaster 55 | 49.36 hp | 4,385 lb | 2009–2014 | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| Antonio Carraro Tigrone 5800 | 48 hp | 3,417 lb | — | Compare → |
| Antonio Carraro Tigrone Jona 5800 | 48 hp | — | — | Compare → |
| AGCO ST47A | 47.5 hp | 3,600 lb | — | Compare → |
| Allis Chalmers 5050 | 50 hp | 4,410 lb | 1977–1983 | Compare → |
| Allis Chalmers FD5 | 50 hp | 5,412 lb | — | Compare → |
Explore
New Holland siblings
Explore
Similar-spec models
Gallery

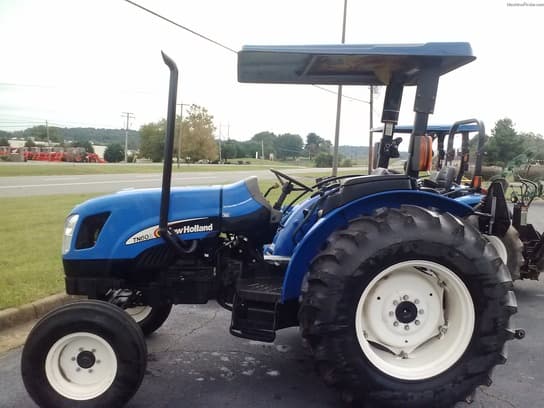

New Holland TN60A photos
FAQ
Common questions
When was the New Holland TN60A in production?
New Holland TN60A production started in 2004 and ended in 2008.
What transmission is in the New Holland TN60A?
Transmission on the New Holland TN60A is Constant mesh with mechanical shuttle, with 8 forward speeds.
What type of hydraulic system does the New Holland TN60A use?
Hydraulics on the New Holland TN60A are Direct engine drive.
What hitch category is the New Holland TN60A?
The New Holland TN60A uses a Category II/I hitch with a lift capacity of 3,955 lb.
How much horsepower does the New Holland TN60A have?
The New Holland TN60A produces 48.3 hp from its 3-cylinder engine. Engine displacement is 179 ci.
How much does the New Holland TN60A weigh?
The New Holland TN60A weighs about 5,785 lb in operating condition.
What maintenance does the New Holland TN60A require?
Like any tractor, the New Holland TN60A needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
