Same brandAgricultural tractorsSpec sheet
New Holland TS115
The New Holland TS115 is a powerful 4WD tractor made from 1998 to 2000. It has a strong 6-cylinder diesel engine that produces 100 horsepower. This engine is naturally aspirated and liquid-cooled, making it reliable for tough farm work. The TS115 comes with a comfortable cab for the driver. It has a 12-forward and 12-reverse gear transmission, giving farmers many options for different tasks. The tractor has a three-point hitch at the back that can lift up to 4,200 pounds. It also has two PTO speeds: 540 rpm and 1000 rpm. This makes it versatile for various farm equipment. The tractor is quite big, measuring 171.7 inches long, 79.1 inches wide, and 106.7 inches tall. It weighs 10,449 pounds, which helps it handle heavy jobs. This New Holland model has large agricultural tires, with 24-inch front tires and 34-inch rear tires. It was made in Basildon, England. The TS115 has power steering and an open center hydraulic system, making it easy to control and use with many attachments. Overall, the New Holland TS115 is a sturdy, versatile tractor built for serious farm work.
Key specifications
- Category
- Agricultural
- Engine power
- 100hp
- Operating weight
- 10,449 lb
Category comparison
TS115 compared with its category
vs. Agricultural medianDistribution
Engine Power (hp)
All recorded Agricultural tractors
100 hp · 44th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The TS115 ranks at the 44th percentile for engine power among recorded agricultural tractors.
Overview
About the New Holland TS115
The New Holland TS115 is a powerful 4WD tractor made from 1998 to 2000. It has a strong 6-cylinder diesel engine that produces 100 horsepower. This engine is naturally aspirated and liquid-cooled, making it reliable for tough farm work. The TS115 comes with a comfortable cab for the driver. It has a 12-forward and 12-reverse gear transmission, giving farmers many options for different tasks. The tractor has a three-point hitch at the back that can lift up to 4,200 pounds. It also has two PTO speeds: 540 rpm and 1000 rpm. This makes it versatile for various farm equipment. The tractor is quite big, measuring 171.7 inches long, 79.1 inches wide, and 106.7 inches tall. It weighs 10,449 pounds, which helps it handle heavy jobs. This New Holland model has large agricultural tires, with 24-inch front tires and 34-inch rear tires. It was made in Basildon, England. The TS115 has power steering and an open center hydraulic system, making it easy to control and use with many attachments. Overall, the New Holland TS115 is a sturdy, versatile tractor built for serious farm work.
Full specifications
Recorded specifications
General
| Manufacturer | New Holland |
|---|---|
| Model | TS115 |
| Category | Agricultural tractor |
| Type | 4x4 MFWD 4WD |
| Years built | 1998–2000 |
| Operating weight | 10,449lb(4,740 kg) |
Engine
| Make | New Holland |
|---|---|
| Power | 100hp(74.57 kW) |
| Cylinders | 6 |
| Displacement | 456ci(7.47 L) |
| Bore | 4.41in(112 mm) |
| Stroke | 5in(127 mm) |
Transmission
| Forward gears | 12 |
|---|---|
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x4 MFWD 4WD |
|---|---|
| Drive | 4WD |
| Steering | Power |
| Cab | Cab |
Hydraulics
| Type | Open center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 171.7in(4,361 mm) |
|---|---|
| Width | 79.1in(2,009 mm) |
| Height | 106.7in(2,710 mm) |
| Operating weight | 10,449lb(4,740 kg) |
Capacities
| Cooling system | 5.7gal(21.58 L) |
|---|
Closest alternatives
TS115 compared with the nearest models by horsepower
The closest agricultural models to the New Holland TS115 by rated horsepower are the CaseIH 5240 Maxxum and the Agco RT100a. The CaseIH 5240 Maxxum matches it on rated power and weighs 660 lb less. It entered production in 1992, 6 years before the TS115. The Agco RT100a matches it on rated power and weighs 600 lb more.
| Spec | New Holland TS115 | CaseIH 5240 Maxxum | Agco RT100a |
|---|---|---|---|
| Engine power | 100 hp74.6 kW | 100 hp74.6 kW | 100 hp74.6 kW |
| Operating weight | 10,449 lb4,740 kg | 9,787 lb4,439 kg | 11,052 lb5,013 kg |
| Weight per hp | 104 lb/hp64 kg/kW | 98 lb/hp60 kg/kW | 111 lb/hp67 kg/kW |
| Displacement | 456 ci7.47 L | 359 ci5.88 L | 402.8 ci6.6 L |
| Cylinders | 6 | 6 | 6 |
| Transmission | - | Synchronized | Auto Quadrashift |
| Drive | 4WD | 2WD | - |
| Years built | 1998-2000 | 1992-1997 | - |
Calculators
Calculators for the TS115
PTO power
About 83 to 90 PTO hp
Estimated from the 100 hp engine rating. The calculator also estimates drawbar power by surface.
Implement sizing
Implements a 100 hp tractor can run
Maximum size is about a 12 ft rotary cutter or a 10 ft tiller. The calculator also sizes discs, plows and balers.
Ballast
122 lb per PTO hp as listed
The calculator gives the target weight and front/rear split for each job.
Units
100 hp is 74.6 kW
The converter gives kW and metric PS values, as used on European spec sheets.
Parts and manuals
Parts and manuals for the New Holland TS115
Each link opens a retailer search keyed to the fields recorded for this model. Confirm fitment against the serial plate before ordering.
Filters
- Oil filter for the New HollandAmazon
Fits the New Holland 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Air filter for the New HollandAmazon
Fits the New Holland 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Fuel filter for the New HollandAmazon
Fits the New Holland 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
- Hydraulic filter for the New HollandAmazon
Fits the New Holland 6-cylinder diesel engine listed for this model. Confirm the part number against the engine serial plate.
Manuals
- New Holland TS115 service and repair manualseManualOnline
Digital manuals. Built 1998 to 2000. Check the serial number range on the listing.
- New Holland TS115 operator's manualAmazon
Printed and reprint manuals. Built 1998 to 2000. Check the serial number range on the listing.
- New Holland TS115 service manualAmazon
Shop and repair manuals for this model.
Links in this section go to retailers. A purchase through them earns this site a commission at no extra cost to the buyer. As an Amazon Associate, Heavy Equipment Specs earns from qualifying purchases. Affiliate disclosure
Category medians
TS115 vs. Agricultural median
New Holland TS115 compared with other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 100 hp | 110 hp | -9% | 44th |
| Engine Displacement | 456 ci | 336 ci | +36% | 82nd |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 12 | 16 | -25% | 33rd |
| Operating Weight | 10,449 lb | 10,914 lb | -4% | 48th |
| Length | 172 in | 173 in | -1% | 50th |
| Width | 79.1 in | 79.5 in | -1% | 49th |
| Height | 107 in | 111 in | -4% | 41st |
| 3-Point Hitch Capacity | 4,200 lb | 12,126 lb | -65% | 3rd |
Medians and percentiles are calculated from the agricultural tractors in the database that have a recorded value for each specification (sample size 93–1,130 models).
Same manufacturer
Other New Holland models
Other manufacturers
Models with similar horsepower
Gallery

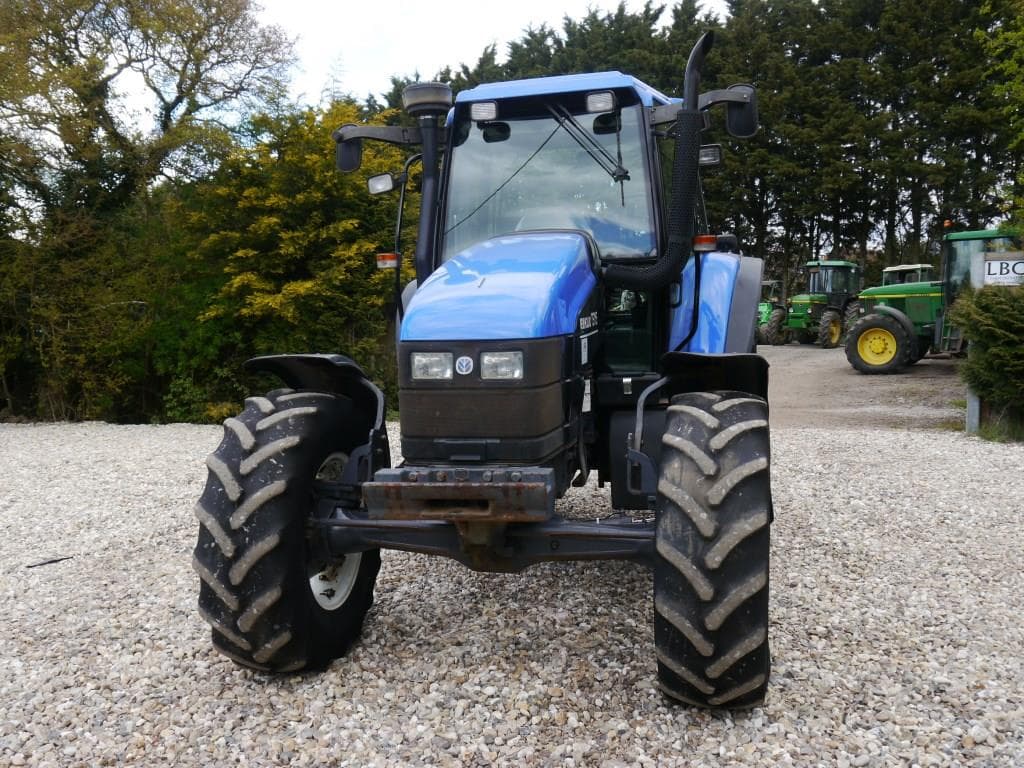

New Holland TS115 photos
FAQ
Frequently asked questions
What years was the New Holland TS115 manufactured?
Production of the New Holland TS115 ran from 1998 through 2000.
How powerful is the New Holland TS115?
The New Holland TS115 has an engine power output of 100 hp. It is powered by a 6-cylinder engine displacing 456 ci.
What is the working weight of the New Holland TS115?
The operating weight of the New Holland TS115 is approximately 10,449 lb.
What hydraulics does the New Holland TS115 have?
The New Holland TS115 uses an Open center hydraulic system.
What three-point hitch category does the New Holland TS115 use?
The New Holland TS115 has a Category II three-point hitch rated to lift 4,200 lb.
What routine service does the New Holland TS115 need?
Regular maintenance for the New Holland TS115 includes checking and changing engine oil, hydraulic fluid, and filters, plus routine inspections as recommended in the owner's manual. Always follow the manufacturer's maintenance schedule for specific intervals and procedures.
