AgriculturalPerformance profile

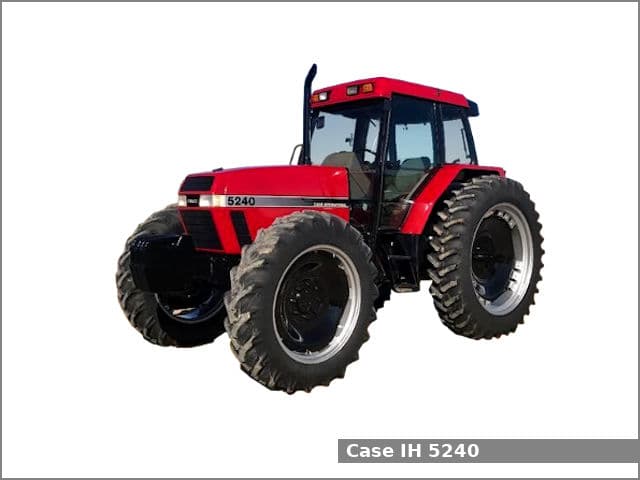

CaseIH 5240 Maxxum
The CaseIH 5240 Maxxum is a powerful 2WD tractor made from 1992 to 1997. It has a strong Cummins diesel engine with 6 cylinders and 100 horsepower. This tractor is great for farm work, with a turbocharged engine that runs at 2200 rpm. It has a synchronized transmission with 16 forward gears and 12 reverse gears, giving farmers lots of options for different tasks. This tractor is big and sturdy, measuring 170.6 inches long and 106.1 inches tall. It weighs 9787 pounds, which helps it handle tough jobs. The 5240 Maxxum has a Category II hitch that can lift up to 7695 pounds. It also has a versatile PTO system with both 540 and 1000 rpm speeds. The closed center hydraulic system and power steering make it easy to control. Farmers will appreciate the comfortable cab and the big 35.7-gallon fuel tank for long work days.
ManufacturerCaseIHPower100 hpEngine6-cylTransSynchronized
Quick specs
- Category
- Agricultural
- Engine Power Output
- 100hp
- Operating Weight
- 9,787 lb
- Transmission
- Synchronized
At a glance
How the 5240 Maxxum compares
vs. Agricultural medianDistribution
Engine Power (hp)
Across all Agricultural tractors
100 hp · 44th
This model
13
Median 110 hp
282
This modelAgricultural tractorsMediann = 1,028
The 5240 Maxxum ranks at the 44th percentile for engine power among recorded agricultural tractors.
Overview
About the CaseIH 5240 Maxxum
The CaseIH 5240 Maxxum is a powerful 2WD tractor made from 1992 to 1997. It has a strong Cummins diesel engine with 6 cylinders and 100 horsepower. This tractor is great for farm work, with a turbocharged engine that runs at 2200 rpm. It has a synchronized transmission with 16 forward gears and 12 reverse gears, giving farmers lots of options for different tasks. This tractor is big and sturdy, measuring 170.6 inches long and 106.1 inches tall. It weighs 9787 pounds, which helps it handle tough jobs. The 5240 Maxxum has a Category II hitch that can lift up to 7695 pounds. It also has a versatile PTO system with both 540 and 1000 rpm speeds. The closed center hydraulic system and power steering make it easy to control. Farmers will appreciate the comfortable cab and the big 35.7-gallon fuel tank for long work days.
Full specifications
Every recorded spec
General
| Manufacturer | CaseIH |
|---|---|
| Model | 5240 Maxxum |
| Category | Agricultural tractor |
| Type | 4x2 2WD |
| Years built | 1992–1997 |
| Operating weight | 9,787lb |
Engine
| Make | Cummins (CDC) |
|---|---|
| Power | 100hp |
| Cylinders | 6 |
| Displacement | 359ci |
| Bore | 4.02in |
| Stroke | 4.72in |
Transmission
| Type | Synchronized |
|---|---|
| Forward gears | 16 |
| Reverse gears | 12 |
Chassis & drive
| Chassis | 4x2 2WD |
|---|---|
| Drive | 2WD |
| Steering | Power |
| Cab | Cab |
Hydraulics
| Type | Closed center |
|---|
Power take-off
| Rear PTO | Independent |
|---|---|
| PTO speed | 540rpm |
Dimensions
| Length | 170.6in |
|---|---|
| Height | 106.1in |
| Operating weight | 9,787lb |
Head to head
5240 Maxxum vs. Agricultural median
How the CaseIH 5240 Maxxum compares to other Agricultural tractors
| Spec | This model | Agricultural median | Difference | Percentile |
|---|---|---|---|---|
| Engine Power | 100 hp | 110 hp | -9% | 44th |
| Engine Displacement | 359 ci | 336 ci | +7% | 55th |
| Cylinders | 6 | 5.5 | +9% | 74th |
| Forward Gears | 16 | 16 | at median | 50th |
| Operating Weight | 9,787 lb | 10,914 lb | -10% | 43rd |
| Length | 171 in | 173 in | -1% | 49th |
| Height | 106 in | 111 in | -4% | 39th |
| 3-Point Hitch Capacity | 7,695 lb | 12,126 lb | -37% | 27th |
Medians and percentiles are computed from the agricultural tractors in our database with a recorded value for each spec (sample sizes 93–1,130 models).
Compare to tractors with similar specs
Commonly compared CaseIH tractors
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| CaseIH MX100 Maxxum | 100 hp | — | — | Compare → |
| CaseIH Farmall 100N | 98 hp | — | — | Compare → |
| CaseIH 1056 XL | 105 hp | 9,634 lb | — | Compare → |
| CaseIH 956 XL | 95 hp | 9,458 lb | — | Compare → |
| CaseIH Farmall 95N | 95 hp | 5,820 lb | — | Compare → |
Commonly compared tractors with similar horsepower from other brands
| Tractor | Engine Power | Operating Weight | Years | Compare |
|---|---|---|---|---|
| AGCO LT75A | 100 hp | 8,820 lb | — | Compare → |
| Agco RT100a | 100 hp | 11,051.8 lb | — | Compare → |
| Belarus 1005 | 100 hp | 8,874 lb | — | Compare → |
| Belarus 1025 | 100 hp | 9,144 lb | — | Compare → |
| Agrinar T-100 | 97.9 hp | 3,850 lb | — | Compare → |
Explore
CaseIH siblings
Explore
Similar-spec models
Gallery
CaseIH 5240 Maxxum photos
FAQ
Common questions
When was the CaseIH 5240 Maxxum in production?
CaseIH 5240 Maxxum production started in 1992 and ended in 1997.
What hydraulics does the CaseIH 5240 Maxxum have?
The CaseIH 5240 Maxxum uses a Closed center hydraulic system.
What three-point hitch category does the CaseIH 5240 Maxxum use?
The CaseIH 5240 Maxxum has a Category II three-point hitch rated to lift 7,695 lb.
How much horsepower does the CaseIH 5240 Maxxum have?
The CaseIH 5240 Maxxum produces 100 hp from its 6-cylinder engine. Engine displacement is 359 ci.
How much does the CaseIH 5240 Maxxum weigh?
The CaseIH 5240 Maxxum weighs about 9,787 lb in operating condition.
What transmission is in the CaseIH 5240 Maxxum?
Transmission on the CaseIH 5240 Maxxum is Synchronized, with 16 forward speeds.
What maintenance does the CaseIH 5240 Maxxum require?
Like any tractor, the CaseIH 5240 Maxxum needs periodic engine oil and filter changes, hydraulic fluid checks, and regular greasing and inspection. The owner's manual lists the manufacturer's recommended service intervals.
